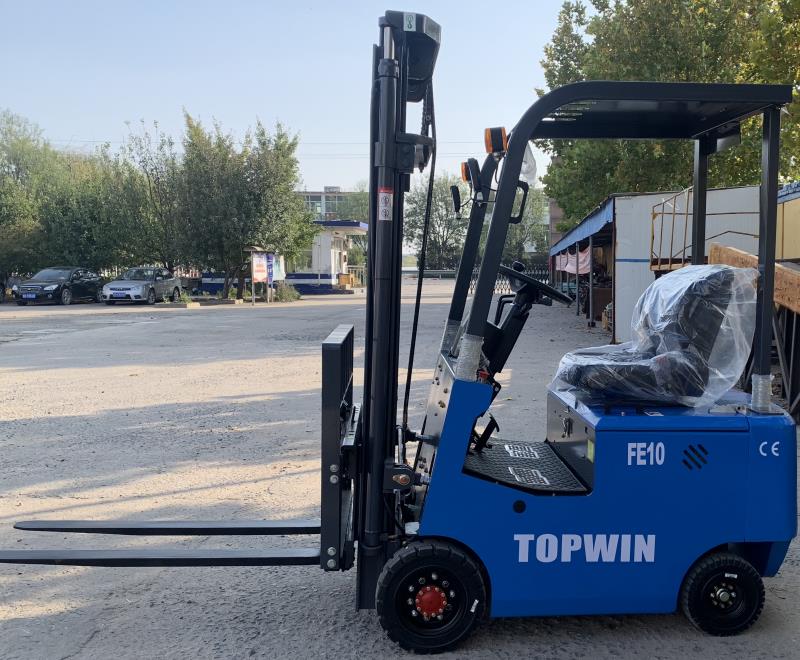

1 Ton Electric Forklift
Rated Capacity: 1000KG
Power Mode: Lead-Acid Battery
Tyre Model: Solid Tyre
Whole Weight: 1650kg
Max speed without goods: 250mm/s
Low Energy Consumption, Low Noise And Zero Emission,
The Use Cost Is Only 20% Of The Fuel Forklift.
Product Details
1. The Car Type Electrical Stacker Can Highly Reduce The Working Intensity.
2. The Handel Adopts Ergonomic Design. All Operations Can Be Done Through The Handle.
3. The Large Capacity Traction Battery Is Durable, And Can Be Recharged Conveniently And Rapidly.
4. The Superpowered Driving And Lifting Dc Motor Has Good Performance Of Speed Regulation, And It Can Realize Large Starting And Breaking Torque Function.
5. C Type Forming Steel Door Frame Will Ensure Steady While Working.
| Model | FE10 | |
| Power type | Battery | |
| Rated load | 1000kg | |
| Load center distance | 400mm | |
| Driving type | seat | |
| Length | With fork | 2592mm |
| Without fork | 1652mm | |
| Whole Width | 940mm | |
| Height | Mast lowered height | 2040mm |
| Overhead guard height | 1950mm | |
| Max working Height | 3820mm | |
| Distance from seat to top light | 970mm | |
| Wheel base | 1020mm | |
| Front overhang | 327mm | |
| Back overhang | 3130mm | |
| Front wheel tread | 840mm | |
| Back wheel tread | 741mm | |
| Min Floor clearance | 90mm | |
| Max lifting height | 3000mm | |
| Free lifting height | 0mm | |
| Fork changing | 820/190 | |
| Min Turning radius | 1800 | |
| Min Right angle aisle width | 2000 | |
| Tilt angle a/β | 6°/12° | |
| Max lifting speed without goods | 250mm/s | |
| Max lifting speed with full goods | 220mm/s | |
| Max speed without goods | 12km/h | |
| Max speed with full goods | 11km/h | |
| Max climbing angle | ≤10 | |
| Whole weight | 1650kg | |
| Driving Wheel | 2x/2 | |
| Tyre model | Solid tyre | |
| Front Tyre | 15x4 1/2-8 | |
| Rear Tyre | 3.50-5 | |
| Hand Brake | Hydraulic Pedal | |
| Brake type | M-Hand | |
| Battery Volt/ capacity | 2X24V/160 | |
| Driving motor power | 4.0AC | |
| pump power | 4.0DC | |
Details
| General | Model | FD25 | |
| Rated capacity | kg | 2500 | |
| Load center | mm | 500 | |
| Power type | Diesel | ||
| Transmission | Hydraulic/Mechanical | ||
| Dimensions | Lifting height | mm | 3000 |
| Free lifting height | mm | 60 | |
| Turning radius | mm | 2450 | |
| Overall length | mm | 3605 | |
| Overall width | mm | 1160 | |
| Overall height (mast lowered) | mm | 2095 | |
| Overall height (mast raised) | mm | 4080 | |
| Overall height (overhead guard) | mm | 2095 | |
| Fork length | mm | 1070 | |
| Fork width | mm | 122 | |
| Fork thickness | mm | 40 | |
| Performance | Max. driving speed (with/without load) | km/h | 17/19 |
| Max. lifting speed (with load) | mm/s | 400 | |
| Max. traction (with/without load) | kn | 15/10 | |
| Gradeability (with/without load) | % | 15/20 | |
| Tilting angles (forward/backward) | ° | 6/12 | |
| Service weight | kg | 3600 | |
| Engine | Engine model | 490BPG | |
| Power | kw | 37 | |
| Rated speed | rpm | 2500 | |
| Wheel | Front overhang | mm | 451 |
| Wheel base | mm | 1640 | |
| Front tread | mm | 970 | |
| Rear tread | mm | 970 | |
| Front tire | 7.00-12 | ||
| Rear tire | 6.00-9 |
