1000kg Mini Digger For Sale
Machine weight: 920kg
Make /Model :cKOOP( KD192F-1)
Emission Standard:cTier 3/ Stage III
Standard Bucket capacity:c0.023m³
Product Details
·

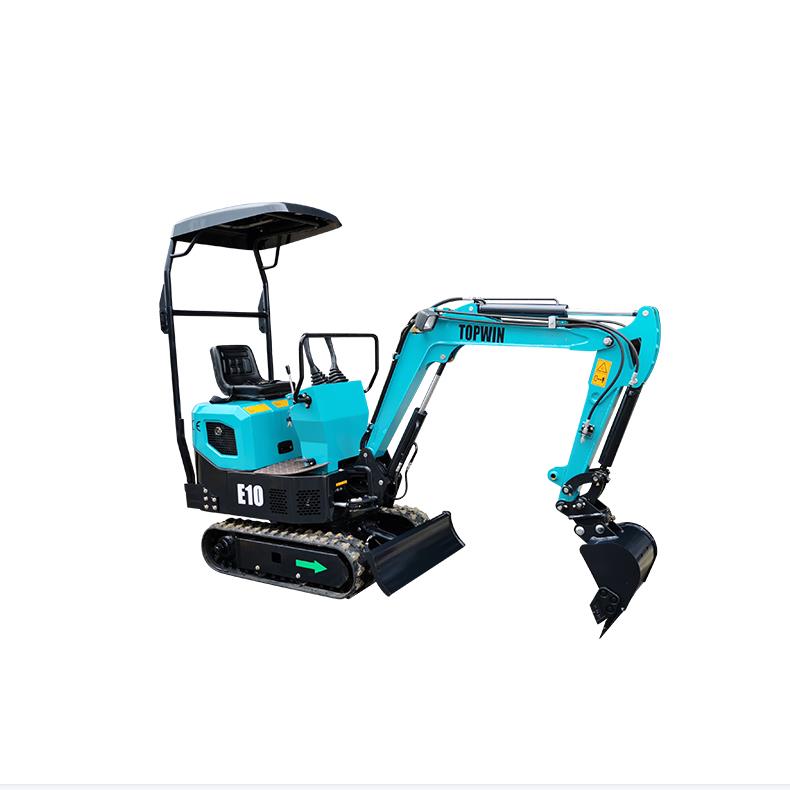

TOPWIN E10 With 120° Deflection Boom, 30° Left And 90° Right.
2. The Aggressive Rate That Makes You Scream!
3. The Look Is Designed By Means Of The Italian Designer.
4. Increase Air Outlet, Enhance The Warmness Dissipation Capacity.
5. Optional Extension Track.
6. The Authentic Weight Can Be 1.1 Ton.
7. Using S355 Metal Fabric Which Is Correct Metal Plate Strength.
| Model | TWE10 |
| ENGINE | |
| Emission Standard | Tier 3/ Stage III |
| Make /Model | KOOP( KD192F-1) |
| Power /Rotation speed | 7kw/3000rpm |
| Number of cylinder | 1 |
| TRACK SYSTEM | |
| Maximum Travel speed | 1.9km/h |
| Width of track shoe(Rubber &steel track) | 180mm |
| Number of track shoe per side(steel track only) | |
| Number of upper roller per side | 0 |
| Number of bottom roller per side | 2 |
| PERFORMANCE PARAMETER | |
| Standard Bucket capacity | 0.023m³ |
| Swing speed | 13 r/min |
| Maximum Grade ability | 58%(30°) |
| Maximum Bucket digging force | 7.2 KN |
| Maximum Arm digging force | 4.6 KN |
| Hydraulic system pressure | 16MPa |
| Machine weight | 920kg |
| MACHINE SIZE | |
| Overall dimension (L*W*H) | 2840mm*880mm*2220mm |
| Axle base/Track length on ground | 1233mm |
| Track gauge | 660mm |
| Minimum Ground clearance | 132mm |
| Swing radius at tail | 800mm |
| WORKING RANGE | |
| Maximum Digging height | 2600mm |
| Maximum Dumping height | 1830mm |
| Maximum Digging depth | 1715mm |
| Maximum Vertical digging depth | 1590mm |
| Maximum Digging radius | 3065mm |
| Minimum swing radius | 1480mm |
| Maximum Lifting height of blade | |
| Maximum Cutting depth of blade | |
| Boom swing angle(Left/Right) | |
| Shipping method | 6 units in 20GP container 24units in 40GP container |
| Model | TWE10 |
| ENGINE | |
| Emission Standard | Tier 3/ Stage III |
| Make /Model | KOOP( KD192F-1) |
| Power /Rotation speed | 7kw/3000rpm |
| Number of cylinder | 1 |
| TRACK SYSTEM | |
| Maximum Travel speed | 1.9km/h |
| Width of track shoe(Rubber &steel track) | 180mm |
| Number of track shoe per side(steel track only) | |
| Number of upper roller per side | 0 |
| Number of bottom roller per side | 2 |
| PERFORMANCE PARAMETER | |
| Standard Bucket capacity | 0.023m³ |
| Swing speed | 13 r/min |
| Maximum Grade ability | 58%(30°) |
| Maximum Bucket digging force | 7.2 KN |
| Maximum Arm digging force | 4.6 KN |
| Hydraulic system pressure | 16MPa |
| Machine weight | 920kg |
| MACHINE SIZE | |
| Overall dimension (L*W*H) | 2840mm*880mm*2220mm |
| Axle base/Track length on ground | 1233mm |
| Track gauge | 660mm |
| Minimum Ground clearance | 132mm |
| Swing radius at tail | 800mm |
| WORKING RANGE | |
| Maximum Digging height | 2600mm |
| Maximum Dumping height | 1830mm |
| Maximum Digging depth | 1715mm |
| Maximum Vertical digging depth | 1590mm |
| Maximum Digging radius | 3065mm |
| Minimum swing radius | 1480mm |
| Maximum Lifting height of blade | |
| Maximum Cutting depth of blade | |
| Boom swing angle(Left/Right) | |
| Shipping method | 6 units in 20GP container 24units in 40GP container |
