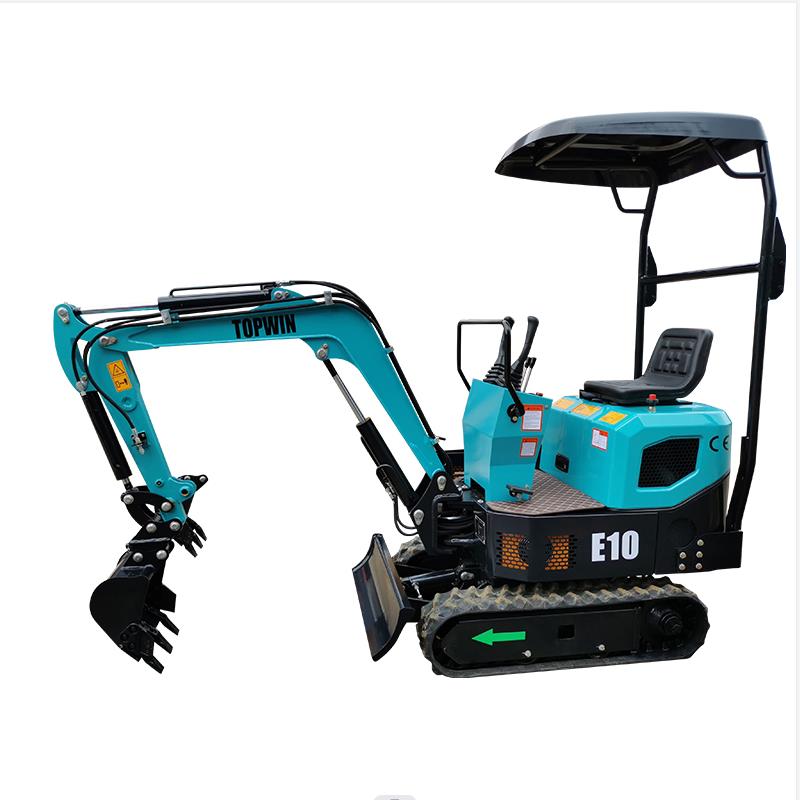

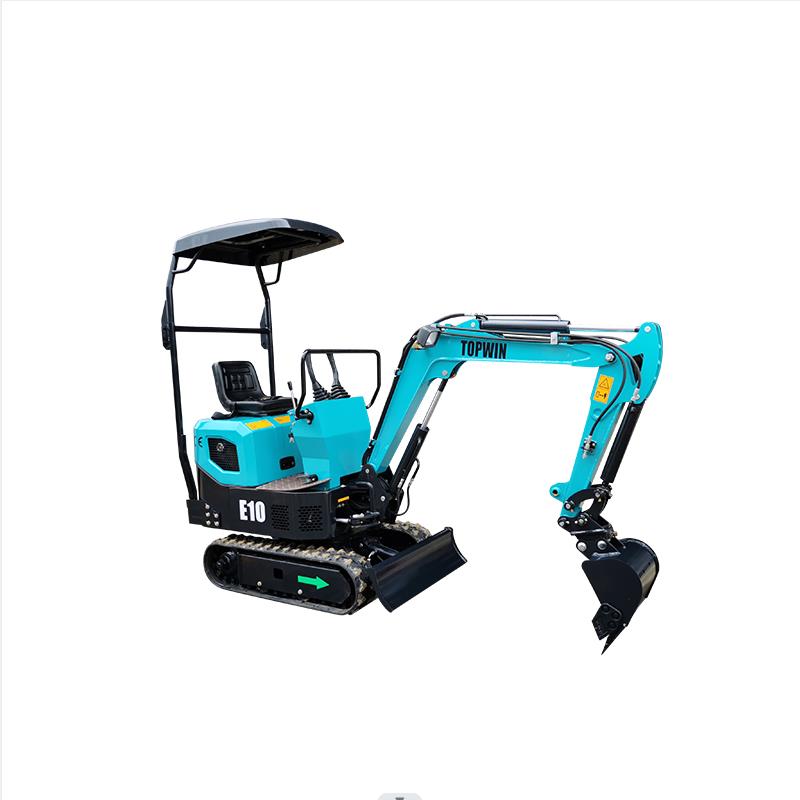

1000KG Mini Excavator With Quick Hitch And Rake
1. Optional Yanmar (Epa Certified) / Changchai / Laidong Engines, To Meet Environmental Protection, Fee Manipulate And Different Needs.
2. It Adopts The First-Line Manufacturer High-Precision 8-Way Multi-Way Valve. The Valve Core Has Its Personal Buffer Feature And Is Managed By Means Of Ecu Computer, Which Makes The Motion Extra Flexible.
1.1.3 Tons, 1.5 Tons, 1.6 Tons, 1.8 Tons, Two Tons, Three Lots Can Be Outfitted With Excessive Precision Pilot Manage System.
2. Adopting Japan Nachi / American Eton Hydraulic Motor, Small Size, Mild Weight, Excessive Effectivity And Lengthy Provider Life.
3. Use Shimadzu Equipment Pump / Doosan Load Touchy Variable Displacement Piston Pump For Non-Stop Operation For Up To Eight Hours.
4. The Growth Can Swing From Facet To Facet With Excessive Flexibility To Meet The Wants Of Small House Operations.
Model | TWE10 |
ENGINE | |
Emission Standard | Tier 3/ Stage III |
Make /Model | KOOP( KD192F-1) |
Power /Rotation speed | 7kw/3000rpm |
Number of cylinder | 1 |
TRACK SYSTEM | |
Maximum Travel speed | 1.9km/h |
Width of track shoe(Rubber &steel track) | 180mm |
Number of track shoe per side(steel track only) | |
Number of upper roller per side | 0 |
Number of bottom roller per side | 2 |
PERFORMANCE PARAMETER | |
Standard Bucket capacity | 0.023m³ |
Swing speed | 13 r/min |
Maximum Grade ability | 58%(30°) |
Maximum Bucket digging force | 7.2 KN |
Maximum Arm digging force | 4.6 KN |
Hydraulic system pressure | 16MPa |
Machine weight | 920kg |
MACHINE SIZE | |
Overall dimension (L*W*H) | 2840mm*880mm*2220mm |
Axle base/Track length on ground | 1233mm |
Track gauge | 660mm |
Minimum Ground clearance | 132mm |
Swing radius at tail | 800mm |
WORKING RANGE | |
Maximum Digging height | 2600mm |
Maximum Dumping height | 1830mm |
Maximum Digging depth | 1715mm |
Maximum Vertical digging depth | 1590mm |
Maximum Digging radius | 3065mm |
Minimum swing radius | 1480mm |
Maximum Lifting height of blade | |
Maximum Cutting depth of blade | |
Boom swing angle(Left/Right) | |
Shipping method | 6 units in 20GP container |
