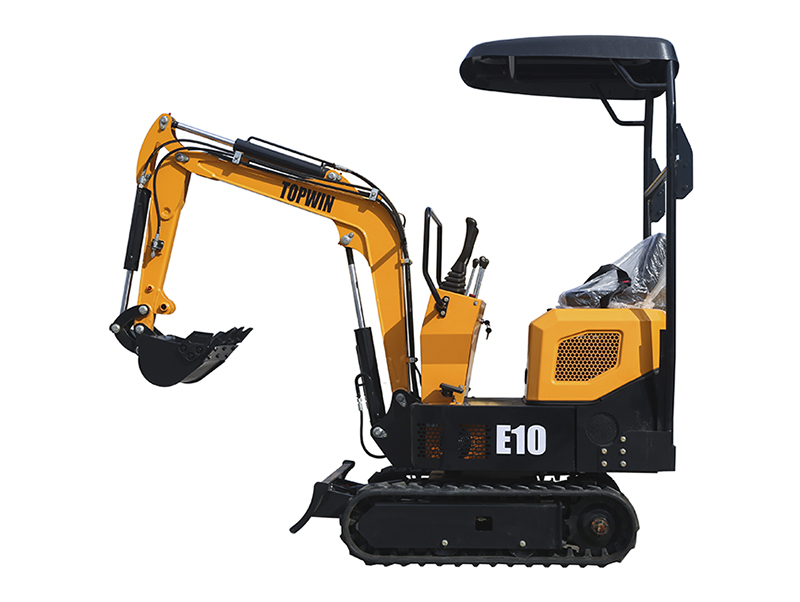

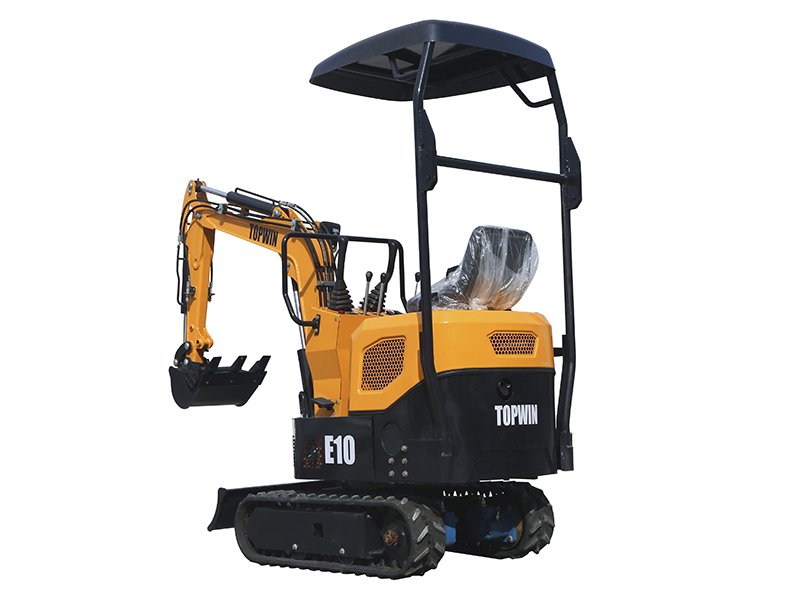

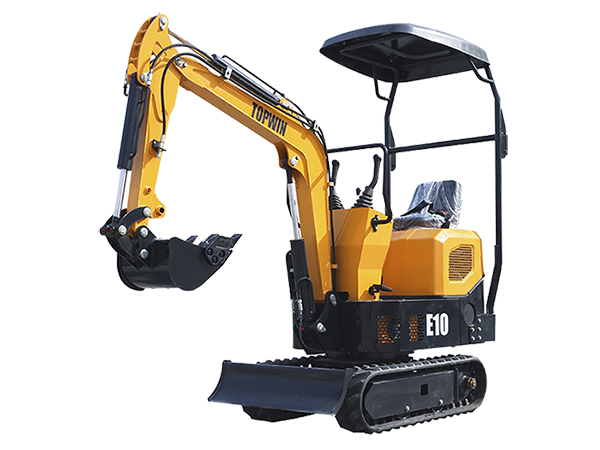

E10 Mini Excavator
Support multi-function operations,
Quick attachment of accessories,
Excavation, crushing, trench clearing, drilling, and bulldozing;
Mini excavator can increase the cab and air conditioning! ! !
Advantages of the mini excavator: support multi-function operations, quick attachment of accessories, excavation, crushing, trench clearing, drilling, and bulldozing;
Warranty period: within one year/2000 working hours after delivery, if there is any quality problem, we will provide you with accessories for free.
The latest configuration announcement: Mini excavator can increase the cab and air conditioning! ! !
Provide customized services, your exclusive purchase, personalized purchase, you are different from others!
Model | TWE10 |
ENGINE | |
Emission Standard | Tier 3/ Stage III |
Make /Model | KOOP( KD192F-1) |
Power /Rotation speed | 7kw/3000rpm |
Number of cylinder | 1 |
TRACK SYSTEM | |
Maximum Travel speed | 1.9km/h |
Width of track shoe(Rubber &steel track) | 180mm |
Number of track shoe per side(steel track only) | |
Number of upper roller per side | 0 |
Number of bottom roller per side | 2 |
PERFORMANCE PARAMETER | |
Standard Bucket capacity | 0.023m³ |
Swing speed | 13 r/min |
Maximum Grade ability | 58%(30°) |
Maximum Bucket digging force | 7.2 KN |
Maximum Arm digging force | 4.6 KN |
Hydraulic system pressure | 16MPa |
Machine weight | 920kg |
MACHINE SIZE | |
Overall dimension (L*W*H) | 2840mm*880mm*2220mm |
Axle base/Track length on ground | 1233mm |
Track gauge | 660mm |
Minimum Ground clearance | 132mm |
Swing radius at tail | 800mm |
WORKING RANGE | |
Maximum Digging height | 2600mm |
Maximum Dumping height | 1830mm |
Maximum Digging depth | 1715mm |
Maximum Vertical digging depth | 1590mm |
Maximum Digging radius | 3065mm |
Minimum swing radius | 1480mm |
Maximum Lifting height of blade | |
Maximum Cutting depth of blade | |
Boom swing angle(Left/Right) | |
Shipping method | 6 units in 20GP container |
