Small Household Excavator For Sale
Excavators With Compact Dimensions Can Without Problems Pressure Via Slim Passages And Doors.
Retractable Undercarriage And Dozer Blade Enable The Excavators To Be Configured For High-Quality Working Steadiness And Highest Quality Performance.
Product Details
Powerful Engine And Flawlessly Matched Hydraulics Supply Efficient, Within Your Means And Dependable Overall Performance For The Hardest Of Jobs.
Bucket Hoses Are Properly Covered Inside Protected Within The Boom And The Cylinder Is Mounted Above The Structure.
The Operator Region Is Spacious And Laid Out To Grant Relief And Ease Of Operation.

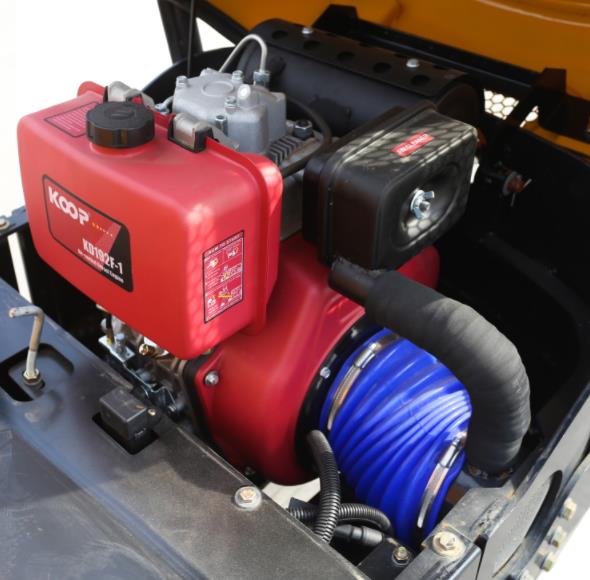

Excellent Engine Offers Top Notch Strength With Minimal Gas Use For Greater Productiveness Per Tank.
| Model | TWE10 |
| ENGINE | |
| Emission Standard | Tier 3/ Stage III |
| Make /Model | KOOP( KD192F-1) |
| Power /Rotation speed | 7kw/3000rpm |
| Number of cylinder | 1 |
| TRACK SYSTEM | |
| Maximum Travel speed | 1.9km/h |
| Width of track shoe(Rubber &steel track) | 180mm |
| Number of track shoe per side(steel track only) | |
| Number of upper roller per side | 0 |
| Number of bottom roller per side | 2 |
| PERFORMANCE PARAMETER | |
| Standard Bucket capacity | 0.023m³ |
| Swing speed | 13 r/min |
| Maximum Grade ability | 58%(30°) |
| Maximum Bucket digging force | 7.2 KN |
| Maximum Arm digging force | 4.6 KN |
| Hydraulic system pressure | 16MPa |
| Machine weight | 920kg |
| MACHINE SIZE | |
| Overall dimension (L*W*H) | 2840mm*880mm*2220mm |
| Axle base/Track length on ground | 1233mm |
| Track gauge | 660mm |
| Minimum Ground clearance | 132mm |
| Swing radius at tail | 800mm |
| WORKING RANGE | |
| Maximum Digging height | 2600mm |
| Maximum Dumping height | 1830mm |
| Maximum Digging depth | 1715mm |
| Maximum Vertical digging depth | 1590mm |
| Maximum Digging radius | 3065mm |
| Minimum swing radius | 1480mm |
| Maximum Lifting height of blade | |
| Maximum Cutting depth of blade | |
| Boom swing angle(Left/Right) | |

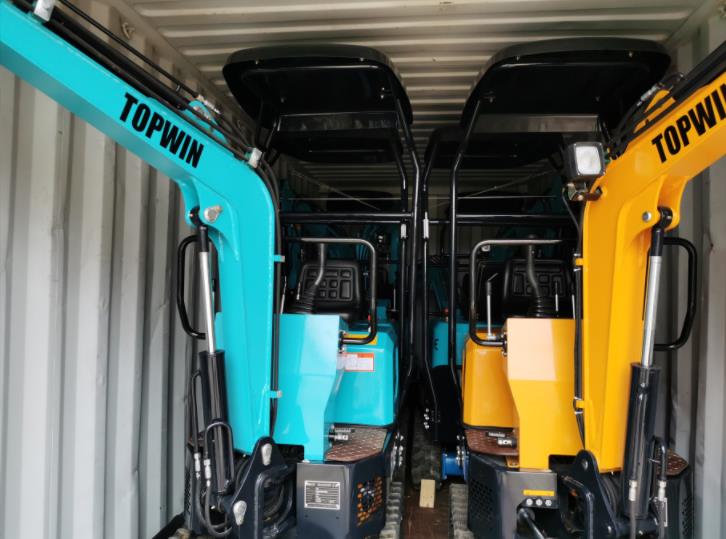

| Shipping method | 6 units in 20GP container 24units in 40GP container |
| Model | TWE10 |
| ENGINE | |
| Emission Standard | Tier 3/ Stage III |
| Make /Model | KOOP( KD192F-1) |
| Power /Rotation speed | 7kw/3000rpm |
| Number of cylinder | 1 |
| TRACK SYSTEM | |
| Maximum Travel speed | 1.9km/h |
| Width of track shoe(Rubber &steel track) | 180mm |
| Number of track shoe per side(steel track only) | |
| Number of upper roller per side | 0 |
| Number of bottom roller per side | 2 |
| PERFORMANCE PARAMETER | |
| Standard Bucket capacity | 0.023m³ |
| Swing speed | 13 r/min |
| Maximum Grade ability | 58%(30°) |
| Maximum Bucket digging force | 7.2 KN |
| Maximum Arm digging force | 4.6 KN |
| Hydraulic system pressure | 16MPa |
| Machine weight | 920kg |
| MACHINE SIZE | |
| Overall dimension (L*W*H) | 2840mm*880mm*2220mm |
| Axle base/Track length on ground | 1233mm |
| Track gauge | 660mm |
| Minimum Ground clearance | 132mm |
| Swing radius at tail | 800mm |
| WORKING RANGE | |
| Maximum Digging height | 2600mm |
| Maximum Dumping height | 1830mm |
| Maximum Digging depth | 1715mm |
| Maximum Vertical digging depth | 1590mm |
| Maximum Digging radius | 3065mm |
| Minimum swing radius | 1480mm |
| Maximum Lifting height of blade | |
| Maximum Cutting depth of blade | |
| Boom swing angle(Left/Right) | |
| Shipping method | 6 units in 20GP container 24units in 40GP container |
