10 Ton Forklift
4.5m Mast 10 Ton Heavy Forklift with Side Shift
Product Description
1. High Quality
2. Competitive Price
3. Fast Delivery
1. Engine: Yuchai Engine, Sturdy Power, Power Conservation And Environmental Protection.
2. Steering System: Undertake Transverse Oil Cylinder Kind Guidance Bridge, Full-Hydraulic Steering, Bendy And Light, Reliable.
3. Transmission & Torque Converter: Imported Technology, Dependable Performance, Handy Maintenance, Easy Transmission, And Handy Operation.
4. Braking System: Use Mature Product From Expert Manufacturer, Disc Brakes, Warmness Dissipation Faster, Light, Easy Shape And Convenient To Adjust. Especially Have Very Properly Thermostability Overall Performance When Heavy Loaded, Braking Impact Stable.
5. Explosion Proof Protection Valve For Pipeline: Keep Away From The Pipeline Bursting Suddenly,Ensure Machine Working Protection And Reliability.
6. Control System: Pilot Valve Manage System To Make The Work Effectivity And Minimize Drivers' Labor Intensity.
7. Cooling System: Undertake Impartial Transmission Oil And Hydraulic Oil Cooling,Increasing Gadget Stability
8. Frame Structure: Exquisite Workmanship &Firm Box-Type Frame, Enhance The Transverse, Longitudinal Steadiness Of Vehicles.The Car Get Via The 3D Finite Component Analysis, Finest Structure, Dependable Quality; The Predominant Welding Components Thru The Nondestructive Testing, Advantageous Coordination With The Strengthened Structure,Bridge,Box.
9. Fork: Wellknown With Hydraulic Fork Positioner, Handy Operation And Limit Drivers' Labor Intensity.
10. Mast: Box-Type Internal-External Mast, Exceptional All-Round Curler Bearings, Expand Lifting Performance.
| Model | CPCD100 | |
| Rated Lifting Load | kg | 10000 |
| Load Center Distance | mm | 600 |
| Free lifting Height | mm | 200 |
| Overall Length(With Fork/Without Fork) | mm | 5497/4277 |
| Width | mm | 2245 |
| Overhead Guard Height | mm | 2570 |
| Wheelbase | mm | 2800 |
| Minimum Ground Clearance | mm | 250 |
| Mast Tilt Angle(Front/Rear) | % | 10/12 |
| Tire No(Front ) | 9.00-20NHS | |
| Tire No(Rear) | 9.00-20NHS | |
| Minimum Turning Radius(Outside) | mm | 4150 |
| Minimum Right Angle Aisle Width | mm | 6010 |
| Fork Size | mm | 1520X175X85 |
| Maxmum Working Speed(Full-Load/No Load) | km/h | 20/26 |
| Maxmum Speed Speed(Full-Load/No Load) | mm/s | 330/350 |
| Maximum Gradeability (Full-Load/No Load) | % | 15/20 |
| Total Weight | kg | 12410 |
| Engine | Quanchai 4J1,85KW | |
| Type Of Power Shift | Hydraulic Transmission/Automatic |
Optional Configuration
Cab With Fan,Heater In The Cab,Solid Tires,High-Grade Seat, Tilting And Lifting Cylinder Sleeve,Dual Air Filter, Oil Type Air Filter, Fire Extinguisher Bottle,Fire Cover,Eur Ii Uk Perkins 1104D-44Ta Engine,Japan Isuzu
6Bg1-02 Engine, Special Mast,3-Stage Mast With Full-Free Lift,Lengthen Fork.

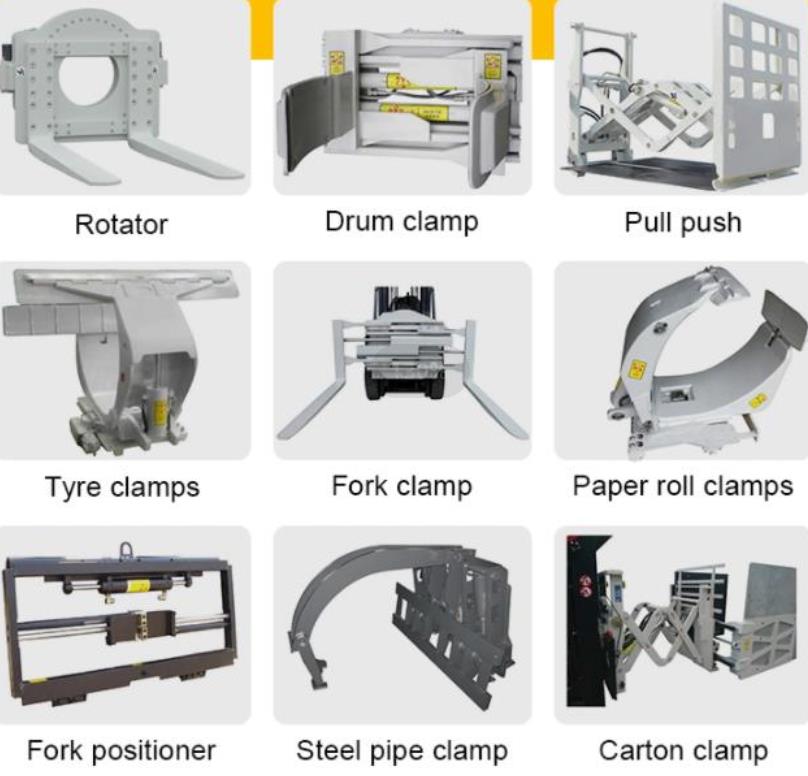

Optional Attachments
Side Shifter,Fork Positioner, Side Shift And Fork Positioner, Bale Clamps,Paper Roll Clamps,Flat Bag Clamps, Carton Clamps,Block Clamps,Rotator, Rotating Clamps,Hinged Fork,Sanitation Fork,Bucket, Load Stabilizers,
Single Double Pallets Handlers, Log Holder,Tyre Clamps, Push/Pull,Fertilizer Throw-Out,Drum Clamps,Carpet Boom,Cargo Boom.
| Model | CPCD100 | |
| Rated Lifting Load | kg | 10000 |
| Load Center Distance | mm | 600 |
| Free lifting Height | mm | 200 |
| Overall Length(With Fork/Without Fork) | mm | 5497/4277 |
| Width | mm | 2245 |
| Overhead Guard Height | mm | 2570 |
| Wheelbase | mm | 2800 |
| Minimum Ground Clearance | mm | 250 |
| Mast Tilt Angle(Front/Rear) | % | 10/12 |
| Tire No(Front ) | 9.00-20NHS | |
| Tire No(Rear) | 9.00-20NHS | |
| Minimum Turning Radius(Outside) | mm | 4150 |
| Minimum Right Angle Aisle Width | mm | 6010 |
| Fork Size | mm | 1520X175X85 |
| Maxmum Working Speed(Full-Load/No Load) | km/h | 20/26 |
| Maxmum Speed Speed(Full-Load/No Load) | mm/s | 330/350 |
| Maximum Gradeability (Full-Load/No Load) | % | 15/20 |
| Total Weight | kg | 12410 |
| Engine | Quanchai 4J1,85KW | |
| Type Of Power Shift | Hydraulic Transmission/Automatic |
