10 Ton Forklift And Truck

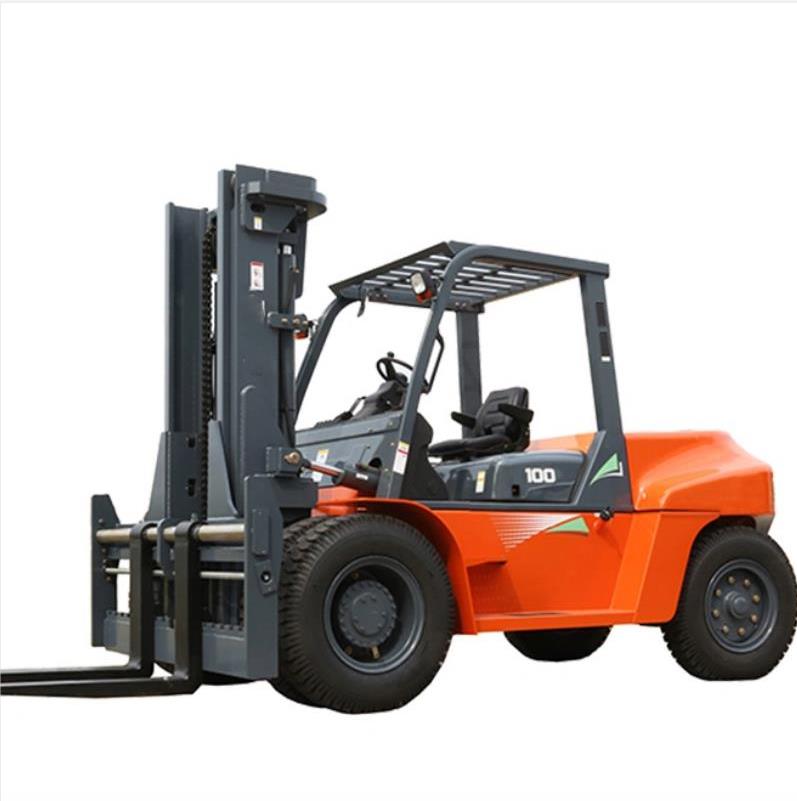

Mast 10 Ton Heavy Forklift with Side Shift
Load Capacity:10.0 Ton
Lifting Height:3000mm-6000mm
Mast Type: 2 Stage Mast
Heavy Duty 10ton Forklift
Details Of 10ton Forklift Machine Price Fd100:
Japan Mitsubishi Engine;
Japan Shimadzu Hydraulic System(Including Pumps And Valves And Oil Pipes);
2-Stage 3m Mast;
With Side Shifter
Electric Hydraulic Automatic Transmission Via Tcm Technology;
Lamp Protection;
Triangle Broad View Returned Mirror;
Waterproof Overhead Guard;
Backing Buzzer And Warning Light;
Pneumatic Tires
Common Options Of 10ton Forklift Machine Price Fd100:
Solid Tires;
3m-7m Duplex Or Triplex Full Free Mast;
Attachments Such As Paper Roll Clamp, Block Clamp, Bale Clamp, Bucket, Etc;
Fully Closed Cabin With Heater Or Air Conditioner;
Side Shifter And Fork Positioner;
Fully Suspension Luxurious Seat;
Double Filter;
High Exhaust;
Customized Shade Besides Green, Purple And Orange.
Model | CPCD100 | |
Rated Lifting Load | kg | 10000 |
Load Center Distance | mm | 600 |
Free lifting Height | mm | 200 |
Overall Length(With Fork/Without Fork) | mm | 5497/4277 |
Width | mm | 2245 |
Overhead Guard Height | mm | 2570 |
Wheelbase | mm | 2800 |
Minimum Ground Clearance | mm | 250 |
Mast Tilt Angle(Front/Rear) | % | 10/12 |
Tire No(Front ) | 9.00-20NHS | |
Tire No(Rear) | 9.00-20NHS | |
Minimum Turning Radius(Outside) | mm | 4150 |
Minimum Right Angle Aisle Width | mm | 6010 |
Fork Size | mm | 1520X175X85 |
Maxmum Working Speed(Full-Load/No Load) | km/h | 20/26 |
Maxmum Speed Speed(Full-Load/No Load) | mm/s | 330/350 |
Maximum Gradeability (Full-Load/No Load) | % | 15/20 |
Total Weight | kg | 12410 |
Engine | Quanchai 4J1,85KW | |
Type Of Power Shift | Hydraulic Transmission/Automatic |
Optional Configuration
Cab With Fan,Heater In The Cab,Solid Tires,High-Grade Seat, Tilting And Lifting Cylinder Sleeve,Dual Air Filter, Oil Type Air Filter, Fire Extinguisher Bottle,Fire Cover,Eur Ii Uk Perkins 1104D-44Ta Engine,Japan Isuzu
6Bg1-02 Engine, Special Mast,3-Stage Mast With Full-Free Lift,Lengthen Fork.
Optional Attachments
Side Shifter,Fork Positioner, Side Shift And Fork Positioner, Bale Clamps,Paper Roll Clamps,Flat Bag Clamps, Carton Clamps,Block Clamps,Rotator, Rotating Clamps,Hinged Fork,Sanitation Fork,Bucket, Load Stabilizers,
Single Double Pallets Handlers, Log Holder,Tyre Clamps, Push/Pull,Fertilizer Throw-Out,Drum Clamps,Carpet Boom,Cargo Boom.
Model | CPCD100 | |
Rated Lifting Load | kg | 10000 |
Load Center Distance | mm | 600 |
Free lifting Height | mm | 200 |
Overall Length(With Fork/Without Fork) | mm | 5497/4277 |
Width | mm | 2245 |
Overhead Guard Height | mm | 2570 |
Wheelbase | mm | 2800 |
Minimum Ground Clearance | mm | 250 |
Mast Tilt Angle(Front/Rear) | % | 10/12 |
Tire No(Front ) | 9.00-20NHS | |
Tire No(Rear) | 9.00-20NHS | |
Minimum Turning Radius(Outside) | mm | 4150 |
Minimum Right Angle Aisle Width | mm | 6010 |
Fork Size | mm | 1520X175X85 |
Maxmum Working Speed(Full-Load/No Load) | km/h | 20/26 |
Maxmum Speed Speed(Full-Load/No Load) | mm/s | 330/350 |
Maximum Gradeability (Full-Load/No Load) | % | 15/20 |
Total Weight | kg | 12410 |
Engine | Quanchai 4J1,85KW | |
Type Of Power Shift | Hydraulic Transmission/Automatic |
