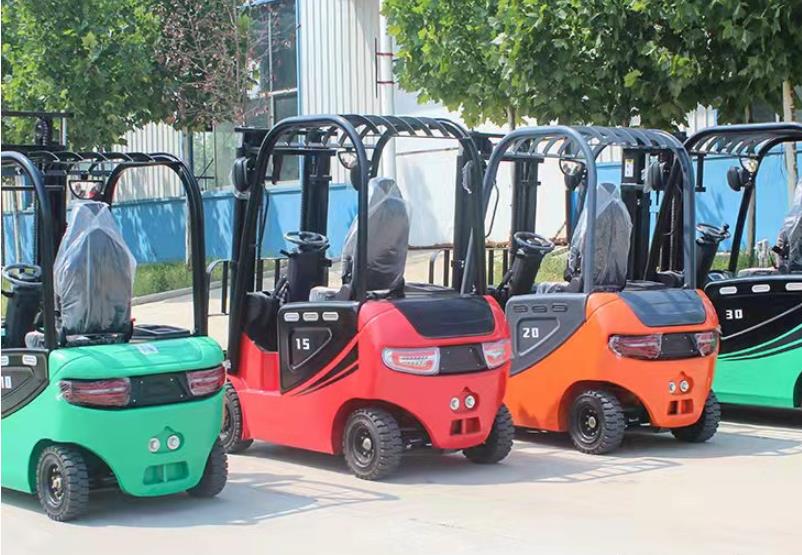

Battery Forklift For Sale
1. With Ce&Iso Certificate
2. Tcm Technology
3. Curtis Electric Controller
4. With German Din Std Battery And Charger
5. Two Stage Mast With Lifting Height 3 Meters
Product Details
TOPWIN Has More Than Ten Years Of Forklift Service Foundation,
And Can Provide Customers With Good Solutions According To Their Different Use Scenarios,
So That Customers Can Do The Biggest Things With The Least Money.
Compared With The Fuel Forklift, The Electric Forklift Has The Characteristics Of Low Operating Noise,
Simple Operation, Convenient Inspection And Maintenance, And No Pollution To The Environment.
It Is Becoming The Mainstream Of The Warehousing And Logistics Industry.Transport.
| Characteristics | Unit | ||
| Model | FD15 | ||
| Driving Mode | Seated | ||
| Rated Capacity | Q | Kg | 1500 |
| Load Center Distance | C | Mm | 500 |
| Power Mode | Lead-Acid Battery | ||
| Wheelbase | L1 | Mm | 1430 |
| Tyre | |||
| Tyre Type | Solid Tyre | ||
| Wheels Number(Front/Rear) | 2/2 | ||
| Front Track | W3 | Mm | 920 |
| Rear Track | W2 | Mm | 898 |
| Tyre(Front) | 18x7-10 | ||
| Tyre(Rear) | 16x6-8 | ||
| Size | |||
| Front Overhang | L2 | Mm | 325 |
| Tilt Of The Mast,Front/Rear | α/β | ° | 5/10 |
| Height,Mast Retraction | H1 | Mm | 2030 |
| Free Lift Height | H3 | Mm | / |
| Overall Maximum Lift Height | H | Mm | 3000 |
| Height,Mast Extended | H2 | Mm | 4055 |
| Overhead Guard Height | H4 | Mm | 2110 |
| Lateral Fork Adjustment(Outside Of Forks)Max/Min | W5 | Mm | 1040/100 |
| Fork Size(Lxwxt) | T*W*L4 | Mm | 35*100*920 |
| Truck Body Length(Fork Excluded) | L＇ | Mm | 2135 |
| Truck Body Width | W1 | Mm | 1096 |
| Turning Radius | R | Mm | 2070 |
| Ground Clearance Under Mast | H5 | Mm | 88 |
| Ground Clearance At Center Of Wheelbase(Laden) | H6 | Mm | 110 |
| Width Of Aisle Right-Angle Stacking(Pallet1000x1000mm Clearance 200mm) | Ast | Mm | 3750 |
| Width Of Aisle Right-Angle Stacking(Pallet1200x1200mm Clearance 200mm) | Ast | Mm | 3950 |
| Performance | |||
| Travel Speed,With Load/Without Load | Km/h | 7.5/8.5 | |
| Lifting Speed,With Load/Without Load | Mm/s | 180/200 | |
| Lowering Speed,With Load/Without Load | Mm/s | 450 | |
| Maximum Grade-Ability,With Load/Without Load | % | 15/20 | |
| Weight | |||
| Service Mass(With Battery) | Kg | 2710 | |
| Axle Load:Unloaded,Front/Rear | Kg | ||
| Axle Load:Loaded,Front/Rear | Kg | ||
| Battery Voltage /Nominal Capacity | V/Ah | 60V/180Ah | |
| Battery Weight | Kg | 300 | |
| Electrical Configuration | |||
| Drive Motor Power-60 Minutes | Kw | 5 | |
| Lift Motor Power-15 Minutes | Kw | 4.5 | |
| Drive Motor Controlling Mode | Mosfet/Ac | ||
| Lifting Motor Controlling Mode | Mosfet/Ac | ||
| Service Brake/Parking Brake | Hydraulic/Mechanical |
Details
| General | Model | FD25 | |
| Rated capacity | kg | 2500 | |
| Load center | mm | 500 | |
| Power type | Diesel | ||
| Transmission | Hydraulic/Mechanical | ||
| Dimensions | Lifting height | mm | 3000 |
| Free lifting height | mm | 60 | |
| Turning radius | mm | 2450 | |
| Overall length | mm | 3605 | |
| Overall width | mm | 1160 | |
| Overall height (mast lowered) | mm | 2095 | |
| Overall height (mast raised) | mm | 4080 | |
| Overall height (overhead guard) | mm | 2095 | |
| Fork length | mm | 1070 | |
| Fork width | mm | 122 | |
| Fork thickness | mm | 40 | |
| Performance | Max. driving speed (with/without load) | km/h | 17/19 |
| Max. lifting speed (with load) | mm/s | 400 | |
| Max. traction (with/without load) | kn | 15/10 | |
| Gradeability (with/without load) | % | 15/20 | |
| Tilting angles (forward/backward) | ° | 6/12 | |
| Service weight | kg | 3600 | |
| Engine | Engine model | 490BPG | |
| Power | kw | 37 | |
| Rated speed | rpm | 2500 | |
| Wheel | Front overhang | mm | 451 |
| Wheel base | mm | 1640 | |
| Front tread | mm | 970 | |
| Rear tread | mm | 970 | |
| Front tire | 7.00-12 | ||
| Rear tire | 6.00-9 |
