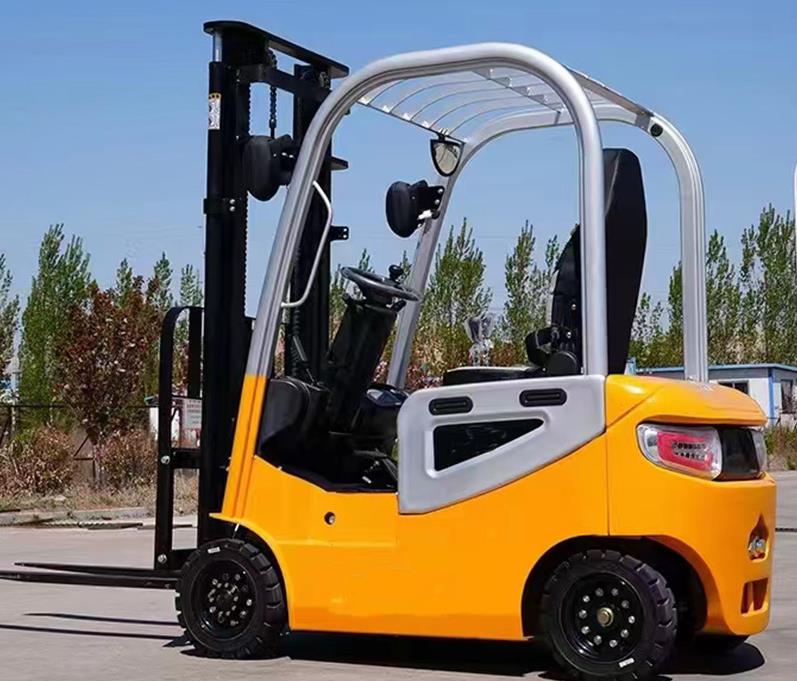

Small Electric Forklift
The Value Of The Use Of a Automobile Is Lower, The Sound Is Light,
Zero In-Line, And The Battery Existence Is Strong
Ac Battery Forklift
Sustainable Power Recuperation Technology
Low Protection Cost
Soft Sound
Zero Emission
Fuel Forklift
High Gas Consumption
High Renovation Cost
Loud Noise
Waste Emission Air Pollution
The Electric Forklift Can Be Divided Into Two Types According To The Types Of Batteries Used,
One Is The Lead-Acid Battery Forklift, And The Other Is The New Energy Lithium Battery Forklift.
The Lead-Acid Battery Forklift Has The Characteristics Of Low Use Cost. As a New Energy Product,
The Lithium Battery Forklift Has More Advantages. For Example, The Lead-Acid Battery Forklift Has About 600 Times Of Charging And Discharging,
While The Lithium Battery Has 2000 Times Of Charging And Discharging. The Charging Speed Is Different. It Takes Only 2 Hours To Charge The Lithium Battery From 10% To 100% And 8 Hours To Charge The Lead-Acid Battery From 20% To 100%. The Requirements For Ambient Temperature Are Different. When The Ambient Temperature Reaches -20 ºc, The Discharge Efficiency Of Lead-Acid Battery Decreases To 30%, While The Discharge Efficiency Of Lithium Battery Can Still Reach 80~90%. The Lead-Acid Battery Is Not Resistant To Low Temperature, And The Battery Capacity Decreases Significantly With The Decrease Of Temperature. The Lithium Battery Can Work Well From -20 ºc To 60 ºc.
| Characteristics | Unit | ||
| Model | FD15 | ||
| Driving Mode | Seated | ||
| Rated Capacity | Q | Kg | 1500 |
| Load Center Distance | C | Mm | 500 |
| Power Mode | Lead-Acid Battery | ||
| Wheelbase | L1 | Mm | 1430 |
| Tyre | |||
| Tyre Type | Solid Tyre | ||
| Wheels Number(Front/Rear) | 2/2 | ||
| Front Track | W3 | Mm | 920 |
| Rear Track | W2 | Mm | 898 |
| Tyre(Front) | 18x7-10 | ||
| Tyre(Rear) | 16x6-8 | ||
| Size | |||
| Front Overhang | L2 | Mm | 325 |
| Tilt Of The Mast,Front/Rear | α/β | ° | 5/10 |
| Height,Mast Retraction | H1 | Mm | 2030 |
| Free Lift Height | H3 | Mm | / |
| Overall Maximum Lift Height | H | Mm | 3000 |
| Height,Mast Extended | H2 | Mm | 4055 |
| Overhead Guard Height | H4 | Mm | 2110 |
| Lateral Fork Adjustment(Outside Of Forks)Max/Min | W5 | Mm | 1040/100 |
| Fork Size(Lxwxt) | T*W*L4 | Mm | 35*100*920 |
| Truck Body Length(Fork Excluded) | L＇ | Mm | 2135 |
| Truck Body Width | W1 | Mm | 1096 |
| Turning Radius | R | Mm | 2070 |
| Ground Clearance Under Mast | H5 | Mm | 88 |
| Ground Clearance At Center Of Wheelbase(Laden) | H6 | Mm | 110 |
| Width Of Aisle Right-Angle Stacking(Pallet1000x1000mm Clearance 200mm) | Ast | Mm | 3750 |
| Width Of Aisle Right-Angle Stacking(Pallet1200x1200mm Clearance 200mm) | Ast | Mm | 3950 |
| Performance | |||
| Travel Speed,With Load/Without Load | Km/h | 7.5/8.5 | |
| Lifting Speed,With Load/Without Load | Mm/s | 180/200 | |
| Lowering Speed,With Load/Without Load | Mm/s | 450 | |
| Maximum Grade-Ability,With Load/Without Load | % | 15/20 | |
| Weight | |||
| Service Mass(With Battery) | Kg | 2710 | |
| Axle Load:Unloaded,Front/Rear | Kg | ||
| Axle Load:Loaded,Front/Rear | Kg | ||
| Battery Voltage /Nominal Capacity | V/Ah | 60V/180Ah | |
| Battery Weight | Kg | 300 | |
| Electrical Configuration | |||
| Drive Motor Power-60 Minutes | Kw | 5 | |
| Lift Motor Power-15 Minutes | Kw | 4.5 | |
| Drive Motor Controlling Mode | Mosfet/Ac | ||
| Lifting Motor Controlling Mode | Mosfet/Ac | ||
| Service Brake/Parking Brake | Hydraulic/Mechanical |
Details
| General | Model | FD25 | |
| Rated capacity | kg | 2500 | |
| Load center | mm | 500 | |
| Power type | Diesel | ||
| Transmission | Hydraulic/Mechanical | ||
| Dimensions | Lifting height | mm | 3000 |
| Free lifting height | mm | 60 | |
| Turning radius | mm | 2450 | |
| Overall length | mm | 3605 | |
| Overall width | mm | 1160 | |
| Overall height (mast lowered) | mm | 2095 | |
| Overall height (mast raised) | mm | 4080 | |
| Overall height (overhead guard) | mm | 2095 | |
| Fork length | mm | 1070 | |
| Fork width | mm | 122 | |
| Fork thickness | mm | 40 | |
| Performance | Max. driving speed (with/without load) | km/h | 17/19 |
| Max. lifting speed (with load) | mm/s | 400 | |
| Max. traction (with/without load) | kn | 15/10 | |
| Gradeability (with/without load) | % | 15/20 | |
| Tilting angles (forward/backward) | ° | 6/12 | |
| Service weight | kg | 3600 | |
| Engine | Engine model | 490BPG | |
| Power | kw | 37 | |
| Rated speed | rpm | 2500 | |
| Wheel | Front overhang | mm | 451 |
| Wheel base | mm | 1640 | |
| Front tread | mm | 970 | |
| Rear tread | mm | 970 | |
| Front tire | 7.00-12 | ||
| Rear tire | 6.00-9 |
