1800KG Small digger
Standard Aux Hydraulics
In-Cab Color Monitor
Multiple Working Modes
Reliable First-Class Components
Product Details

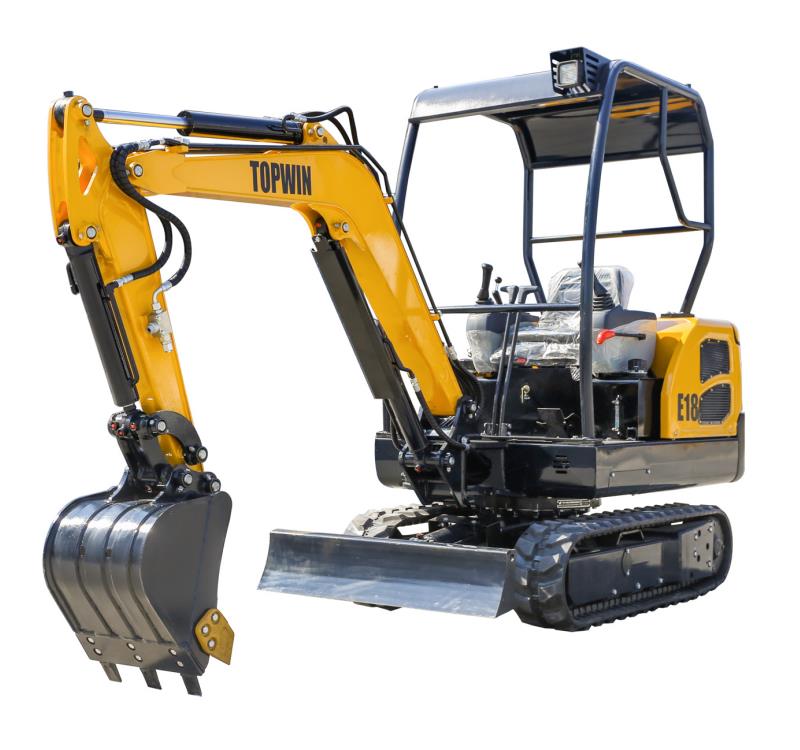

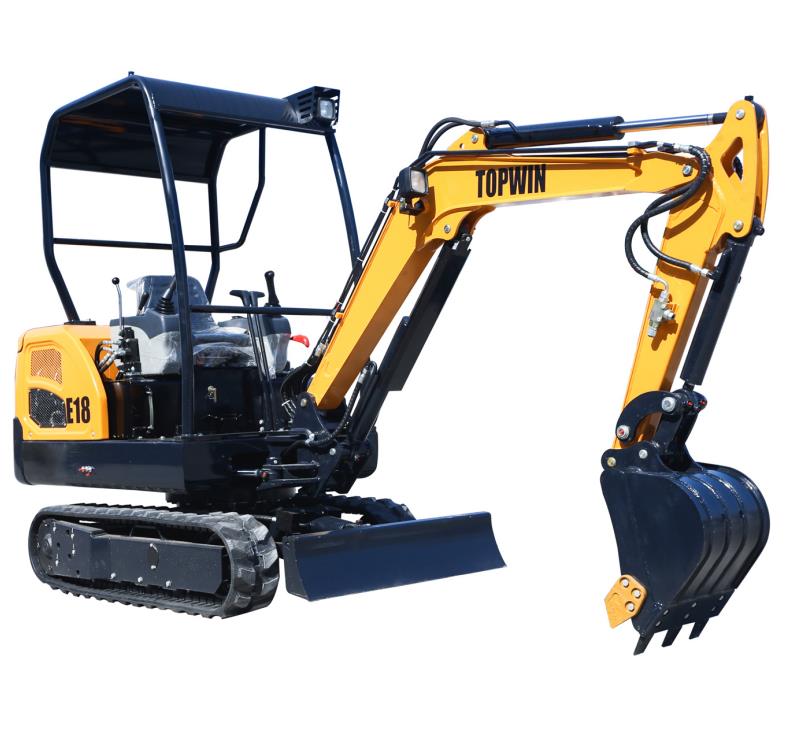

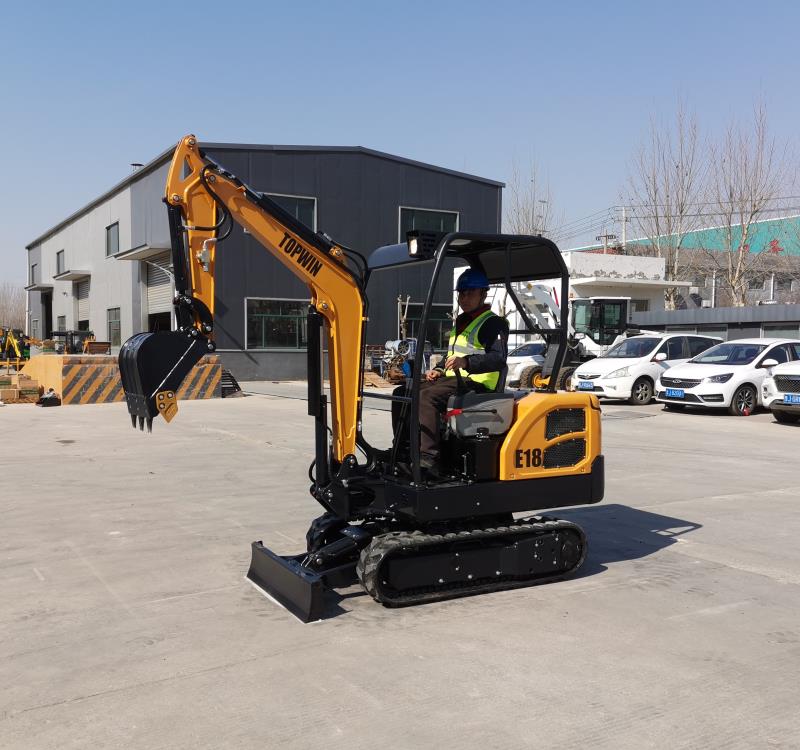

Mini Excavator Is Designed To Assist You Work Successfully Whilst Maximizing Your Jobsite Productivity. The 1.8 Ton Excavator Has Many Facets To Assist Operators Gain The Stability Of Power, Smoothness, Gas Effectivity And Speed
| Model | TWE18 |
| ENGINE | |
| Emission Standard | Tier 3/ Stage III |
| Make /Model | LAIDONG,CHINA 3TE25 |
| Power /Rotation speed | 18.4kw(25HP)@2350rpm |
| Number of cylinder | 3 |
| TRACK SYSTEM | |
| Maximum Travel speed | 3.5km/h |
| Width of track shoe(Rubber &steel track) | 230mm |
| Number of track shoe per side(steel track only) | 38 pcs |
| Number of upper roller per side | 0 |
| Number of bottom roller per side | 4 |
| PERFORMANCE PARAMETER | |
| Standard Bucket capacity | 0.06m³ |
| Swing speed | 10~12 rpm |
| Maximum Grade ability | 35° |
| Maximum Bucket digging force | 14KN |
| Maximum Arm digging force | 10KN |
| Hydraulic system pressure | 18Mpa |
| Machine weight | 1780kg |
| MACHINE SIZE | |
| Overall dimension (L*W*H) | 3865mm*1050mm*2270mm |
| Axle base/Track length on ground | 1230mm |
| Track gauge | 820mm |
| Minimum Ground clearance | 210mm |
| Swing radius at tail | 1125mm |
| WORKING RANGE | |
| Maximum Digging height | 3365mm |
| Maximum Dumping height | 2385mm |
| Maximum Digging depth | 2050mm |
| Maximum Vertical digging depth | 1725mm |
| Maximum Digging radius | 3860mm |
| Minimum swing radius | 1720mm |
| Maximum Lifting height of blade | 230mm |
| Maximum Cutting depth of blade | 275mm |
| Boom swing angle(Left/Right) | 75°/45° |
| Shipping method | 4 units in 20GP container 8 units in 40GP container |
| Model | TWE18 |
| ENGINE | |
| Emission Standard | Tier 3/ Stage III |
| Make /Model | LAIDONG,CHINA 3TE25 |
| Power /Rotation speed | 18.4kw(25HP)@2350rpm |
| Number of cylinder | 3 |
| TRACK SYSTEM | |
| Maximum Travel speed | 3.5km/h |
| Width of track shoe(Rubber &steel track) | 230mm |
| Number of track shoe per side(steel track only) | 38 pcs |
| Number of upper roller per side | 0 |
| Number of bottom roller per side | 4 |
| PERFORMANCE PARAMETER | |
| Standard Bucket capacity | 0.06m³ |
| Swing speed | 10~12 rpm |
| Maximum Grade ability | 35° |
| Maximum Bucket digging force | 14KN |
| Maximum Arm digging force | 10KN |
| Hydraulic system pressure | 18Mpa |
| Machine weight | 1780kg |
| MACHINE SIZE | |
| Overall dimension (L*W*H) | 3865mm*1050mm*2270mm |
| Axle base/Track length on ground | 1230mm |
| Track gauge | 820mm |
| Minimum Ground clearance | 210mm |
| Swing radius at tail | 1125mm |
| WORKING RANGE | |
| Maximum Digging height | 3365mm |
| Maximum Dumping height | 2385mm |
| Maximum Digging depth | 2050mm |
| Maximum Vertical digging depth | 1725mm |
| Maximum Digging radius | 3860mm |
| Minimum swing radius | 1720mm |
| Maximum Lifting height of blade | 230mm |
| Maximum Cutting depth of blade | 275mm |
| Boom swing angle(Left/Right) | 75°/45° |
| Shipping method | 4 units in 20GP container 8 units in 40GP container |
