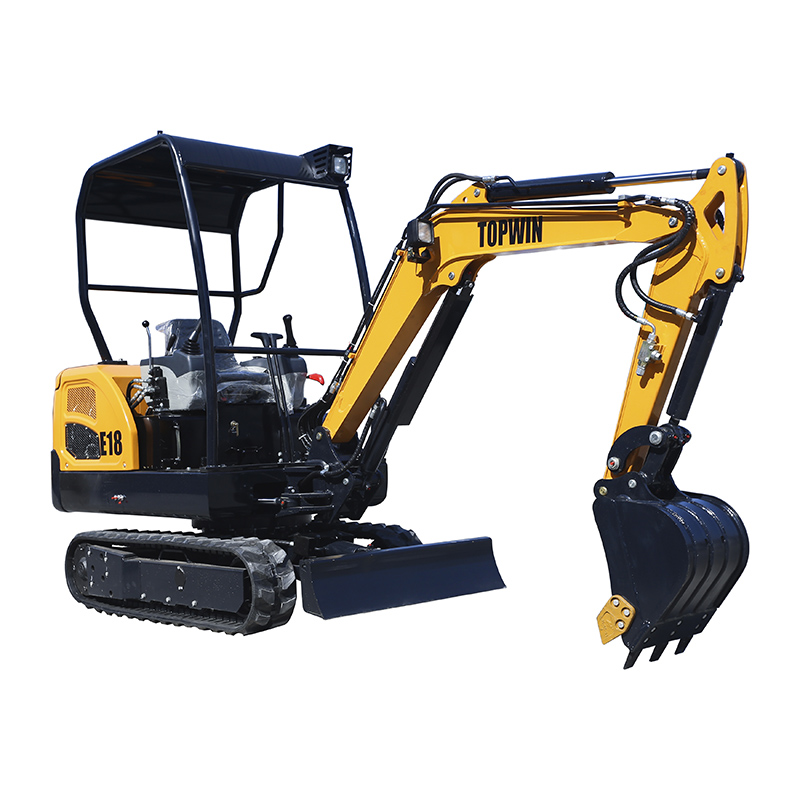

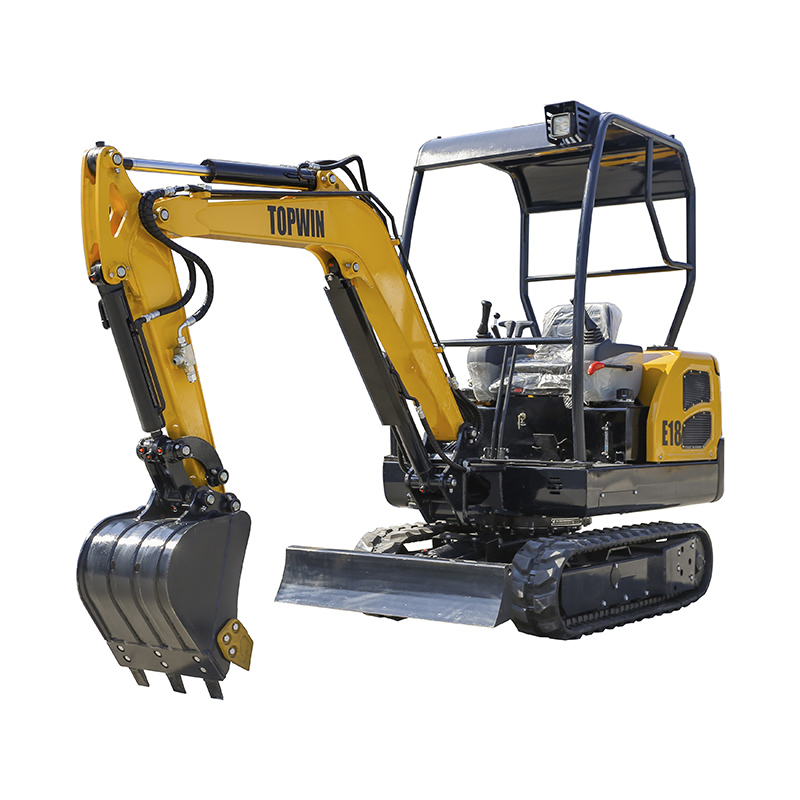

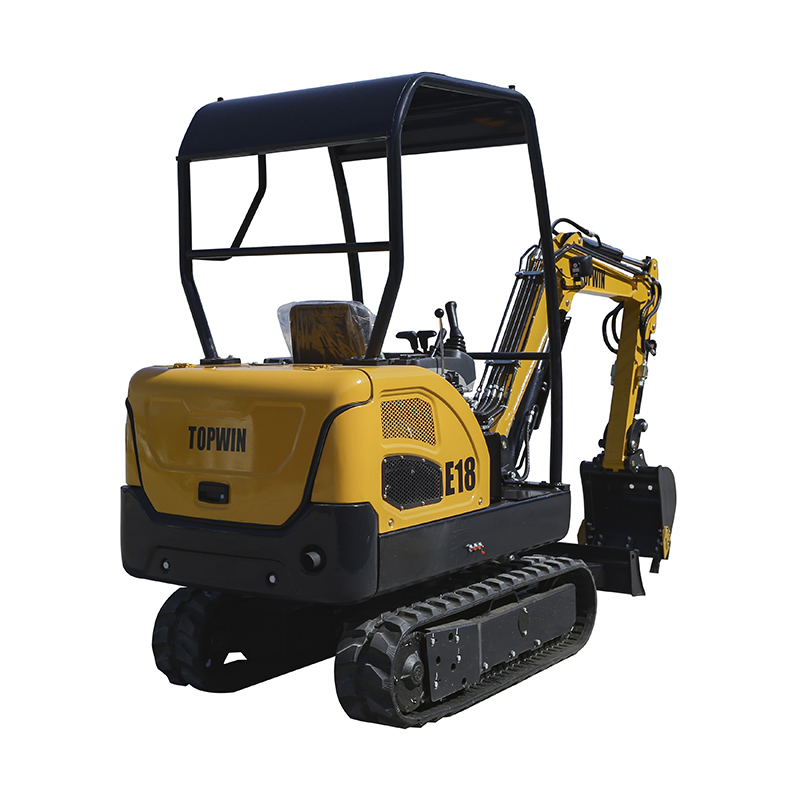

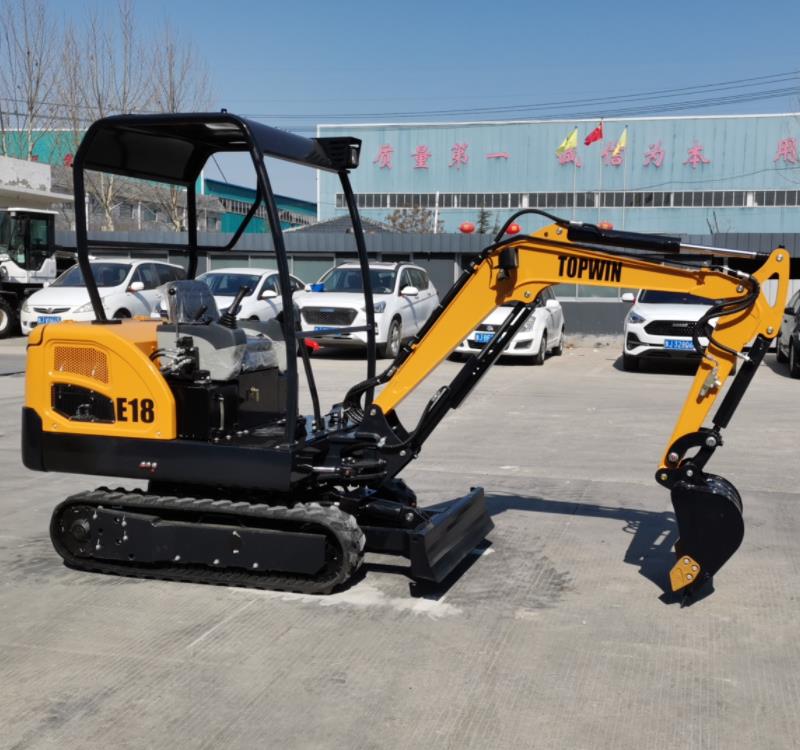

1.8Ton Excavator Equipment
Easy To Use And Ideal In Tight Access Areas For Small To Medium Projects Including Drainage, Trenches, Pool Excavations And Building Footings. Fitted With Backfill Blade For User Convenience.
Product Details
1. Engine That Meets Euro V Emission Requirements Is Notably Reliable, Environmentally Friendly, And Have Decrease Gas Consumption.
2.Compact And Tailless Plan Cooperates With Growth Swing Function, Which Can Adapt To The Slim Area Operation Flexibly.
3. When The Journey Device Retracts, The Size Between Two Crawlers Is Solely 990mm, Which Has Higher Trafficability.
4. Key Electrical Factors Are Organized In New Kind Electrical Box, Which Makes Day By Day Renovation Greater Convenient.
| Model | TWE18 |
| ENGINE | |
| Emission Standard | Tier 3/ Stage III |
| Make /Model | LAIDONG,CHINA 3TE25 |
| Power /Rotation speed | 18.4kw(25HP)@2350rpm |
| Number of cylinder | 3 |
| TRACK SYSTEM | |
| Maximum Travel speed | 3.5km/h |
| Width of track shoe(Rubber &steel track) | 230mm |
| Number of track shoe per side(steel track only) | 38 pcs |
| Number of upper roller per side | 0 |
| Number of bottom roller per side | 4 |
| PERFORMANCE PARAMETER | |
| Standard Bucket capacity | 0.06m³ |
| Swing speed | 10~12 rpm |
| Maximum Grade ability | 35° |
| Maximum Bucket digging force | 14KN |
| Maximum Arm digging force | 10KN |
| Hydraulic system pressure | 18Mpa |
| Machine weight | 1780kg |
| MACHINE SIZE | |
| Overall dimension (L*W*H) | 3865mm*1050mm*2270mm |
| Axle base/Track length on ground | 1230mm |
| Track gauge | 820mm |
| Minimum Ground clearance | 210mm |
| Swing radius at tail | 1125mm |
| WORKING RANGE | |
| Maximum Digging height | 3365mm |
| Maximum Dumping height | 2385mm |
| Maximum Digging depth | 2050mm |
| Maximum Vertical digging depth | 1725mm |
| Maximum Digging radius | 3860mm |
| Minimum swing radius | 1720mm |
| Maximum Lifting height of blade | 230mm |
| Maximum Cutting depth of blade | 275mm |
| Boom swing angle(Left/Right) | 75°/45° |
| Shipping method | 4 units in 20GP container 8 units in 40GP container |

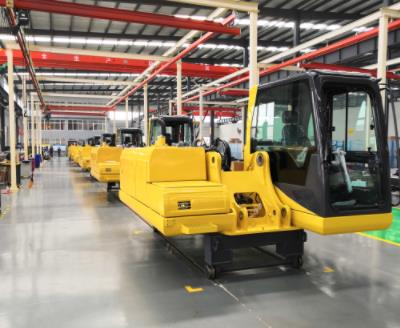

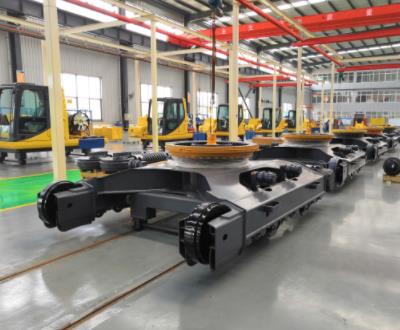

Our Workshop
| Model | TWE18 |
| ENGINE | |
| Emission Standard | Tier 3/ Stage III |
| Make /Model | LAIDONG,CHINA 3TE25 |
| Power /Rotation speed | 18.4kw(25HP)@2350rpm |
| Number of cylinder | 3 |
| TRACK SYSTEM | |
| Maximum Travel speed | 3.5km/h |
| Width of track shoe(Rubber &steel track) | 230mm |
| Number of track shoe per side(steel track only) | 38 pcs |
| Number of upper roller per side | 0 |
| Number of bottom roller per side | 4 |
| PERFORMANCE PARAMETER | |
| Standard Bucket capacity | 0.06m³ |
| Swing speed | 10~12 rpm |
| Maximum Grade ability | 35° |
| Maximum Bucket digging force | 14KN |
| Maximum Arm digging force | 10KN |
| Hydraulic system pressure | 18Mpa |
| Machine weight | 1780kg |
| MACHINE SIZE | |
| Overall dimension (L*W*H) | 3865mm*1050mm*2270mm |
| Axle base/Track length on ground | 1230mm |
| Track gauge | 820mm |
| Minimum Ground clearance | 210mm |
| Swing radius at tail | 1125mm |
| WORKING RANGE | |
| Maximum Digging height | 3365mm |
| Maximum Dumping height | 2385mm |
| Maximum Digging depth | 2050mm |
| Maximum Vertical digging depth | 1725mm |
| Maximum Digging radius | 3860mm |
| Minimum swing radius | 1720mm |
| Maximum Lifting height of blade | 230mm |
| Maximum Cutting depth of blade | 275mm |
| Boom swing angle(Left/Right) | 75°/45° |
| Shipping method | 4 units in 20GP container 8 units in 40GP container |
