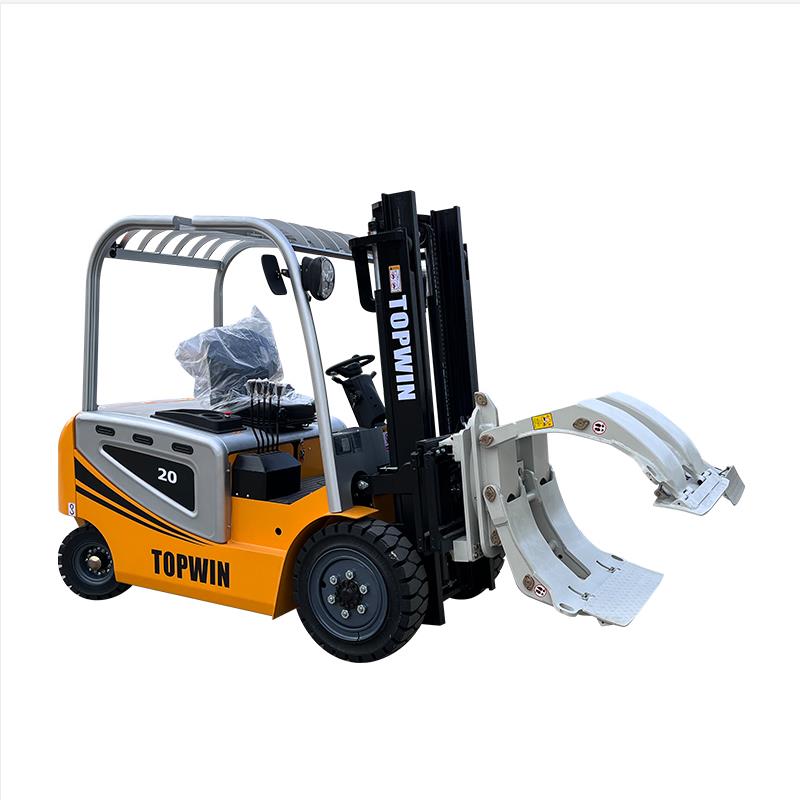

Mini Electric Forklift For Sale
Ac Battery Forklift
Sustainable Energy Recovery Technology
Low Maintenance Cost
Soft Sound
Zero Emission
Product Details
Electric Forklifts Are a Quiet, Environmentally Pleasant Skill Of Coping With a Extensive Vary Of Unit Masses Such As Pallets,
Pallet Packing Containers And Stillages, Giving You a Complete Preference For Any Application.
Topwin Forklift Adopts The Streamline Sketch That Makes The Look Greater Pleasing,
Using Home Typical Engine Company Which Is Powerful, Dependable,
Convenient To Carrier ,And With Low Emissions And Gas Consumption.
Our Forklift Can Decrease Your Cost,Provide Higher u.
| Characteristics | Unit | ||
| Model | Cpd20-C | ||
| Driving Mode | Seated | ||
| Rated Capacity | Q | Kg | 2000 |
| Load Center Distance | C | Mm | 500 |
| Power Mode | Lead-Acid Battery | ||
| Wheelbase | L1 | Mm | 1430 |
| Tyre | |||
| Tyre Type | Solid Tyre | ||
| Wheels Number(Front/Rear) | 2/2 | ||
| Front Track | W3 | Mm | 920 |
| Rear Track | W2 | Mm | 898 |
| Tyre(Front) | 18x7-10 | ||
| Tyre(Rear) | 16x6-8 | ||
| Size | |||
| Front Overhang | L2 | Mm | 325 |
| Tilt Of The Mast,Front/Rear | α/β | ° | 5/10 |
| Height,Mast Retraction | H1 | Mm | 2030 |
| Free Lift Height | H3 | Mm | / |
| Overall Maximum Lift Height | H | Mm | 3000 |
| Height,Mast Extended | H2 | Mm | 4055 |
| Overhead Guard Height | H4 | Mm | 2110 |
| Lateral Fork Adjustment(Outside Of Forks)Max/Min | W5 | Mm | 1040/100 |
| Fork Size(Lxwxt) | T*W*L4 | Mm | 35*100*920 |
| Truck Body Length(Fork Excluded) | L＇ | Mm | 2135 |
| Truck Body Width | W1 | Mm | 1096 |
| Turning Radius | R | Mm | 2070 |
| Ground Clearance Under Mast | H5 | Mm | 88 |
| Ground Clearance At Center Of Wheelbase(Laden) | H6 | Mm | 110 |
| Width Of Aisle Right-Angle Stacking(Pallet1000x1000mm Clearance 200mm) | Ast | Mm | 3750 |
| Width Of Aisle Right-Angle Stacking(Pallet1200x1200mm Clearance 200mm) | Ast | Mm | 3950 |
| Performance | |||
| Travel Speed,With Load/Without Load | Km/h | 7.5/8.5 | |
| Lifting Speed,With Load/Without Load | Mm/s | 180/200 | |
| Lowering Speed,With Load/Without Load | Mm/s | 450 | |
| Maximum Grade-Ability,With Load/Without Load | % | 15/20 | |
| Weight | |||
| Service Mass(With Battery) | Kg | 2710 | |
| Axle Load:Unloaded,Front/Rear | Kg | ||
| Axle Load:Loaded,Front/Rear | Kg | ||
| Battery Voltage /Nominal Capacity | V/Ah | 60V/180Ah | |
| Battery Weight | Kg | 300 | |
| Electrical Configuration | |||
| Drive Motor Power-60 Minutes | Kw | 5 | |
| Lift Motor Power-15 Minutes | Kw | 4.5 | |
| Drive Motor Controlling Mode | Mosfet/Ac | ||
| Lifting Motor Controlling Mode | Mosfet/Ac | ||
| Service Brake/Parking Brake | Hydraulic/Mechanical |
Details
| General | Model | FD25 | |
| Rated capacity | kg | 2500 | |
| Load center | mm | 500 | |
| Power type | Diesel | ||
| Transmission | Hydraulic/Mechanical | ||
| Dimensions | Lifting height | mm | 3000 |
| Free lifting height | mm | 60 | |
| Turning radius | mm | 2450 | |
| Overall length | mm | 3605 | |
| Overall width | mm | 1160 | |
| Overall height (mast lowered) | mm | 2095 | |
| Overall height (mast raised) | mm | 4080 | |
| Overall height (overhead guard) | mm | 2095 | |
| Fork length | mm | 1070 | |
| Fork width | mm | 122 | |
| Fork thickness | mm | 40 | |
| Performance | Max. driving speed (with/without load) | km/h | 17/19 |
| Max. lifting speed (with load) | mm/s | 400 | |
| Max. traction (with/without load) | kn | 15/10 | |
| Gradeability (with/without load) | % | 15/20 | |
| Tilting angles (forward/backward) | ° | 6/12 | |
| Service weight | kg | 3600 | |
| Engine | Engine model | 490BPG | |
| Power | kw | 37 | |
| Rated speed | rpm | 2500 | |
| Wheel | Front overhang | mm | 451 |
| Wheel base | mm | 1640 | |
| Front tread | mm | 970 | |
| Rear tread | mm | 970 | |
| Front tire | 7.00-12 | ||
| Rear tire | 6.00-9 |
