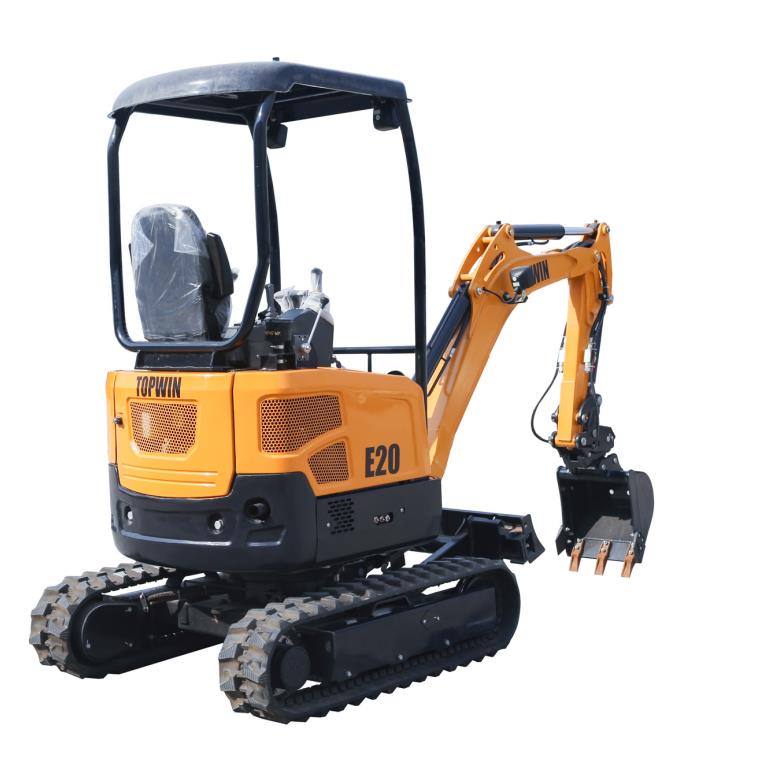

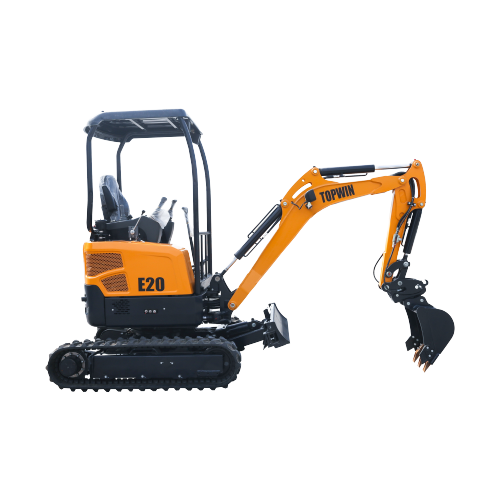

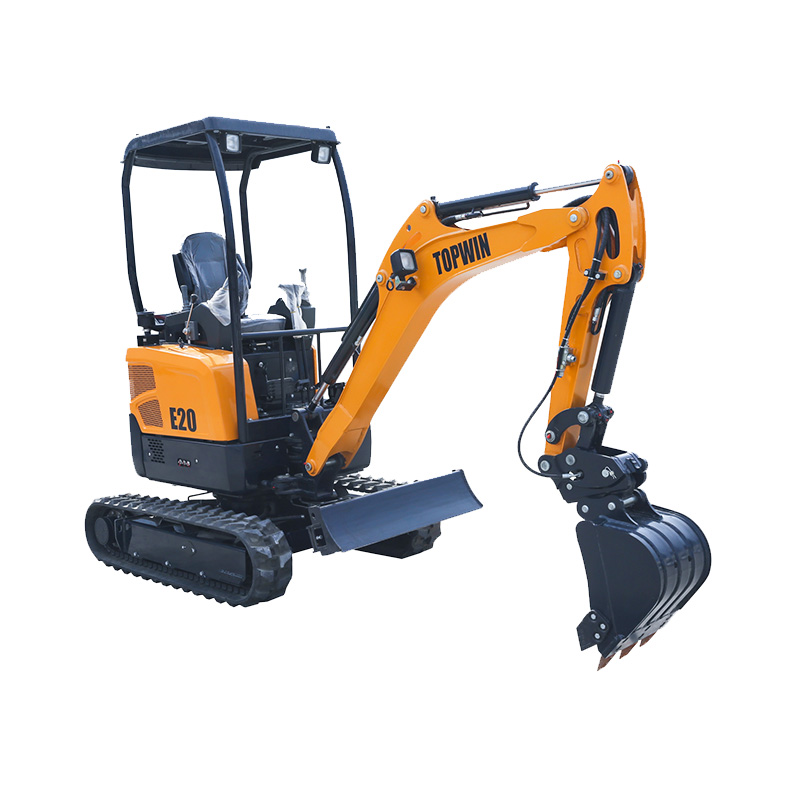

2Ton Digger For Sale
1.The Rear Lid Is Lifted For Effortless Maintenance, Effortless Maintenanc
2.Unique Huge Arm Shape Design, No Longer Convenient To Break
3.The Operation The Front Pipeline Is Clear, And The Protecting Cowl Protects
The Pipeline From Being Destroyed.
Product Details
The boom cylinder adopts the ordinary brand, the cylinder is designed integrated, which is greater superior than the welding technology.
All structural components are finely processed, and shot blasting, pickling, and baking end manner are adopted. The floor has excessive gloss and excessive paint adhesion.
| Model | TWE20 |
| ENGINE | |
| Emission Standard | Tier 3/ Stage III |
| Make /Model | KUBOTA D1105 |
| Power /Rotation speed | 14.1kw(20HP)@2000rpm |
| Number of cylinder | 3 |
| TRACK SYSTEM | |
| Maximum Travel speed | 4km/h |
| Width of track shoe(Rubber &steel track) | 230mm |
| Number of track shoe per side(steel track only) | 38pcs |
| Number of upper roller per side | 1 |
| Number of bottom roller per side | 3 |
| PERFORMANCE PARAMETER | |
| Standard Bucket capacity | 0.07m³ |
| Swing speed | 9 rpm |
| Maximum Grade ability | 35° |
| Maximum Bucket digging force | 18KN |
| Maximum Arm digging force | 11KN |
| Hydraulic system pressure | 21.5Mpa |
| Machine weight | 2000kg |
| MACHINE SIZE | |
| Overall dimension (L*W*H) | 3555mm*990mm/1300mm*2290mm |
| Axle base/Track length on ground | 1230mm |
| Track gauge | 760mm |
| Minimum Ground clearance | 150mm |
| Swing radius at tail | 650mm |
| WORKING RANGE | |
| Maximum Digging height | 3700mm |
| Maximum Dumping height | 2440mm |
| Maximum Digging depth | 2400mm |
| Maximum Vertical digging depth | 2025mm |
| Maximum Digging radius | 4040mm |
| Minimum swing radius | 1610mm |
| Maximum Lifting height of blade | 240mm |
| Maximum Cutting depth of blade | 270mm |
| Boom swing angle(Left/Right) | 75°/45° |
| Shipping method | 4 units in 20GP container 8 units in 40GP container |
| Model | TWE20 |
| ENGINE | |
| Emission Standard | Tier 3/ Stage III |
| Make /Model | KUBOTA D1105 |
| Power /Rotation speed | 14.1kw(20HP)@2000rpm |
| Number of cylinder | 3 |
| TRACK SYSTEM | |
| Maximum Travel speed | 4km/h |
| Width of track shoe(Rubber &steel track) | 230mm |
| Number of track shoe per side(steel track only) | 38pcs |
| Number of upper roller per side | 1 |
| Number of bottom roller per side | 3 |
| PERFORMANCE PARAMETER | |
| Standard Bucket capacity | 0.07m³ |
| Swing speed | 9 rpm |
| Maximum Grade ability | 35° |
| Maximum Bucket digging force | 18KN |
| Maximum Arm digging force | 11KN |
| Hydraulic system pressure | 21.5Mpa |
| Machine weight | 2000kg |
| MACHINE SIZE | |
| Overall dimension (L*W*H) | 3555mm*990mm/1300mm*2290mm |
| Axle base/Track length on ground | 1230mm |
| Track gauge | 760mm |
| Minimum Ground clearance | 150mm |
| Swing radius at tail | 650mm |
| WORKING RANGE | |
| Maximum Digging height | 3700mm |
| Maximum Dumping height | 2440mm |
| Maximum Digging depth | 2400mm |
| Maximum Vertical digging depth | 2025mm |
| Maximum Digging radius | 4040mm |
| Minimum swing radius | 1610mm |
| Maximum Lifting height of blade | 240mm |
| Maximum Cutting depth of blade | 270mm |
| Boom swing angle(Left/Right) | 75°/45° |
| Shipping method | 4 units in 20GP container 8 units in 40GP container |
