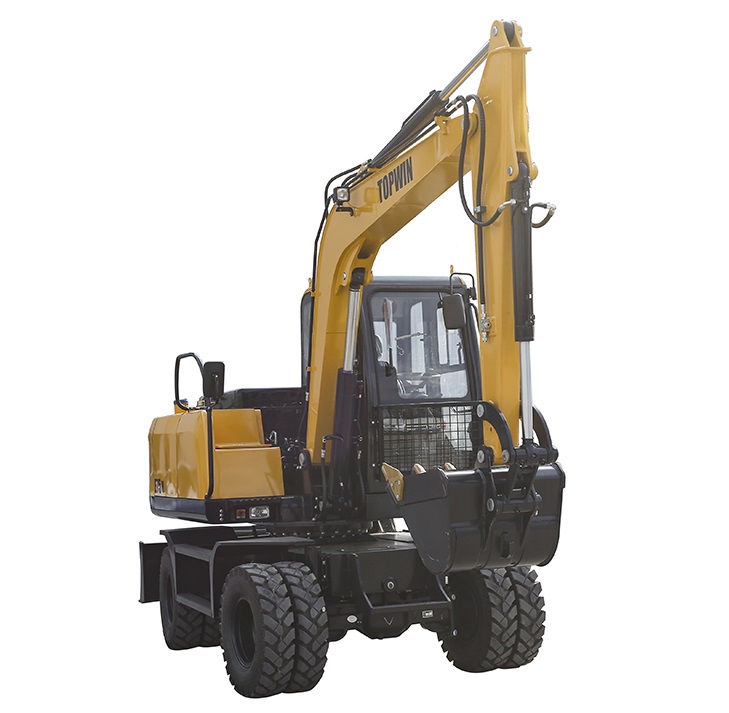

Wheeled Excavator
Its modular design allows you to easily configure the machine's undercarriage with a dozer blade or outriggers to be mounted on either end of the machine.
The dozer blade can be used for leveling or backfilling material, or stabilizing the machine during digging applications.
The blade's large dozer bottom and parallel design minimize ground pressure.

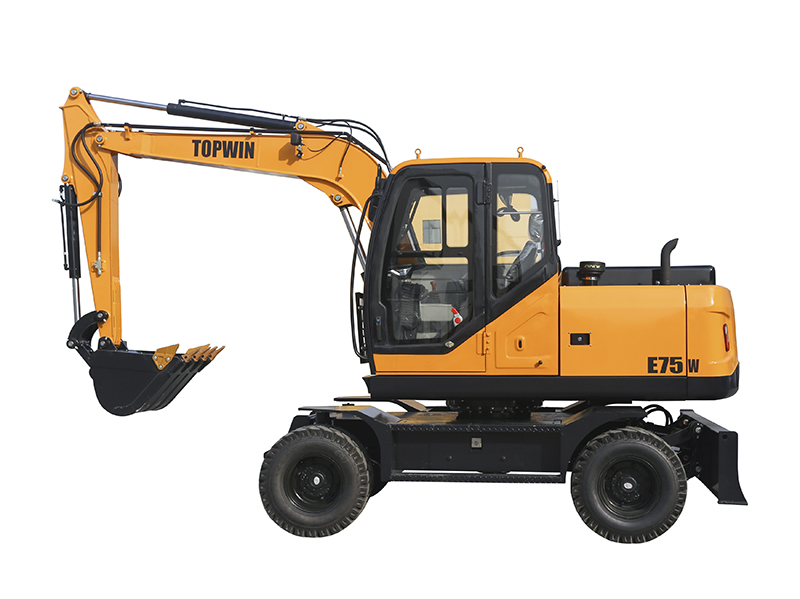

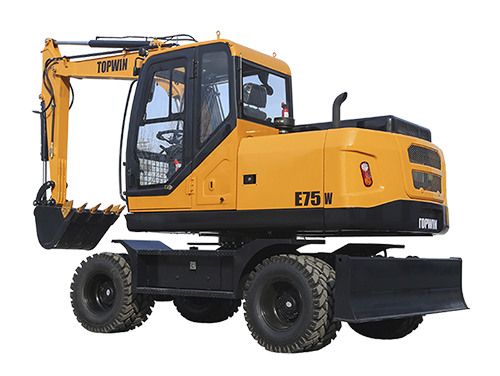

When you need big-time productivity in a machine that's easy to transport and maneuver, turn to the TOPWIN E75. It's ideal for public works departments as well as highway and utility contractors, subdivision and commercial developers and industrial firms with large facilities.
Its modular design allows you to easily configure the machine’s undercarriage with a dozer blade or outriggers to be mounted on either end of the machine. The dozer blade can be used for leveling or backfilling material, or stabilizing the machine during digging applications. The blade's large dozer bottom and parallel design minimize ground pressure.
Model | TWE75W | TWE135W |
ENGINE | ||
Emission Standard | Tier 3/ Stage III | Tier 3/ Stage III |
Make /Model | XINCHAI/4D32ZG31 | YUCHAI/YC4D115Z |
Power /Rotation speed | 48kw(65HP)@2300rpm | 85kw(115HP)@2200rpm |
Number of cylinder | 4 | 4 |
DRIVING SYSTEM | ||
Maximum Travel speed | 20/30km/h | 19/32km/h |
Tire model/Number of tires | 7.50-16/8 | 9.00-20/8 |
Driving type | Mechanical drive(Front/Rear) | Hydraulic controlling |
Steering type | Steering wheel | Steering wheel |
TRANSMISSION | ||
Forward gears/Reverse gears | 5/1 | Free shift(Stepless gear box) |
BRAKE SYSTEM | ||
Driving brake | Air break | Air break+oil brake |
Parking brake | Disc break | Disc break |
Emergency brake | Foot brake | Foot brake |
PERFORMANCE PARAMETER | ||
Standard Bucket capacity | 0.21m³ | 0.6m³ |
Swing speed | 12rpm | 12rpm |
Maximum Grade ability | 25° | 25° |
Maximum Bucket digging force | 45KN | 91KN |
Maximum Arm digging force | 36KN | 55KN |
Hydraulic system pressure | 20Mpa | 32Mpa |
Machine weight | 7500kg | 13800kg |
Fuel tank | 118L | 252L |
Hydraulic oil tank | 110L | 160L |
MACHINE SIZE | ||
Overall dimension (L*W*H) | 5930mm*2205mm*2850mm | 7520mm*2570mm*3425mm |
Height of cabin | 2850mm | 3015mm |
Wheel base/Tread | 2400mm/1675mm | 2600mm/1944mm |
Minimum Ground clearance | 260mm | 350mm |
Swing radius at tail | 1940mm | 2332mm |
WORKING RANGE | ||
Maximum Digging height | 5865mm | 8930mm |
Maximum Dumping height | 4212mm | 6520mm |
Maximum Digging depth | 3290mm | 4750mm |
Maximum Vertical digging depth | 2616mm | 4200mm |
Maximum Digging radius | 5820mm | 8000mm |
Minimum swing radius | 2296mm | 2445mm |
Maximum lifting height of dozer blade | 310mm | 400mm |
Maximum cutting depth of dozer blade | 130mm | 100mm |
Shipping method | 1 unit in 40GP container | by RORO ship |
