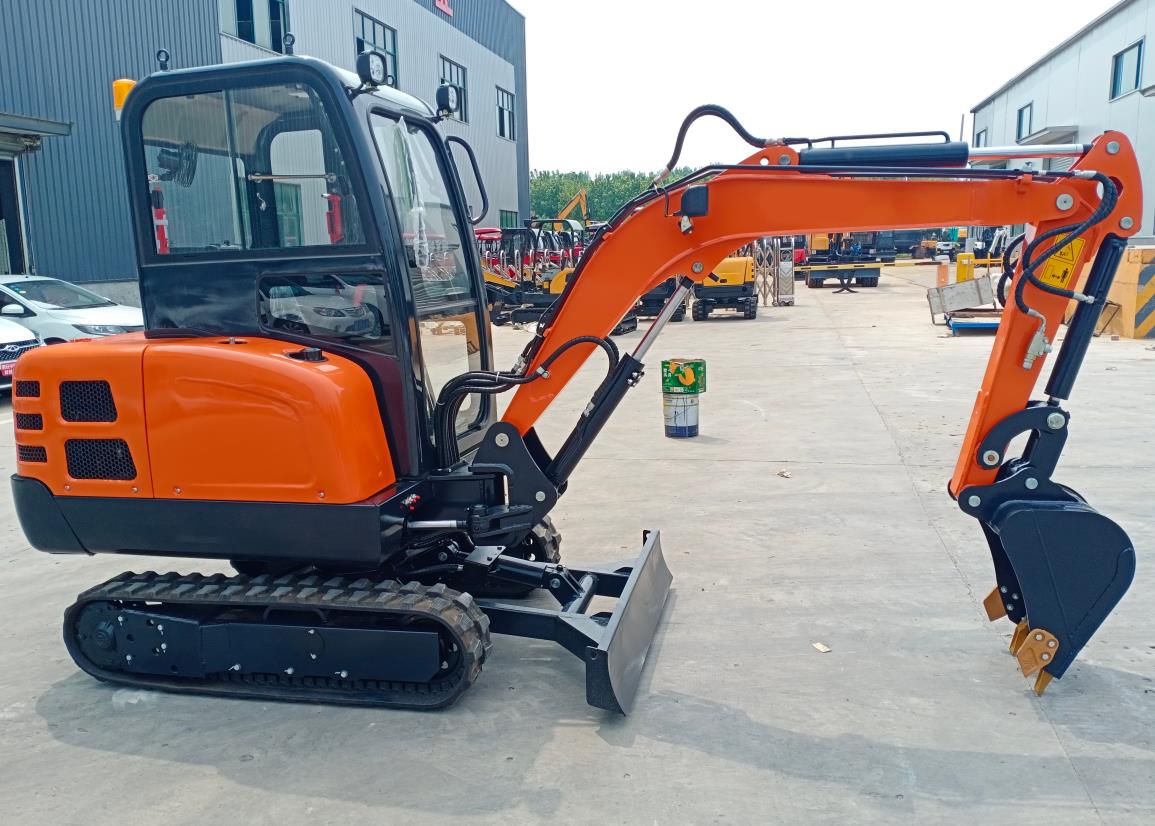

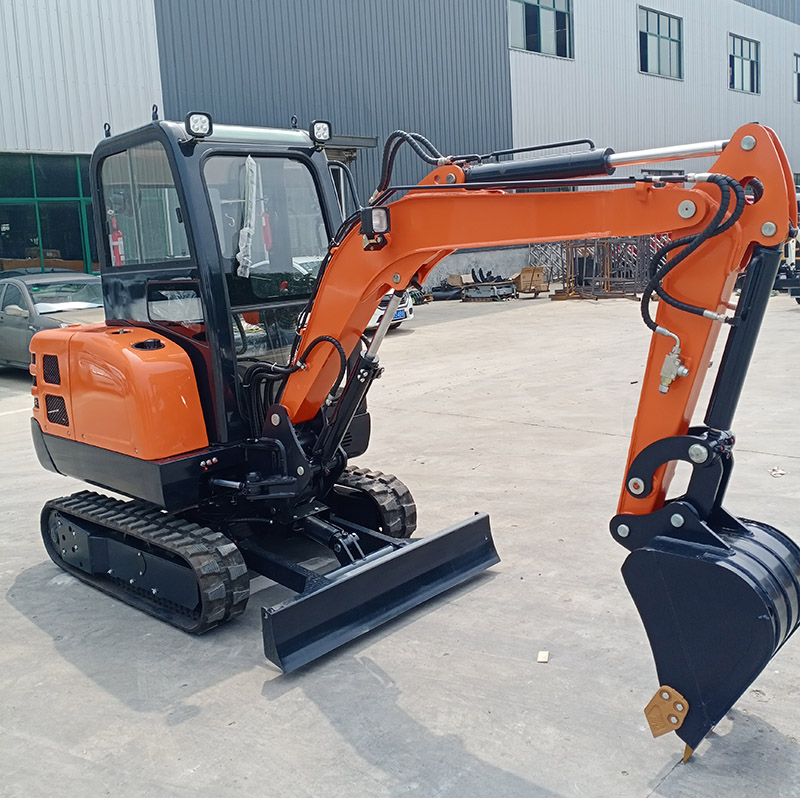

E25 Mini Excavator
1. Eaton motor for smooth operation control
2. KDK Hydraulic pump
3. Optional for Yanmar Euro V / EPA 4 emission engine
4. Deflection boom for close digging to walls
5. Two speeds for large work
The advantage of our excavator are the following lists：
1. Eaton motor for smooth operation control
2. KDK Hydraulic pump
3. Optional for Yanmar Euro V / EPA 4 emission engine
4. Deflection boom for close digging to walls
5. Two speeds for large work
Model | TWE25 |
ENGINE | |
Emission Standard | Tier 3/ Stage III |
Make /Model | LAIDONG/3TE30 |
Power /Rotation speed | 22.1kw(30HP)@2300rpm |
Number of cylinder | 3 |
TRACK SYSTEM | |
Maximum Travel speed | 3.5km/h |
Width of track shoe(Rubber &steel track) | 230mm |
Number of track shoe per side(steel track only) | 38pcs |
Number of upper roller per side | 0 |
Number of bottom roller per side | 4 |
PERFORMANCE PARAMETER | |
Standard Bucket capacity | 0.1m³ |
Swing speed | 12rpm |
Maximum Grade ability | 30° |
Maximum Bucket digging force | 15.3KN |
Maximum Arm digging force | 10.5KN |
Hydraulic system pressure | 18Mpa |
Machine weight | 2200kg |
MACHINE SIZE | |
Overall dimension (L*W*H) | 4170mm*1300mm*2280mm |
Axle base/Track length on ground | 1230mm |
Track gauge | 1070mm |
Minimum Ground clearance | 230mm |
Swing radius at tail | 1180mm |
WORKING RANGE | |
Maximum Digging height | 3700mm |
Maximum Dumping height | 2290mm |
Maximum Digging depth | 2450mm |
Maximum Vertical digging depth | 2160mm |
Maximum Digging radius | 4370mm |
Minimum swing radius | 2020mm |
Maximum Lifting height of blade | 240mm |
Maximum Cutting depth of blade | 310mm |
Boom swing angle(Left/Right) | 70°/50° |
Shipping method | 2 units in 20GP container |
