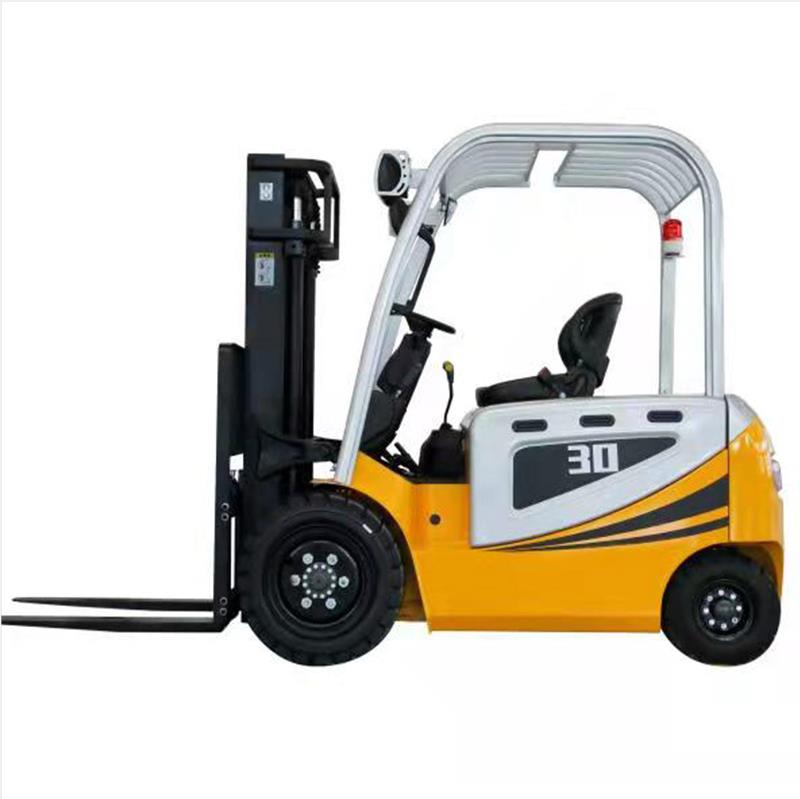

Electric Forklift Dealer Near Me
Cpd25 Electric Forklift Features :
1, Small Turning Radius, Flexible Operation.
2, Low Cost, High Efficiency
3, No Voice, No Pollution
4, Beautiful Design
5, Led Light
6, Usa Control System
Product Details
1.Safety Performance
2. Ergonomics Design
3. Environmental Friendly
4. Chinese Well-Known Forklift Manufacturer
5. Container Mast (Ex:2-Stage Full Free Mast Of 3m, 3-Stage Full Free Mast Of 4.5m/ 4.8m),
Aspect Shifter, Fork Positioner,Longer Forks, Fork Extension For Option.
The Following Items Are Optional:
Tires: Pneumatic And Solid Tire
Color: Yellow,Red,Orange, Green, Blue Or Customized.
Controller: Sme/Zapi/Curtis
Motor: Ac/Dc
| Model | FE25 | FE30 | ||
| Driving Mode | seated | seated | ||
| Rated Capacity | Q | kg | 2500 | 3000 |
| Load Center | C | mm | 500 | 500 |
| Power Mode | lead-acid battery | lead-acid battery | ||
| Wheelbase | L1 | mm | 1600 | 1850 |
| Tyre Type | solid tyre | Pneumatic tyre | ||
| Front Track | W3 | mm | 1010 | 1002 |
| Rear Track | W2 | mm | 880 | 994 |
| Tyre Size(Front) | 6.5-10 | 28x9-15 | ||
| Tyre Size(Rear) | 16x6-8 | 18x7-8 | ||
| Front Overhang | L2 | mm | 410 | 467 |
| Height,Mast Retraction | H1 | mm | 2030 | 2057 |
| Free Lift Height | H3 | mm | / | 120 |
| Maximum Lift Height | H | mm | 3000 | 3000 |
| Height,Mast Extended | H2 | mm | 4055 | 4200 |
| Overhead Guard Height | H4 | mm | 2110 | 2200 |
| Lateral Fork Adjustment(Outside Of Forks) | W5 | mm | 1040/100 | 1100/244 |
| Fork Size(Txwxl) | T*W*L4 | mm | 40*122*1070 | 45*122*1070 |
| Overall Length | L＇ | mm | 2330 | 2547 |
| (Fork Excluded) | ||||
| Overall Width | W1 | mm | 1160 | 1225 |
| Turning Radius | R | mm | 2370 | 2300 |
| Ground Clearance Under Mast | H5 | mm | 88 | 82 |
| Ground Clearance At Center Of Wheelbase(Full Load) | H6 | mm | 110 | 145 |
| Width Of Aisle Right-Angle Stacking | Ast | mm | 3750 | 4100 |
| (Pallet 1000X1000Mm Clearance 200Mm) | ||||
| Width Of Aisle Right-Angle Stacking | Ast | mm | 3950 | 4300 |
| (Pallet 1200X1200Mm Clearance 200Mm) | ||||
| Lifting Speed,Full Load/Without Load | mm/s | 210/250 | 200/300 | |
| Lowering Speed,Full Load/Without Load | mm/s | 450 | 450 | |
| Service Mass(With Battery) | kg | 3150 | 4300 | |
| Battery Voltage /Nominal Capacity | V/Ah | 72V/210Ah | 72V/260Ah | |
| Battery Weight | kg | 360 | 430 | |
| Driving Motor Power-60 Minutes | kW | 9 | 9 | |
| Lifting Motor Power-15 Minutes | kW | 7.5 | 9 | |
| Driving Motor Controlling Mode | MOSFET/AC | MOSFET/AC | ||
| Lifting Motor Controlling Mode | MOSFET/AC | MOSFET/AC | ||
| Service Brake/Parking Brake | Hydraulic/Mechanical | Hydraulic/Mechanical |
Details
| General | Model | FD25 | |
| Rated capacity | kg | 2500 | |
| Load center | mm | 500 | |
| Power type | Diesel | ||
| Transmission | Hydraulic/Mechanical | ||
| Dimensions | Lifting height | mm | 3000 |
| Free lifting height | mm | 60 | |
| Turning radius | mm | 2450 | |
| Overall length | mm | 3605 | |
| Overall width | mm | 1160 | |
| Overall height (mast lowered) | mm | 2095 | |
| Overall height (mast raised) | mm | 4080 | |
| Overall height (overhead guard) | mm | 2095 | |
| Fork length | mm | 1070 | |
| Fork width | mm | 122 | |
| Fork thickness | mm | 40 | |
| Performance | Max. driving speed (with/without load) | km/h | 17/19 |
| Max. lifting speed (with load) | mm/s | 400 | |
| Max. traction (with/without load) | kn | 15/10 | |
| Gradeability (with/without load) | % | 15/20 | |
| Tilting angles (forward/backward) | ° | 6/12 | |
| Service weight | kg | 3600 | |
| Engine | Engine model | 490BPG | |
| Power | kw | 37 | |
| Rated speed | rpm | 2500 | |
| Wheel | Front overhang | mm | 451 |
| Wheel base | mm | 1640 | |
| Front tread | mm | 970 | |
| Rear tread | mm | 970 | |
| Front tire | 7.00-12 | ||
| Rear tire | 6.00-9 |
