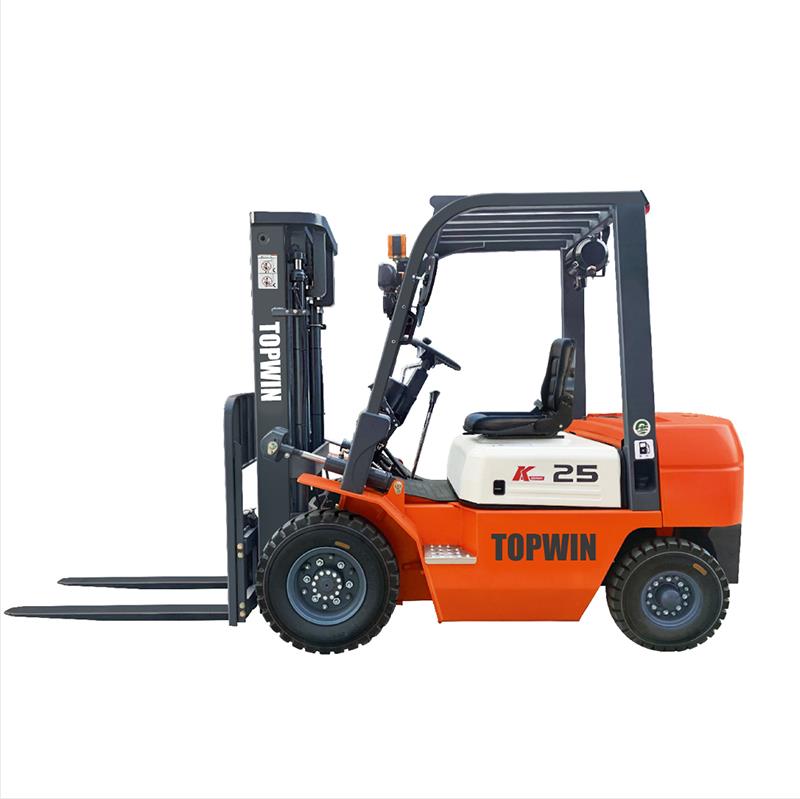

2.5T Small Diesel Forklift For Sale
Model ：FD25
Load Capacity: 2500kg
Standard Mast: 2-Stage
Max. Lifting Height: 3m
Certificate: Iso,Ce
Product Details
Although Strict Satisfactory Manage Has Been Carried Out In The Course Of The Manufacturing Process, To Make Certain Our Clients Can Acquire Excessive Overall Performance Forklifts, All Of Our Forklifts Will Be Examined Once More Before Delivery. If No Longer Handed Any Test, Our Forklift Will No Longer Been Allowed To Depart The Factory.
If The Storage Time Exceeds 1 Month, We Want To Do Ordinary Protection And Checking Out Till It Depart The Factory.
| Model | FD25 |
| Rated Lifting Weight ,Kg | 2500 |
| Load Center ,Mm | 500 |
| Power | Diesel |
| Max. Lifting Speed (Full Load) ,Mm∕S | 400 |
| Max. Travel Speed (Full Load/Unload) ,Km/H | 17∕19 |
| Max. Traction Force (Full Load/Unload), Kn | 15∕10 |
| Grade-Ability (Full / No Load) ,% | 15∕20 |
| H1 Lifting Height ,Mm | 3000 |
| Free Lifting Height ,Mm | 60 |
| Mast Inclination (Α Front / Β Rear), Degree | 6∕12 |
| Min. Turning Radius ,Mm | 2450 |
| Min. Right Angle Channel ,Mm | 2050 |
| Min. Ground Clearance ,Mm | 110 |
| A Overall Length (Including Forks) ,Mm | 3605 |
| B Overall Width ,Mm | 1160 |
| H Overall Height (Mast Retraction) ,Mm | 2095 |
| H2 Overall Height (Full Extension Of Mast) ,Mm | 4080 |
| H3 Overhead Guard Height ,Mm | 2095 |
| A1 Front Overhang ,Mm | 451 |
| A2 Wheelbase ,Mm | 1640 |
| B1 Wheel Treat Front ,Mm | 970 |
| B2 Wheel Treat Rear ,Mm | 970 |
| Front Tyre | 7.00-12 |
| Rear Tyre | 6.00-9 |
| Weight ,Kg | 3600 |
| B3 Fork Width,,Mm | 122 |
| H4 Fork Thickness ,Mm | 40 |
| Fork Bracket Height ,Mm | 1000 |
| A3 Standard Fork Length ,Mm | 1070 |
| Engine | China stage Ⅲ |
| Rated Power Kw | 36.8 |
| Speed At Rated Power Rpm | 2500 |
| Maximum Torque Nm | 157 |
| Speed At Maximum Torque Rpm | 1800 |
| Transmission | Mechanical |
Details
| General | Model | FD25 | |
| Rated capacity | kg | 2500 | |
| Load center | mm | 500 | |
| Power type | Diesel | ||
| Transmission | Hydraulic/Mechanical | ||
| Dimensions | Lifting height | mm | 3000 |
| Free lifting height | mm | 60 | |
| Turning radius | mm | 2450 | |
| Overall length | mm | 3605 | |
| Overall width | mm | 1160 | |
| Overall height (mast lowered) | mm | 2095 | |
| Overall height (mast raised) | mm | 4080 | |
| Overall height (overhead guard) | mm | 2095 | |
| Fork length | mm | 1070 | |
| Fork width | mm | 122 | |
| Fork thickness | mm | 40 | |
| Performance | Max. driving speed (with/without load) | km/h | 17/19 |
| Max. lifting speed (with load) | mm/s | 400 | |
| Max. traction (with/without load) | kn | 15/10 | |
| Gradeability (with/without load) | % | 15/20 | |
| Tilting angles (forward/backward) | ° | 6/12 | |
| Service weight | kg | 3600 | |
| Engine | Engine model | 490BPG | |
| Power | kw | 37 | |
| Rated speed | rpm | 2500 | |
| Wheel | Front overhang | mm | 451 |
| Wheel base | mm | 1640 | |
| Front tread | mm | 970 | |
| Rear tread | mm | 970 | |
| Front tire | 7.00-12 | ||
| Rear tire | 6.00-9 |
