Electric Fork Truck

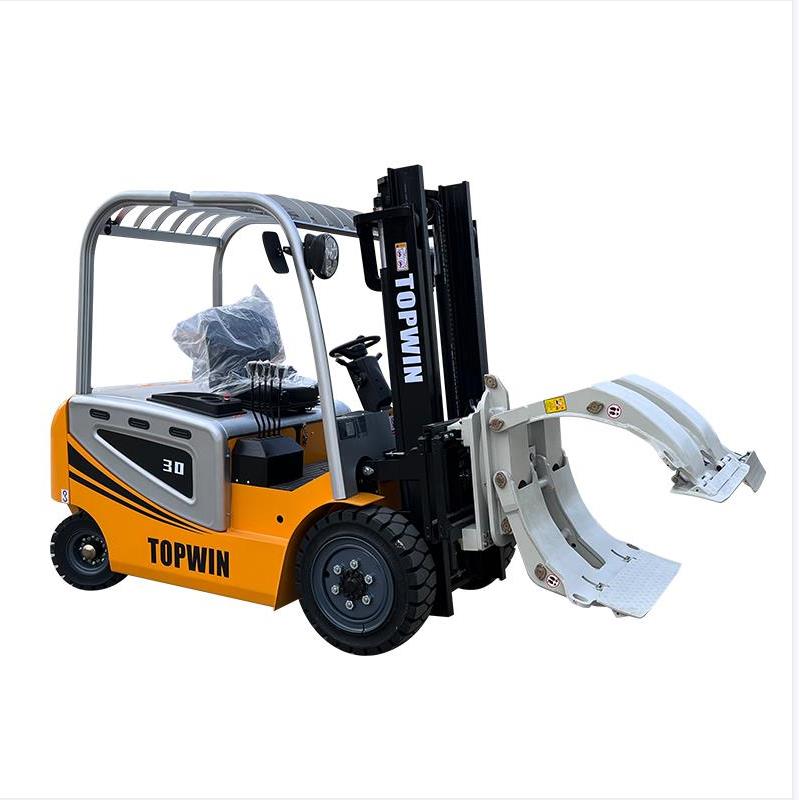

TOPWIN 3ton 3t 3.0t 3000kg Electric Forklift Battery Forklift
With 3m 4.5m 6m Full Free Mast Ce Iso
With Side Shifter Fork Positioner Clamp
Product Details
Pre-Sales Service
1. Inquiry And Consulting Support.
2. Photos&Videos For Your Order Before Shipment.
3. View Our Factory.
After-Sales Service
4. Training How To Instal The Machine, Training How To Use The Machine.
5. Whole Life-Time Supply For Spareparts.
The Following Items Are Optional:
Tires: Pneumatic And Solid Tire
Color: Yellow,Red,Orange, Green, Blue Or Customized.
Controller: Sme/Zapi/Curtis
Mast: Standard Wide-View 2 Stage Mast, Wide-View 2-Stage Full Free Mast,
Wide-View 3-Stage Full Free Mast.
Motor: Ac/Dc
| Model | FE25 | FE30 | ||
| Driving Mode | seated | seated | ||
| Rated Capacity | Q | kg | 2500 | 3000 |
| Load Center | C | mm | 500 | 500 |
| Power Mode | lead-acid battery | lead-acid battery | ||
| Wheelbase | L1 | mm | 1600 | 1850 |
| Tyre Type | solid tyre | Pneumatic tyre | ||
| Front Track | W3 | mm | 1010 | 1002 |
| Rear Track | W2 | mm | 880 | 994 |
| Tyre Size(Front) | 6.5-10 | 28x9-15 | ||
| Tyre Size(Rear) | 16x6-8 | 18x7-8 | ||
| Front Overhang | L2 | mm | 410 | 467 |
| Height,Mast Retraction | H1 | mm | 2030 | 2057 |
| Free Lift Height | H3 | mm | / | 120 |
| Maximum Lift Height | H | mm | 3000 | 3000 |
| Height,Mast Extended | H2 | mm | 4055 | 4200 |
| Overhead Guard Height | H4 | mm | 2110 | 2200 |
| Lateral Fork Adjustment(Outside Of Forks) | W5 | mm | 1040/100 | 1100/244 |
| Fork Size(Txwxl) | T*W*L4 | mm | 40*122*1070 | 45*122*1070 |
| Overall Length | L＇ | mm | 2330 | 2547 |
| (Fork Excluded) | ||||
| Overall Width | W1 | mm | 1160 | 1225 |
| Turning Radius | R | mm | 2370 | 2300 |
| Ground Clearance Under Mast | H5 | mm | 88 | 82 |
| Ground Clearance At Center Of Wheelbase(Full Load) | H6 | mm | 110 | 145 |
| Width Of Aisle Right-Angle Stacking | Ast | mm | 3750 | 4100 |
| (Pallet 1000X1000Mm Clearance 200Mm) | ||||
| Width Of Aisle Right-Angle Stacking | Ast | mm | 3950 | 4300 |
| (Pallet 1200X1200Mm Clearance 200Mm) | ||||
| Lifting Speed,Full Load/Without Load | mm/s | 210/250 | 200/300 | |
| Lowering Speed,Full Load/Without Load | mm/s | 450 | 450 | |
| Service Mass(With Battery) | kg | 3150 | 4300 | |
| Battery Voltage /Nominal Capacity | V/Ah | 72V/210Ah | 72V/260Ah | |
| Battery Weight | kg | 360 | 430 | |
| Driving Motor Power-60 Minutes | kW | 9 | 9 | |
| Lifting Motor Power-15 Minutes | kW | 7.5 | 9 | |
| Driving Motor Controlling Mode | MOSFET/AC | MOSFET/AC | ||
| Lifting Motor Controlling Mode | MOSFET/AC | MOSFET/AC | ||
| Service Brake/Parking Brake | Hydraulic/Mechanical | Hydraulic/Mechanical |
Details
| General | Model | FD25 | |
| Rated capacity | kg | 2500 | |
| Load center | mm | 500 | |
| Power type | Diesel | ||
| Transmission | Hydraulic/Mechanical | ||
| Dimensions | Lifting height | mm | 3000 |
| Free lifting height | mm | 60 | |
| Turning radius | mm | 2450 | |
| Overall length | mm | 3605 | |
| Overall width | mm | 1160 | |
| Overall height (mast lowered) | mm | 2095 | |
| Overall height (mast raised) | mm | 4080 | |
| Overall height (overhead guard) | mm | 2095 | |
| Fork length | mm | 1070 | |
| Fork width | mm | 122 | |
| Fork thickness | mm | 40 | |
| Performance | Max. driving speed (with/without load) | km/h | 17/19 |
| Max. lifting speed (with load) | mm/s | 400 | |
| Max. traction (with/without load) | kn | 15/10 | |
| Gradeability (with/without load) | % | 15/20 | |
| Tilting angles (forward/backward) | ° | 6/12 | |
| Service weight | kg | 3600 | |
| Engine | Engine model | 490BPG | |
| Power | kw | 37 | |
| Rated speed | rpm | 2500 | |
| Wheel | Front overhang | mm | 451 |
| Wheel base | mm | 1640 | |
| Front tread | mm | 970 | |
| Rear tread | mm | 970 | |
| Front tire | 7.00-12 | ||
| Rear tire | 6.00-9 |
