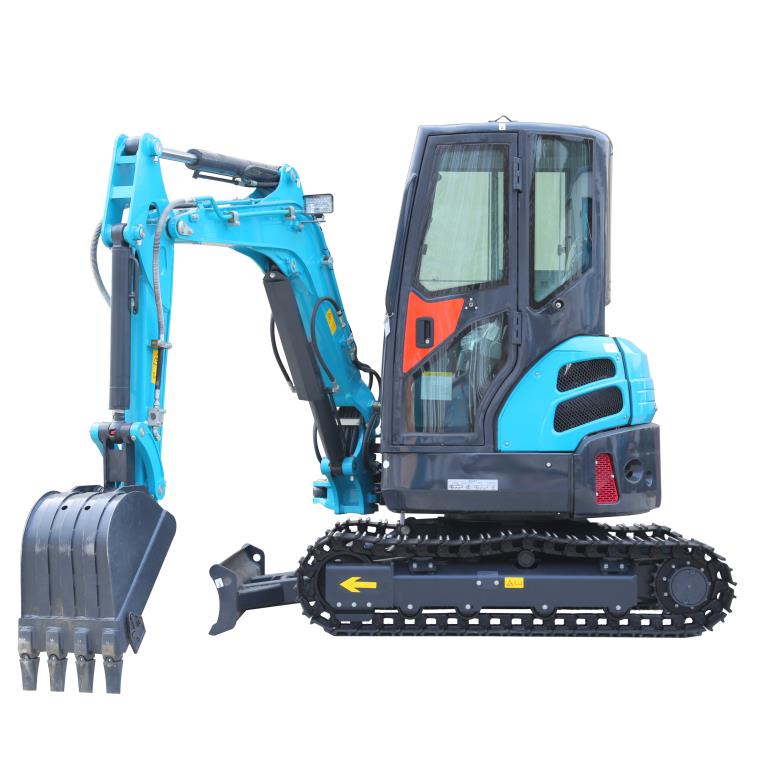

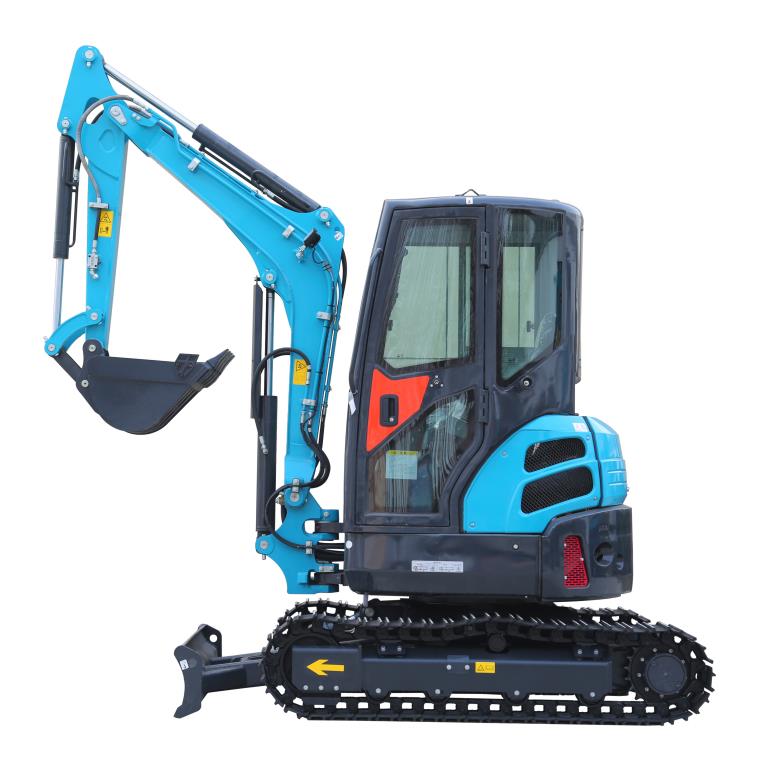

3500Kg Excavator With Auger Attachment
Zero Tail Excavator
Japan Engine Kubota
High-End Configuration And Excellent Performance
More powerful
Product Details
3500Kg Excavator With Auger Attachment Is Small And Gorgeous In Dimension And Turning Radius, In The Main Appropriate For Landscaping, City Construction, Pipeline Laying And Different Working Conditions. It Makes Use Of Imported Engine, Providing Low Noise And Gorgeous Competitively Priced Efficiency.
The Complete Machine Boasts Fantastic Inching Overall Performance And Small Have An Effect On By Means Of Advantage Of The Ideal Matching Of The Engine And The Hydraulic Components.
Specification
| Model | E35 |
| ENGINE | Excavator With Auger Attachment |
| Emission Standard | EURO V/ |
| EPA engine | |
| Make /Model | YANMAR/ |
| KUBOTA | |
| Power | 20.5kw/ |
| 18.2kw | |
| Number of cylinder | 4 |
| TRACK SYSTEM | |
| Max. Travel speed | 3.0/4.2 km/h |
| Width of track shoe | 300mm |
| Number of bottom roller per side | 4 |
| PERFORMANCE | |
| Standard Bucket capacity | 0.09m³ |
| Swing speed | 8.5rpm |
| Max. Grade ability | 58%(30°) |
| Max. Bucket digging force | 26.5KN |
| Max. Arm digging force | / |
| Hydraulic system pressure | 21Mpa |
| Operating weight | 3515kg |
| MACHINE SIZE | |
| Overall dimension (L*W*H),mm | 4485*1550*2440 |
| Track length | 2100mm |
| Track gauge | 1250mm |
| Min. Ground clearance | 290mm |
| Swing radius at tail | 790mm |
| WORKING RANGE | |
| Max. Digging height | 4600mm |
| Max. Dumping height | 3175mm |
| Max. Digging depth | 2880mm |
| Max. Vertical digging depth | 2305mm |
| Max. Digging radius | 4965mm |
| Min. swing radius | 2035mm |
| Max. Lifting height of blade | 360mm |
| Max. Cutting depth of blade | 340mm |
| Boom swing angle(Left/Right) | 70°/50° |
| Shipping method | 1/4 units |
| 20 feet container/ | |
| 40feet HC container |
European customer feedback
| Model | E35 |
| ENGINE | |
| Emission Standard | EURO V/ |
| EPA engine | |
| Make /Model | YANMAR/ |
| KUBOTA | |
| Power | 20.5kw/ |
| 18.2kw | |
| Number of cylinder | 4 |
| TRACK SYSTEM | |
| Max. Travel speed | 3.0/4.2 km/h |
| Width of track shoe | 300mm |
| Number of bottom roller per side | 4 |
| PERFORMANCE | |
| Standard Bucket capacity | 0.09m³ |
| Swing speed | 8.5rpm |
| Max. Grade ability | 58%(30°) |
| Max. Bucket digging force | 26.5KN |
| Max. Arm digging force | / |
| Hydraulic system pressure | 21Mpa |
| Operating weight | 3515kg |
| MACHINE SIZE | |
| Overall dimension (L*W*H),mm | 4485*1550*2440 |
| Track length | 2100mm |
| Track gauge | 1250mm |
| Min. Ground clearance | 290mm |
| Swing radius at tail | 790mm |
| WORKING RANGE | |
| Max. Digging height | 4600mm |
| Max. Dumping height | 3175mm |
| Max. Digging depth | 2880mm |
| Max. Vertical digging depth | 2305mm |
| Max. Digging radius | 4965mm |
| Min. swing radius | 2035mm |
| Max. Lifting height of blade | 360mm |
| Max. Cutting depth of blade | 340mm |
| Boom swing angle(Left/Right) | 70°/50° |
| Shipping method | 1/4 units |
| 20 feet container/ | |
| 40feet HC container |
