3 Ton 360 Digger For Sale
1. Optional Yanmar (Epa Certified) / Changchai / Laidong Engines, To Meet Environmental Protection, Cost Control And Other Needs.
2. It Adopts The First-Line Brand High-Precision 8-Way Multi-Way Valve. The Valve Core Has Its Own Buffer Function And Is Controlled By Ecu Computer, Which Makes The Action More Flexible.
3. 1.3 Tons, 1.5 Tons, 1.6 Tons, 1.8 Tons, 2 Tons, 3 Tons Can Be Equipped With High Precision Pilot Control System.
1. Excavators With Compact Dimensions Can Easily Drive Through Narrow Passages And Doors.
2. Retractable Undercarriage And Dozer Blade Allow The Excavators To Be Configured For Excellent Working Stability And Optimum Performance.
3. Powerful Engine And Perfectly Matched Hydraulics Provide Efficient, Economical And Reliable Performance For The Toughest Of Jobs.
4. Bucket Hoses Are Well Protected Within The Boom And The Cylinder Is Mounted Above The Structure.
5. The Operator Area Is Spacious And Laid Out To Provide Comfort And Ease Of Operation.
6. Excellent Engine Provides Excellent Power With Minimal Fuel Use For More Productivity Per Tank.
| Model | E30 |
| ENGINE | |
| Emission Standard | EURO V/ |
| EPA engine | |
| Make /Model | YANMAR/ |
| KUBOTA | |
| Power | 20.5kw/ |
| 18.2kw | |
| Number of cylinder | 4 |
| TRACK SYSTEM | |
| Max. Travel speed | 3.0/4.2 km/h |
| Width of track shoe | 300mm |
| Number of bottom roller per side | 4 |
| PERFORMANCE | |
| Standard Bucket capacity | 0.09m³ |
| Swing speed | 8.5rpm |
| Max. Grade ability | 58%(30°) |
| Max. Bucket digging force | 26.5KN |
| Max. Arm digging force | / |
| Hydraulic system pressure | 21Mpa |
| Operating weight | 3000kg |
| MACHINE SIZE | |
| Overall dimension (L*W*H),mm | 4485*1550*2440 |
| Track length | 2100mm |
| Track gauge | 1250mm |
| Min. Ground clearance | 290mm |
| Swing radius at tail | 790mm |
| WORKING RANGE | |
| Max. Digging height | 4600mm |
| Max. Dumping height | 3175mm |
| Max. Digging depth | 2880mm |
| Max. Vertical digging depth | 2305mm |
| Max. Digging radius | 4965mm |
| Min. swing radius | 2035mm |
| Max. Lifting height of blade | 360mm |
| Max. Cutting depth of blade | 340mm |
| Boom swing angle(Left/Right) | 70°/50° |
| Shipping method | 1/4 units |
| 20 feet container/ | |
| 40feet HC container |

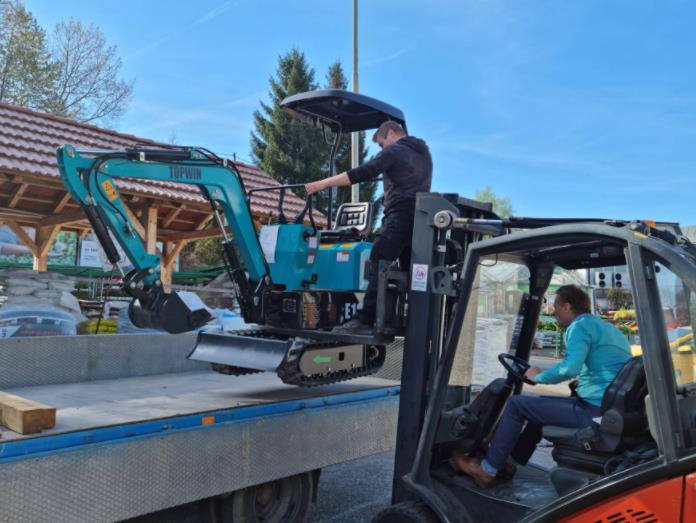

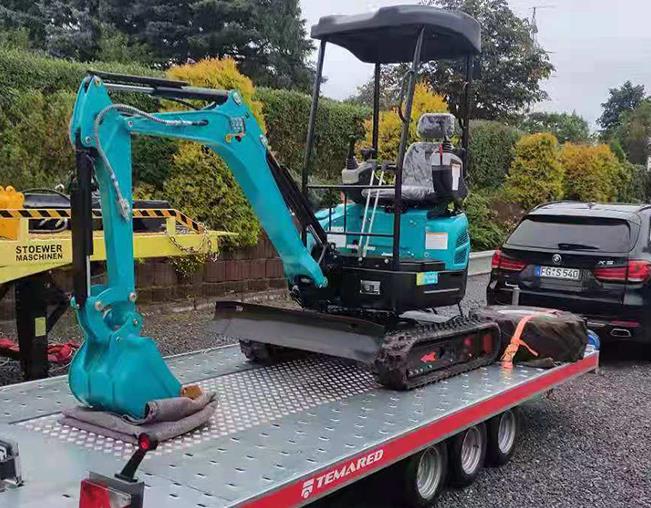

European Customer Feedback
| Model | E35 |
| ENGINE | |
| Emission Standard | EURO V/ |
| EPA engine | |
| Make /Model | YANMAR/ |
| KUBOTA | |
| Power | 20.5kw/ |
| 18.2kw | |
| Number of cylinder | 4 |
| TRACK SYSTEM | |
| Max. Travel speed | 3.0/4.2 km/h |
| Width of track shoe | 300mm |
| Number of bottom roller per side | 4 |
| PERFORMANCE | |
| Standard Bucket capacity | 0.09m³ |
| Swing speed | 8.5rpm |
| Max. Grade ability | 58%(30°) |
| Max. Bucket digging force | 26.5KN |
| Max. Arm digging force | / |
| Hydraulic system pressure | 21Mpa |
| Operating weight | 3515kg |
| MACHINE SIZE | |
| Overall dimension (L*W*H),mm | 4485*1550*2440 |
| Track length | 2100mm |
| Track gauge | 1250mm |
| Min. Ground clearance | 290mm |
| Swing radius at tail | 790mm |
| WORKING RANGE | |
| Max. Digging height | 4600mm |
| Max. Dumping height | 3175mm |
| Max. Digging depth | 2880mm |
| Max. Vertical digging depth | 2305mm |
| Max. Digging radius | 4965mm |
| Min. swing radius | 2035mm |
| Max. Lifting height of blade | 360mm |
| Max. Cutting depth of blade | 340mm |
| Boom swing angle(Left/Right) | 70°/50° |
| Shipping method | 1/4 units |
| 20 feet container/ | |
| 40feet HC container |
