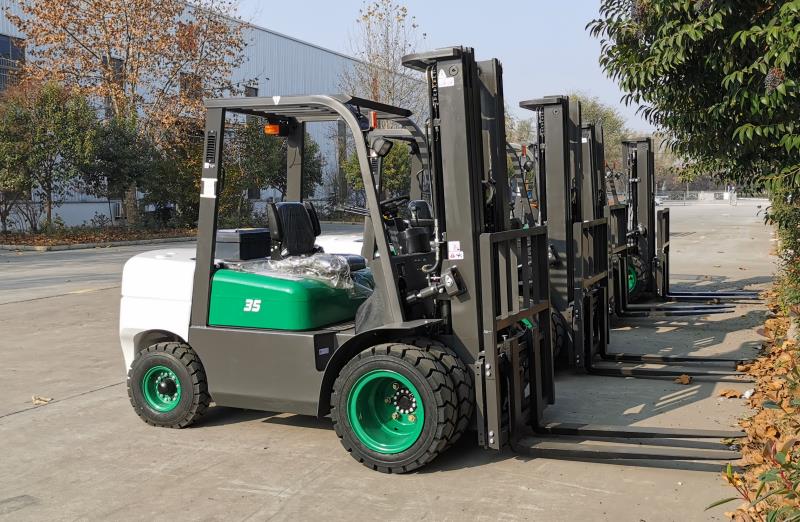

3500Kg Forklift Truck
Topwin 3500KG Diesel Forklift Truck- Standard Configuration: Forklift 3.5 Tons
1. Fd35: 3.5T Diesel Forklift
2. Double Mast, Lift Height 4m 4.5m 5m
3.The Japanese Nissan engine Or Isuzu engine
4. The Chinese Xinchai Or Quanchai Engine Or Changchai Engine
5. Hydraulic Transmission
6. Pneumatic Tyre
7. Fork Length 1070mm
1. Mast: Triplex Full Free 4m 4.5m 6m 7m Mast
2. Engine: Optional Japan Original
Nissan engine Or Isuzu engine3. Side Shifter: China Anqing Or Usa Cascade Brand

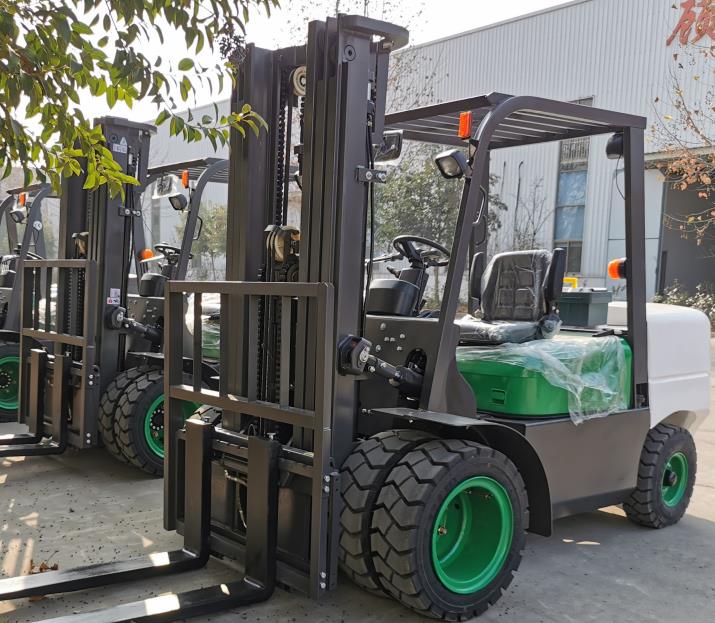

4. Tires: Double The Front Tires, Stable Tires
5. Cab With Fan, Heater In The Cab, Dual Front Wheel,Solid Tires,High-Grade Seat, High Exhaust, Median Exhaust,
Tilting And Lifting Cylinder Sleeve,Dual Air Filter, Oil Type Air Filter,Fire Extinguisher Bottle, Fire Cover, A490Bpg/C490Bpg495Bpg/498Bpg Diesel Engine, Eur Ii Japan Isuzu 4Jg2Pe-01 Engine, Japan Mitsubishi 4G64 Engine And Lpg System,2-Stage Mast With Full-Free Lift,Special Higher Mast, 3-Stage Mast With Full-Free Lift,
Lengthen Fork,Special Fork For Stone Factory,Special-Big Radiator,Radiator For Transmission Oil,Widen Fork Arm Carrier.
6. Attachment:
Side shifter,Fork positioner, Side shift and fork positioner,Bale clamps,Paper roll clamps,Flat bag clamps, Carton clamps,Block clamps,Rotator,
Rotating clamps,Hinged fork,Sanitation fork,Bucket, Load stabilizers,
Single double pallets handlers, Log holder,Tyre clamps, Push/Pull,
Fertilizer throw-out,Drum clamps,Carpet boom,Cargo boom.
| Model | CPCD30 | CPCD35 | |
| Rated Lifting Load | kg | 3000 | 3500 |
| Load Center Distance | mm | 500 | |
| Free lifting Height | mm | 160 | |
| Overall Length(With Fork/Without Fork) | mm | 3752/2682 | 3763/2693 |
| Width | mm | 1225 | |
| Overhead Guard Height | mm | 2090 | |
| Wheelbase | mm | 1700 | |
| Minimum Ground Clearance | mm | 135 | |
| Mast Tilt Angle(Front/Rear) | % | 6/12 | |
| Tire No(Front ) | 28X9-15-14PR | ||
| Tire No(Rear) | 6.5-10-10PR | ||
| Minimum Turning Radius(Outside) | mm | 2400 | 2420 |
| Minimum Right Angle Aisle Width | mm | 4260 | |
| Fork Size | mm | 1220X125X45 | |
| Maxmum Working Speed(Full-Load/No Load) | km/h | 18/19 | 19/19 |
| Maxmum Speed Speed(Full-Load/No Load) | mm/s | 440/480 | 330/370 |
| Maximum Gradeability (Full-Load/No Load) | % | 15/20 | |
| Total Weight | kg | 4250 | 4500 |
| Engine | xinchai 490.40KW | ||
| Type Of Power Shift | Hydraulic Transmission/Automatic | ||
Details
| General | Model | FD25 | |
| Rated capacity | kg | 2500 | |
| Load center | mm | 500 | |
| Power type | Diesel | ||
| Transmission | Hydraulic/Mechanical | ||
| Dimensions | Lifting height | mm | 3000 |
| Free lifting height | mm | 60 | |
| Turning radius | mm | 2450 | |
| Overall length | mm | 3605 | |
| Overall width | mm | 1160 | |
| Overall height (mast lowered) | mm | 2095 | |
| Overall height (mast raised) | mm | 4080 | |
| Overall height (overhead guard) | mm | 2095 | |
| Fork length | mm | 1070 | |
| Fork width | mm | 122 | |
| Fork thickness | mm | 40 | |
| Performance | Max. driving speed (with/without load) | km/h | 17/19 |
| Max. lifting speed (with load) | mm/s | 400 | |
| Max. traction (with/without load) | kn | 15/10 | |
| Gradeability (with/without load) | % | 15/20 | |
| Tilting angles (forward/backward) | ° | 6/12 | |
| Service weight | kg | 3600 | |
| Engine | Engine model | 490BPG | |
| Power | kw | 37 | |
| Rated speed | rpm | 2500 | |
| Wheel | Front overhang | mm | 451 |
| Wheel base | mm | 1640 | |
| Front tread | mm | 970 | |
| Rear tread | mm | 970 | |
| Front tire | 7.00-12 | ||
| Rear tire | 6.00-9 |
