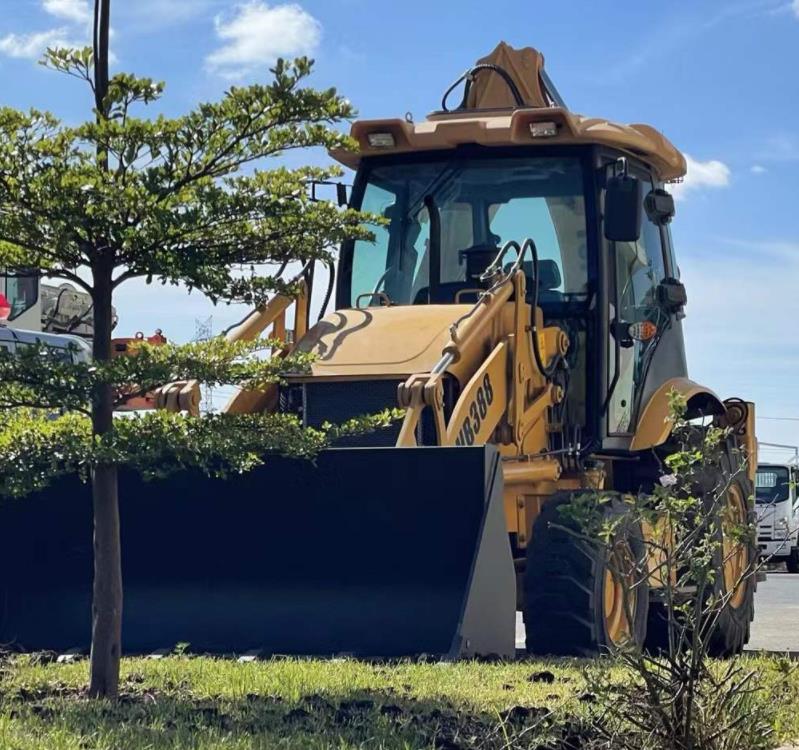

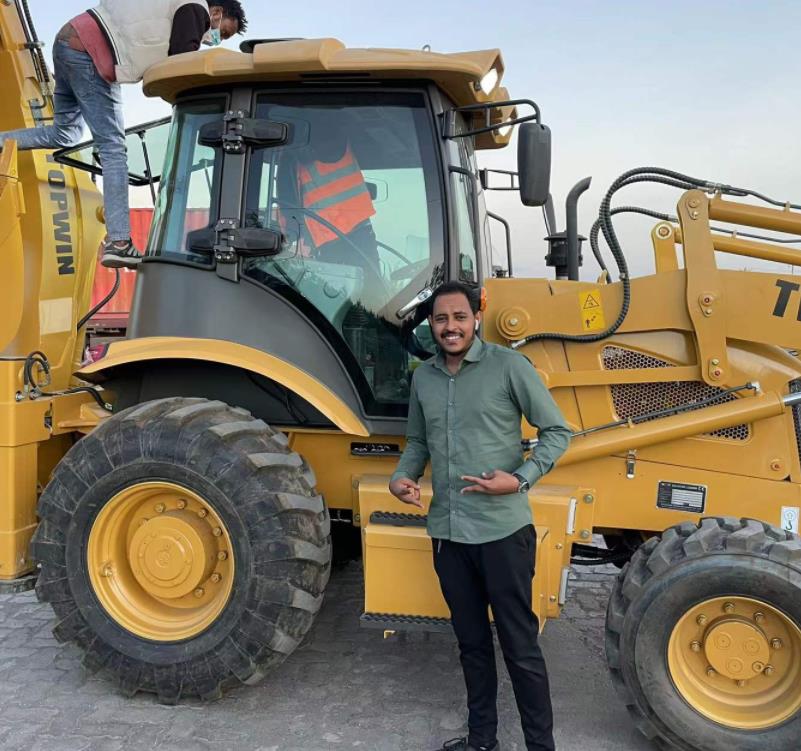

4X4 Backhoe Loader For Sale
To Combined Excavator And Loader As One Machine, Fully Equipped With All Function Of Mini Excavator Ad Loader, More Suitable For Operating In a Narrow Space, Convenient And Flexible, Reducing The Whole Purchase Cost.
Powered Through a World Type Engine Turning In Unmatched And Reliable Electricity In Its Classification But It Produce Low Noise And Low Emission.
Ergonomic Designed Cab With Elevated Typical Visibility And Properly Positioned Controls. They Are Effortless To See, Convenient To Attain And Effortless To Handle.
Perfectly Matched Electricity Educate System, The Differential Lock On Rear Axle Aids To Supply Excessive Tractive Force. Oil-Bath Brake Lets In Unilateral Braking Feature To Be Executed, Requiring Minimal Turning Radius.Easy Engine Access, Handy Placement Of Key Components And Fluid Top Off Points.
The Pilot Valve Managed Loader, As Properly As The Backhoe Valve, Makes For Effortless And Bendy Operation Of The Backhoe Loader.
Smartly Designed, The Extendible Dipper For The Excavator Radically Reduces The Journeying Distance And Improves The Working Efficiency.
The Arm Of The Wheel Loader Can Be Prolonged To Amplify The Working Range.
| ansport Dimension | Overall Operating Weight | 8200KG |
| mm L*W*H | 6230×2365×3752 | |
| Wheel base | 2200mm | |
| Min. Ground Clearance | 300mm | |
| Bucket Capacity | 1.0m3 | |
| Breakout Force | 38KN | |
| Loading Lifting Capacity | 2500KG | |
| Bucket Dumping Height | 2650mm | |
| Bucket Dumping Distance | 1025mm | |
| Digging Depth | 52mm | |
| Backhoe Capacity | 0.3 m3 | |
| Max. Digging Depth | 4085mm | |
| Swing Angle of Excavator Grab | 190 degree | |
| Max. Pulling Force | 39KN | |
| Engine | Model | YC4A105Z-T20 |
| Rated Power | 75KW | |
| Steering System | Model of Steering Device | BZZ5-250 |
| Steering Angle | ±36 degree | |
| Min. turning radius | 6581mm | |
| Pressure of the system | 12Mpa | |
| Axle | Manufacturer | Feicheng Axle Factory |
| Main Transmission Type | Double Reduction | |
| Final Reducer | Single Stage Final Reducer | |
| Rated Loader of Axle | 4/18.5t | |
| Torque Converter | Model | YJ280 |
| Type | Single-stage Three Elements | |
| Max. Efficiency | 84.40% | |
| Inlet Pressure | 0.4Mpa-0.55 Mpa | |
| Outlet Pressure | 1.2Mpa-1.5 Mpa | |
| Cooling Method | Oil-cooling Pressure Circulation | |
| Gearbox | Type | Fixed Shaft Power Transmission |
| Oil Pressure of Clutch | 1373Kpa-1569 Kpa | |
| Gears | Two Gears Ahead, Two Gears Astern | |
| Max.Speed | 22Km/h | |
| Tyre | Model | 14-17.5/19.5L-24 |
| Pressure of Front wheel | 0.22 Mpa | |
| Pressure of Back Wheel | 0.22 Mpa | |
| Brake System | Service Brake | Air Over Oil Caliper Brake |
| External Type | ||
| Self-regulation | ||
| Self-balance | ||
| Emergency Brake | Operation Power Implementing brake | |
| Manual Operation Power Terminating Brake | ||
| Hydraulic System | Digging Power of Excavator Grab | 46.5KN |
| Digging Power of Dipper | 31KN | |
| Bucket Lifting Time | 5.4S | |
| Bucket Lowering Time | 3.1S | |
| Bucket Discharge Time | 2.0S |
| Model | E60 |
| Operating weight | 5.82 |
| Bucket capacity | 0.22 |
| Engine model | YANMAR 4TNV98C |
| Rated power (kw) | 42.4 KW |
| Hydraulic pump model | KYB |
| Max.flow (L/min) | 160 |
| Working pressure (Mpa) | 24.5 |
| Control valve model | KYB |
| Swing motor model | INLINE |
| Travel motor model | EDDIE |
| Fuel tank capacity (L) | 125 |
| Hydraulic oil tank capacity (L) | 110 |
| Travel speed (km/h) | 2.5/4.0 |
| Swing speed (r/min) | 10 |
| Max. climbing degree (%) | 70 |
| Arm digging force | 26.1 |
| Bucket digging force (KN) | 36.7 |
| Average grounding pressure (Kpa) | 34 |
| A-Overall length (mm) | 5943 |
| B-Overall width (mm) | 2000 |
| C-Overall height (to top of boom)(mm) | 1995 |
| D-Overall height (to top of cab)(mm) | 2619 |
| E-Counterweight ground clearance(mm) | 740 |
| F-Min. ground clearance (mm) | 360 |
| G-Tail swing radius (mm) | 1745 |
| J-Track length (mm) | 2000 |
| J-Track length (mm) | 2665 |
| K-Track gauge (mm) | 1600 |
| L-Track width (mm) | 2000 |
| M-Track shoe width (mm) | 400 |
| N-Turntable width (mm) | 1790 |
| O-Max. digging height (mm) | 5889 |
| P-Max. dumping height (mm) | 4201 |
| Q-Max. digging depth (mm) | 3812 |
| R-Max. vertical wall digging depth (mm) | 3008 |
| T-Max. digging reach (mm) | 6257 |
| U-Max. digging reach at ground level (mm) | 6102 |
| V-Min. swing radius (mm) | 2585 |
| X-Distance between center of rotation and tail length (mm) | 1745 |
| Y-Track shoe thickness (mm) | 7 |
| Z-Height of counterweight (mm) | 1062 |
| A1-Ground length (in transportion)(mm) | 3375 |
| Arm length (mm) | 1580 |
| Boom length (mm) | 3050 |
