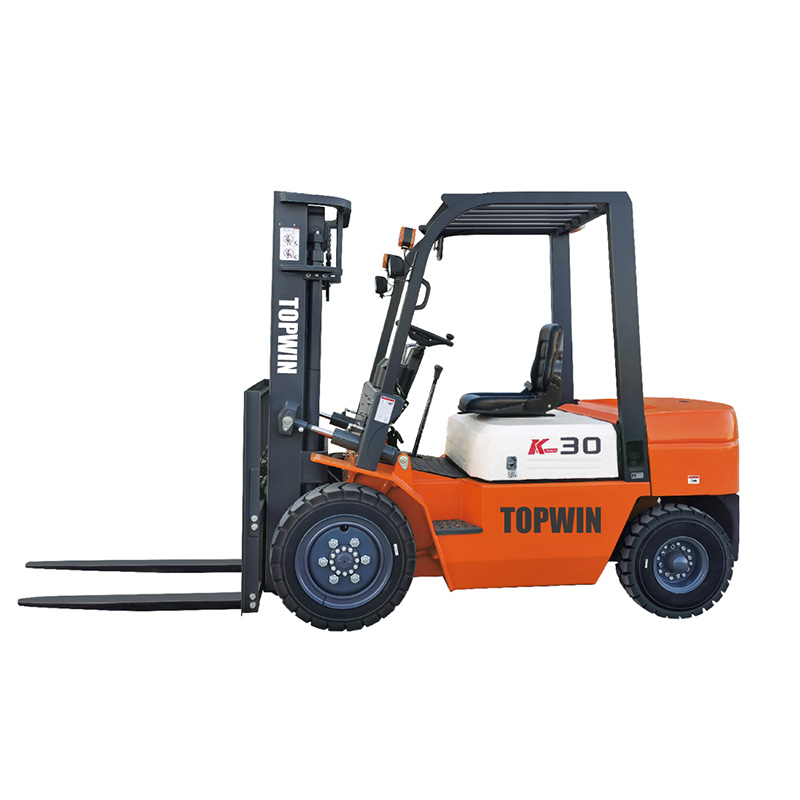

3 Ton Diesel Forklift
Topwin 3 Ton Forklift Truck- Standard Configuration: Diesel Forklift 3 Tons
1. Fd30: 3 Ton Diesel Forklift
2. Double Mast, Lift Height 3m
3. The Chinese Xinchai Or Quanchai Engine Or Dachai Engine
4. Hydraulic Transmission
5. Pneumatic Tyre
6. Fork Length 1070mm
Product Details
1. Mast: Triplex Full Free 4m 4.5m 6m 7m Mast
2. Engine: Optional Japan Original Mitsubishi / Yanmar Engine
3. Side Shifter: China Anqing Or Usa Cascade Brand
4. Tires: Double The Front Tires, Stable Tires
5. Attachment: Vip Solution, Block Clamps, Paper Roll Clamps, Bale Clamps
6. Others: Double Air Filter, Vertical Exhaust, Fork Extension, Cab, Fork Positioner
| Model | FD30 |
| Rated Lifting Weight ,Kg | 3000 |
| Load Center ,Mm | 500 |
| Power | Diesel |
| Max. Lifting Speed (Full Load) ,Mm∕S | 505/475 |
| Max. Travel Speed (Full Load/Unload) ,Km/H | 18∕20 |
| Max. Traction Force (Full Load/Unload), Kn | 15.5∕10.5 |
| Grade-Ability (Full / No Load) ,% | 15∕20 |
| H1 Lifting Height ,Mm | 3000 |
| Free Lifting Height ,Mm | 80 |
| Mast Inclination (Α Front / Β Rear), Degree | 6∕12 |
| Min. Turning Radius ,Mm | 2530 |
| Min. Right Angle Channel ,Mm | 2110 |
| Min. Ground Clearance ,Mm | 135 |
| A Overall Length (Including Forks) ,Mm | 3970 |
| B Overall Width ,Mm | 1230 |
| H Overall Height (Mast Retraction) ,Mm | 2110 |
| H2 Overall Height (Full Extension Of Mast) ,Mm | 4270 |
| H3 Overhead Guard Height ,Mm | 2110 |
| A1 Front Overhang ,Mm | 465 |
| A2 Wheelbase ,Mm | 1775 |
| B1 Wheel Treat Front ,Mm | 1000 |
| B2 Wheel Treat Rear ,Mm | 970 |
| Front Tyre | 28×9-15 |
| Rear Tyre | 6.50-10 |
| Weight ,Kg | 4250/4290 |
| B3 Fork Width,,Mm | 122 |
| H4 Fork Thickness ,Mm | 45 |
| Fork Bracket Height ,Mm | 1225 |
| A3 Standard Fork Length ,Mm | 1220 |
| Engine | China stage Ⅲ |
| Rated Power Kw | 36.8 |
| Speed At Rated Power Rpm | 2500 |
| Maximum Torque Nm | 157 |
| Speed At Maximum Torque Rpm | 1800 |
| Transmission | Mechanical |
Details
| General | Model | FD25 | |
| Rated capacity | kg | 2500 | |
| Load center | mm | 500 | |
| Power type | Diesel | ||
| Transmission | Hydraulic/Mechanical | ||
| Dimensions | Lifting height | mm | 3000 |
| Free lifting height | mm | 60 | |
| Turning radius | mm | 2450 | |
| Overall length | mm | 3605 | |
| Overall width | mm | 1160 | |
| Overall height (mast lowered) | mm | 2095 | |
| Overall height (mast raised) | mm | 4080 | |
| Overall height (overhead guard) | mm | 2095 | |
| Fork length | mm | 1070 | |
| Fork width | mm | 122 | |
| Fork thickness | mm | 40 | |
| Performance | Max. driving speed (with/without load) | km/h | 17/19 |
| Max. lifting speed (with load) | mm/s | 400 | |
| Max. traction (with/without load) | kn | 15/10 | |
| Gradeability (with/without load) | % | 15/20 | |
| Tilting angles (forward/backward) | ° | 6/12 | |
| Service weight | kg | 3600 | |
| Engine | Engine model | 490BPG | |
| Power | kw | 37 | |
| Rated speed | rpm | 2500 | |
| Wheel | Front overhang | mm | 451 |
| Wheel base | mm | 1640 | |
| Front tread | mm | 970 | |
| Rear tread | mm | 970 | |
| Front tire | 7.00-12 | ||
| Rear tire | 6.00-9 |
