Forklift 3 Ton

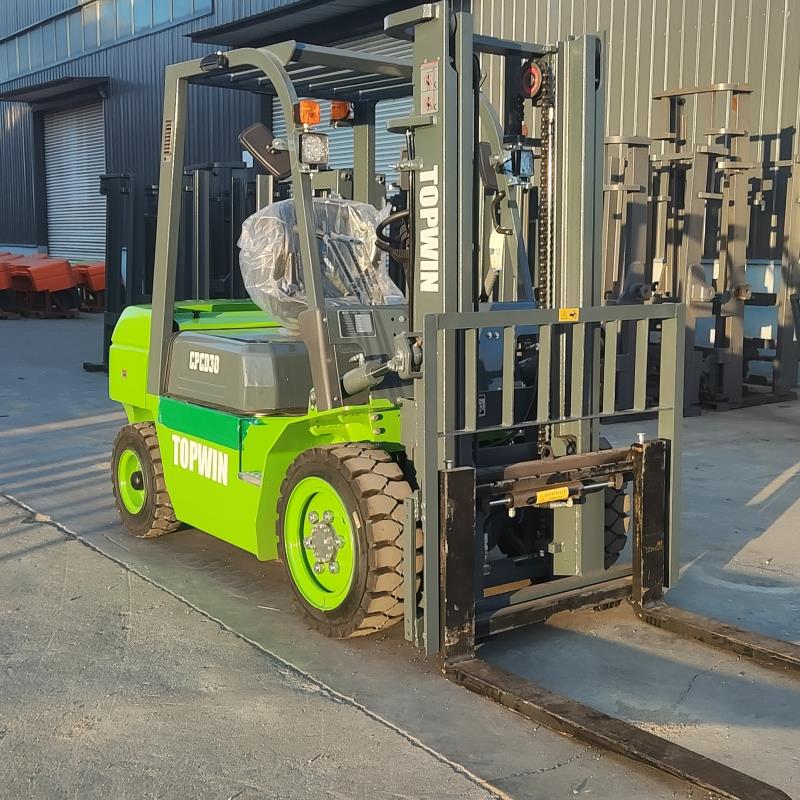

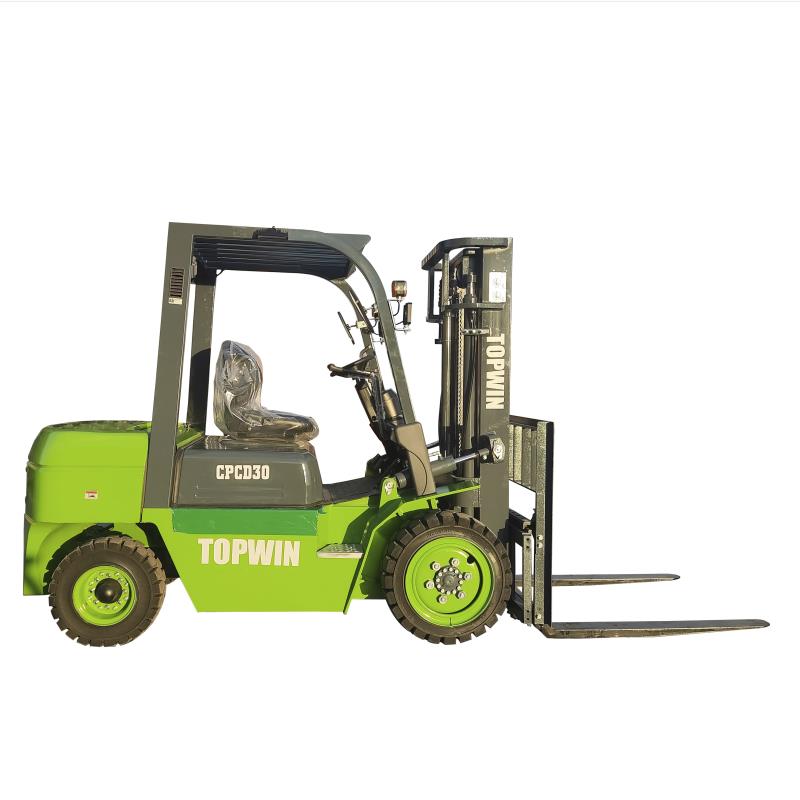

Topwin 3 Ton Diesel Forklift Truck- Standard Configuration: Diesel Forklift 3 Tons
1. Fd30: 3000Kg Forklift
2. Double Mast, Lift Height 3m 4m 5m
3. The Chinese Xinchai Or Quanchai Engine Or Dachai Engine
4. Hydraulic Transmission
5. Pneumatic Tyre
6. Fork Length 1070mm
Outline: Applied The Superior Define Designing Method, The Truck Is Designed With Stream,
Sporty Outline, And Thanks To The New Design, All The Uncovered Components Are Metallic Made, Which Is Association And Reliable.
Safety: Thanks To The Lengthy Wheelbase Design, The Longitudinal Steadiness Of Entire Truck Is Improved,
The Residual Load Capability At Identical Peak Is Elevated Greatly. At The Equal Time, It Prolongs
The Working Existence Time Of Steerage Tyre With The Aid Of Decreasing The Rear Axle Load.
Comfortable: The Smaller Steerage Wheel, More House For Foot And Operator Space, Wider Ahead Visibility,
All These Enhance Operator's Relief And Launch Operator's Fatigue.
The Utilized Imperative Engine Cowl Strengthens The Stress Of The Cowl And Reduces The Noise At The Equal Time.
Maintenance: Easy Get Right Of Entry To To Engine And Transmission Due To Utilized Bolt Kind Mounted The Front Plate,
Appreciably Enhancing The Comfort Of Each Day Renovation And Repair.
Reliability: Enlarged Move Area Of Rear Ohg Improves The Air Consumption Capacity, And Reduces Air Consumption Resistance,
Which Makes Interior Combustion Extra Complete And Prolongs Engine Life.
| Model | FD30 |
| Rated Lifting Weight ,Kg | 3000 |
| Load Center ,Mm | 500 |
| Power | Diesel |
| Max. Lifting Speed (Full Load) ,Mm∕S | 505/475 |
| Max. Travel Speed (Full Load/Unload) ,Km/H | 18∕20 |
| Max. Traction Force (Full Load/Unload), Kn | 15.5∕10.5 |
| Grade-Ability (Full / No Load) ,% | 15∕20 |
| H1 Lifting Height ,Mm | 3000 |
| Free Lifting Height ,Mm | 80 |
| Mast Inclination (Α Front / Β Rear), Degree | 6∕12 |
| Min. Turning Radius ,Mm | 2530 |
| Min. Right Angle Channel ,Mm | 2110 |
| Min. Ground Clearance ,Mm | 135 |
| A Overall Length (Including Forks) ,Mm | 3970 |
| B Overall Width ,Mm | 1230 |
| H Overall Height (Mast Retraction) ,Mm | 2110 |
| H2 Overall Height (Full Extension Of Mast) ,Mm | 4270 |
| H3 Overhead Guard Height ,Mm | 2110 |
| A1 Front Overhang ,Mm | 465 |
| A2 Wheelbase ,Mm | 1775 |
| B1 Wheel Treat Front ,Mm | 1000 |
| B2 Wheel Treat Rear ,Mm | 970 |
| Front Tyre | 28×9-15 |
| Rear Tyre | 6.50-10 |
| Weight ,Kg | 4250/4290 |
| B3 Fork Width,,Mm | 122 |
| H4 Fork Thickness ,Mm | 45 |
| Fork Bracket Height ,Mm | 1225 |
| A3 Standard Fork Length ,Mm | 1220 |
| Engine | China stage Ⅲ |
| Rated Power Kw | 36.8 |
| Speed At Rated Power Rpm | 2500 |
| Maximum Torque Nm | 157 |
| Speed At Maximum Torque Rpm | 1800 |
| Transmission | Mechanical |
Details
| General | Model | FD25 | |
| Rated capacity | kg | 2500 | |
| Load center | mm | 500 | |
| Power type | Diesel | ||
| Transmission | Hydraulic/Mechanical | ||
| Dimensions | Lifting height | mm | 3000 |
| Free lifting height | mm | 60 | |
| Turning radius | mm | 2450 | |
| Overall length | mm | 3605 | |
| Overall width | mm | 1160 | |
| Overall height (mast lowered) | mm | 2095 | |
| Overall height (mast raised) | mm | 4080 | |
| Overall height (overhead guard) | mm | 2095 | |
| Fork length | mm | 1070 | |
| Fork width | mm | 122 | |
| Fork thickness | mm | 40 | |
| Performance | Max. driving speed (with/without load) | km/h | 17/19 |
| Max. lifting speed (with load) | mm/s | 400 | |
| Max. traction (with/without load) | kn | 15/10 | |
| Gradeability (with/without load) | % | 15/20 | |
| Tilting angles (forward/backward) | ° | 6/12 | |
| Service weight | kg | 3600 | |
| Engine | Engine model | 490BPG | |
| Power | kw | 37 | |
| Rated speed | rpm | 2500 | |
| Wheel | Front overhang | mm | 451 |
| Wheel base | mm | 1640 | |
| Front tread | mm | 970 | |
| Rear tread | mm | 970 | |
| Front tire | 7.00-12 | ||
| Rear tire | 6.00-9 |
