Forklifts 3 Ton Diesel

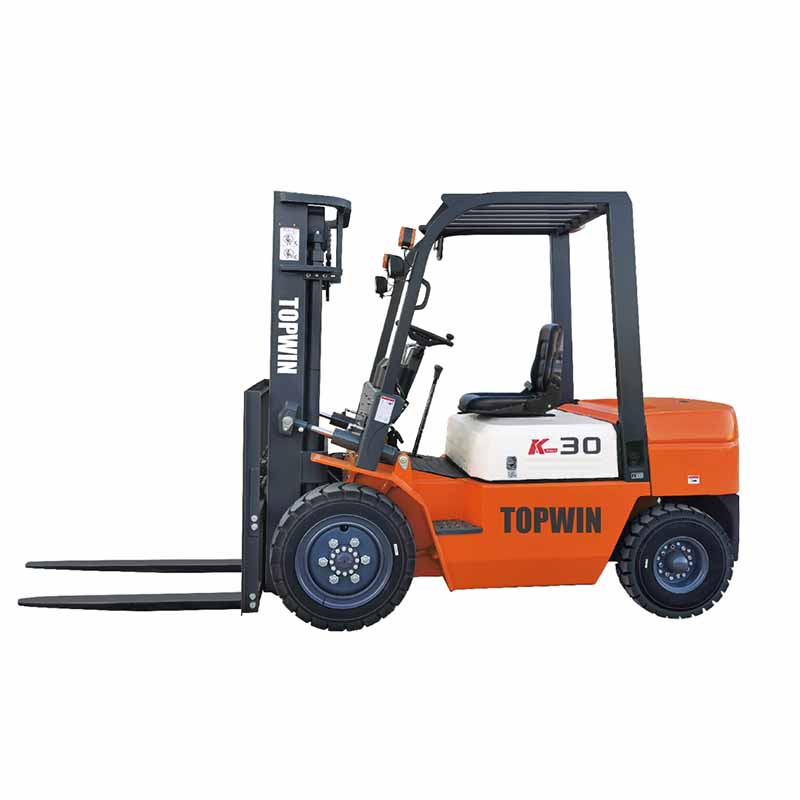

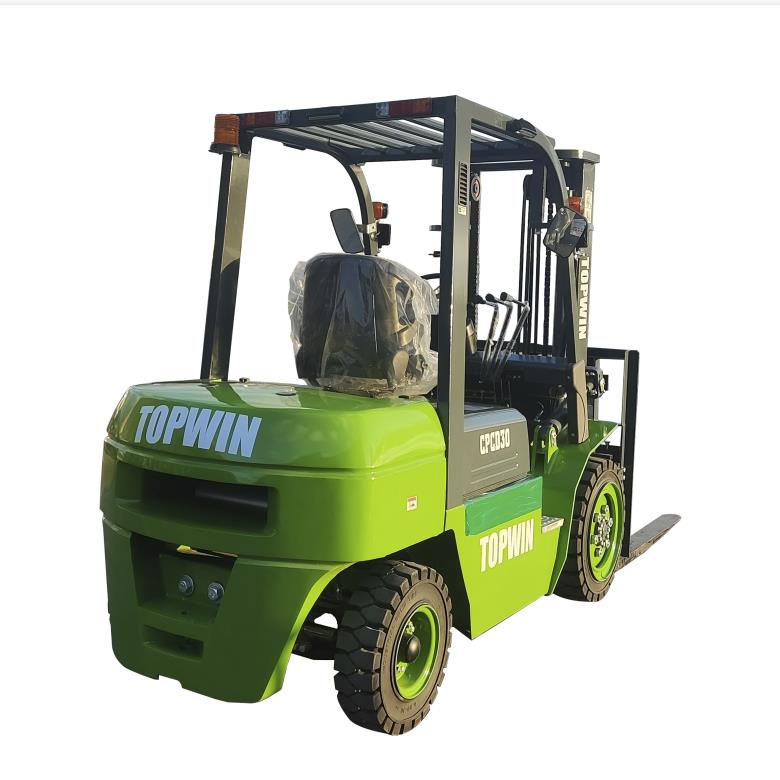

Topwin 3000Kg Diesel Forklift
1. Fd30: 3 000Kg Diesel Forklift
2. Double Mast, Lift Height 3m
3. The Chinese Xinchai Or Quanchai Engine Or Dachai Engine
4. Hydraulic Transmission
5. Pneumatic Tyre
6. Fork Length 1070mm
Product Details
1. Streamlined Exterior And Stunning Appearance
2. The Wide-View Mast Improves The Effectivity And Security Of Operations
3. Scientific Ergonomic Designs Make Sure The Remedy Of Driving
4. Buffer System For Guidance Axle
5. Overhead Consumption Device And Overhead Twin Air Filters
6. Integradl Hood Is Helpful In Warmth Insulation And Noise Discount
| Model | FD30 |
| Rated Lifting Weight ,Kg | 3000 |
| Load Center ,Mm | 500 |
| Power | Diesel |
| Max. Lifting Speed (Full Load) ,Mm∕S | 505/475 |
| Max. Travel Speed (Full Load/Unload) ,Km/H | 18∕20 |
| Max. Traction Force (Full Load/Unload), Kn | 15.5∕10.5 |
| Grade-Ability (Full / No Load) ,% | 15∕20 |
| H1 Lifting Height ,Mm | 3000 |
| Free Lifting Height ,Mm | 80 |
| Mast Inclination (Α Front / Β Rear), Degree | 6∕12 |
| Min. Turning Radius ,Mm | 2530 |
| Min. Right Angle Channel ,Mm | 2110 |
| Min. Ground Clearance ,Mm | 135 |
| A Overall Length (Including Forks) ,Mm | 3970 |
| B Overall Width ,Mm | 1230 |
| H Overall Height (Mast Retraction) ,Mm | 2110 |
| H2 Overall Height (Full Extension Of Mast) ,Mm | 4270 |
| H3 Overhead Guard Height ,Mm | 2110 |
| A1 Front Overhang ,Mm | 465 |
| A2 Wheelbase ,Mm | 1775 |
| B1 Wheel Treat Front ,Mm | 1000 |
| B2 Wheel Treat Rear ,Mm | 970 |
| Front Tyre | 28×9-15 |
| Rear Tyre | 6.50-10 |
| Weight ,Kg | 4250/4290 |
| B3 Fork Width,,Mm | 122 |
| H4 Fork Thickness ,Mm | 45 |
| Fork Bracket Height ,Mm | 1225 |
| A3 Standard Fork Length ,Mm | 1220 |
| Engine | China stage Ⅲ |
| Rated Power Kw | 36.8 |
| Speed At Rated Power Rpm | 2500 |
| Maximum Torque Nm | 157 |
| Speed At Maximum Torque Rpm | 1800 |
| Transmission | Mechanical |
Details
| General | Model | FD25 | |
| Rated capacity | kg | 2500 | |
| Load center | mm | 500 | |
| Power type | Diesel | ||
| Transmission | Hydraulic/Mechanical | ||
| Dimensions | Lifting height | mm | 3000 |
| Free lifting height | mm | 60 | |
| Turning radius | mm | 2450 | |
| Overall length | mm | 3605 | |
| Overall width | mm | 1160 | |
| Overall height (mast lowered) | mm | 2095 | |
| Overall height (mast raised) | mm | 4080 | |
| Overall height (overhead guard) | mm | 2095 | |
| Fork length | mm | 1070 | |
| Fork width | mm | 122 | |
| Fork thickness | mm | 40 | |
| Performance | Max. driving speed (with/without load) | km/h | 17/19 |
| Max. lifting speed (with load) | mm/s | 400 | |
| Max. traction (with/without load) | kn | 15/10 | |
| Gradeability (with/without load) | % | 15/20 | |
| Tilting angles (forward/backward) | ° | 6/12 | |
| Service weight | kg | 3600 | |
| Engine | Engine model | 490BPG | |
| Power | kw | 37 | |
| Rated speed | rpm | 2500 | |
| Wheel | Front overhang | mm | 451 |
| Wheel base | mm | 1640 | |
| Front tread | mm | 970 | |
| Rear tread | mm | 970 | |
| Front tire | 7.00-12 | ||
| Rear tire | 6.00-9 |
