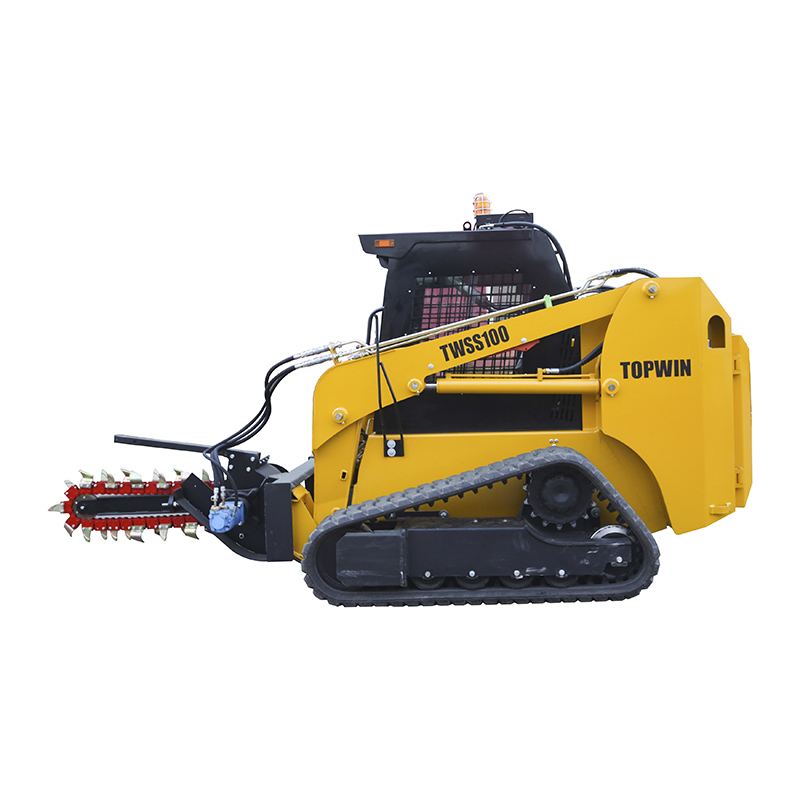

Crawler Track Skid Steer Loader TWSS100
TOPWIN TWSS100 with strong power and rich attachments, the TOPWIN skid-steer loader can better adapt to the operations in narrow space and is an ideal tool for road construction, municipal maintenance, port handling, garden maintenance, and pasture production, featuring low operation cost and remarkable economic benefits.
The international interchangeable quick-change coupling enables the change of tens of attachments, including sweeper, planer, breaking hammer, and ditcher, rapidly and conveniently.
TOPWIN TWSS100 with strong power and rich attachments, the TOPWIN skid-steer loader can better adapt to the operations in narrow space and is an ideal tool for road construction, municipal maintenance, port handling, garden maintenance, and pasture production, featuring low operation cost and remarkable economic benefits.
The international interchangeable quick-change coupling enables the change of tens of attachments, including sweeper, planer, breaking hammer, and ditcher, rapidly and conveniently.
SN | Model | LST100 (TWSS100) |
1 | Type | Tracked type |
2 | Operating load (kg) | 1200 |
3 | Max Speed(km/h) | 12/15 |
4 | Rated flux (L/min) | 88 |
5 | Tire(track) model | 320X84 |
6 | Rated power (kW/HP) | 74/100 |
7 | Fuel tank capacity (L) | 90 |
8 | Self weight bucket (kg) | 4500 |
A | Bucket capacity (m 3 ) | 0.55 |
B | Overall operating height (mm) | 4070 |
C | Height to bucket hinge pin (mm) | 3150 |
D | height to top of cab (mm) | 2160 |
E | Height to bottom of level bucket(mm) | 2983 |
F | Overall length without bucket(mm) | 3000 |
G | Overall length with bucket(mm) | 3700 |
H | Dumping angle at maximum height(° ) | 40 |
I | Dumping height(mm) | 2450 |
J | Dumping reach(mm) | 700 |
K | Rollback o bucket on ground(° ) | 30 |
L | Rollback of bucket at full height(° ) | 104 |
M | Wheelbase(mm) | 1500 |
N | Ground clearance(mm) | 200 |
O | Angle of departure(° ) | 20 |
P | Front turning radius without bucket(mm) | 1365 |
Q | Front tuning radius(mm) | 2200 |
R | Rear tuning radius(mm) | 1742 |
S | Rear axle to bumper (mm) | 938 |
T | Tread width, centerline to centerline (mm) | 1654 |
U | Width (mm) | 1994 |
W | Bucket width (mm) | 2030 |
