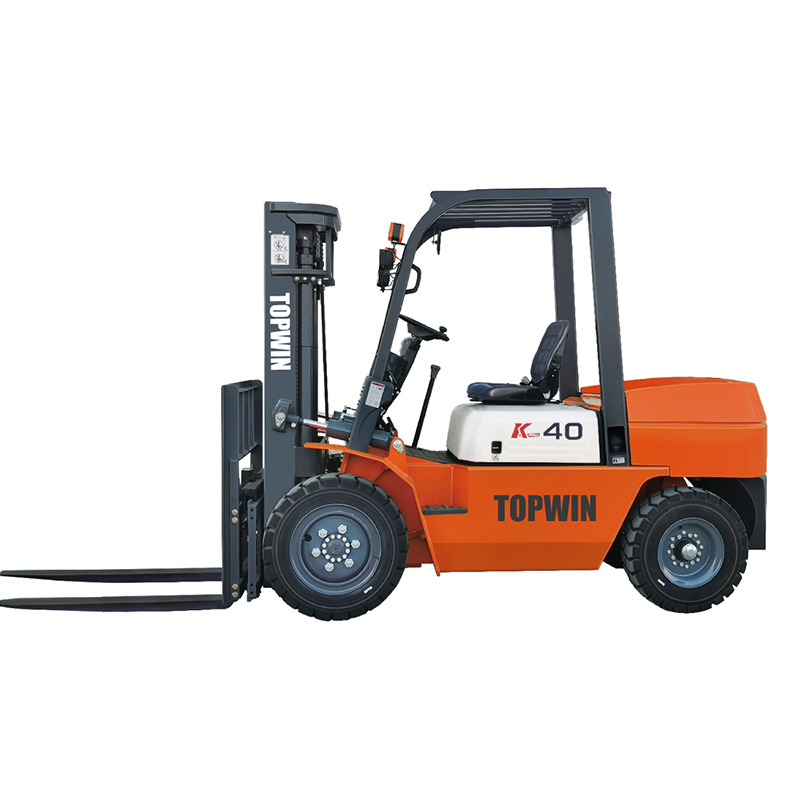

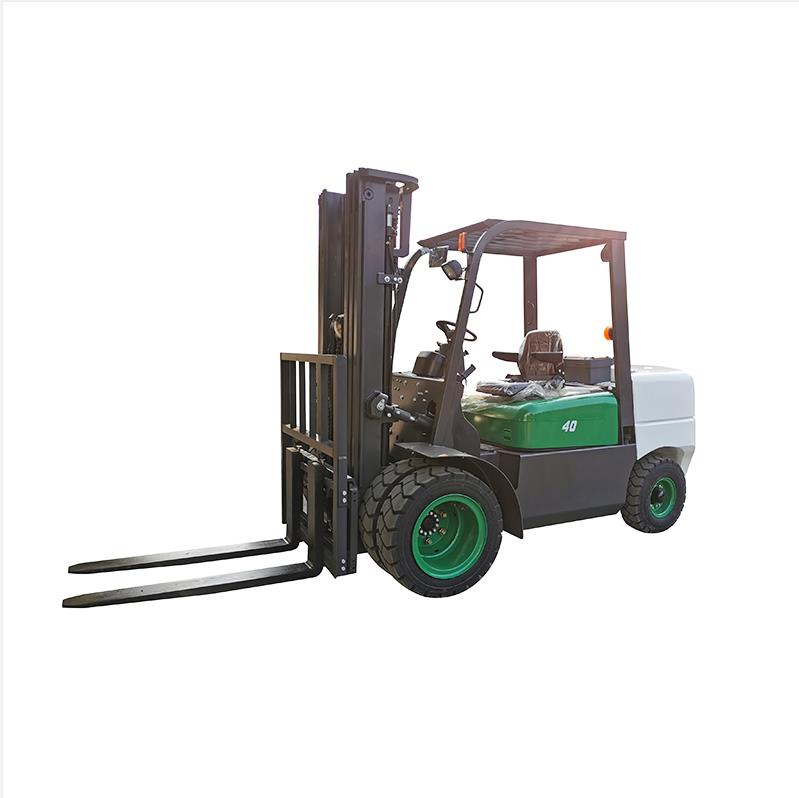

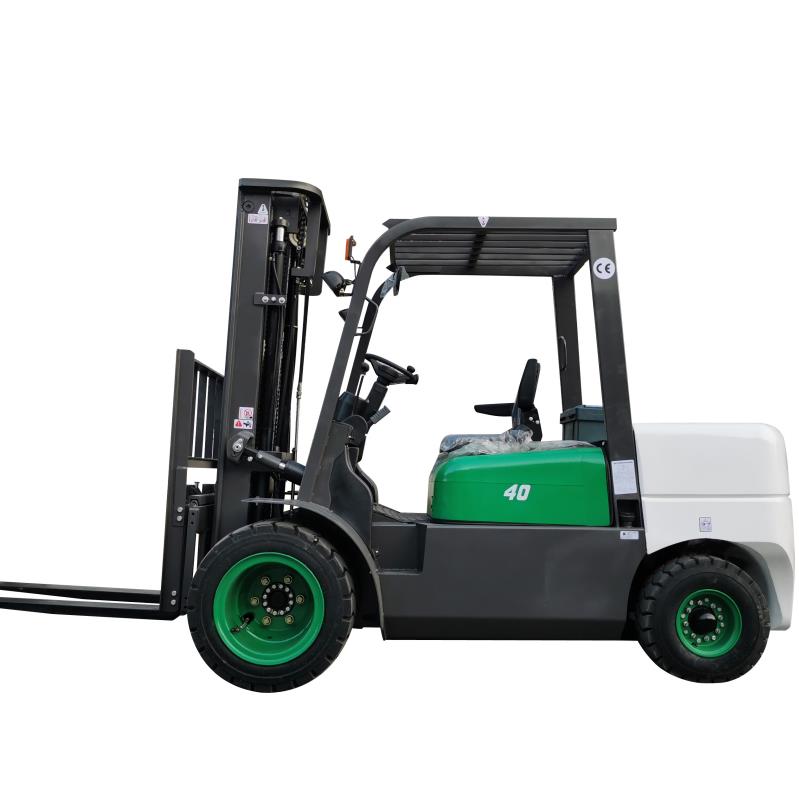

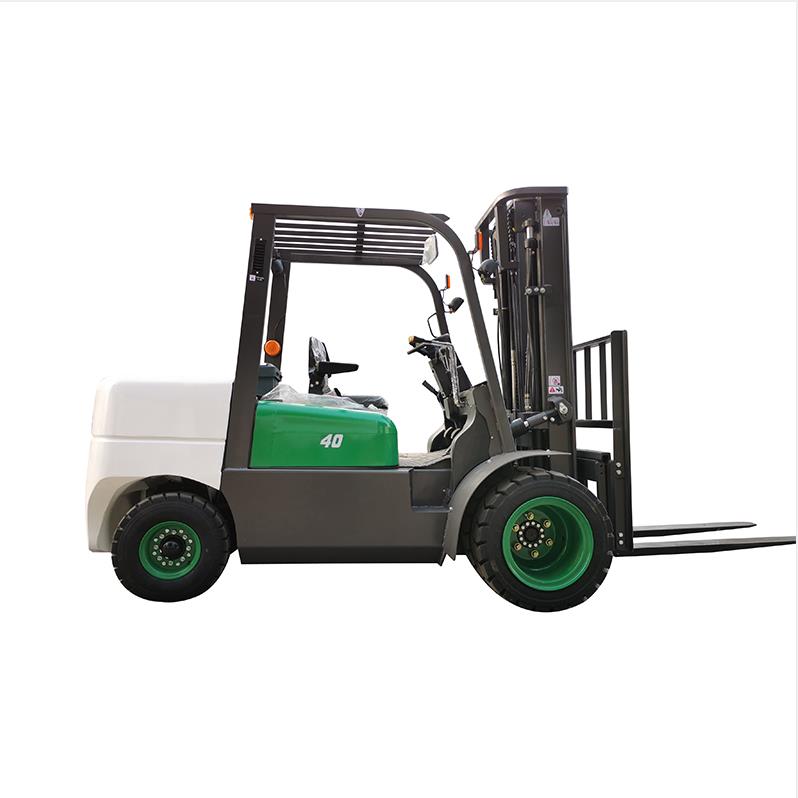

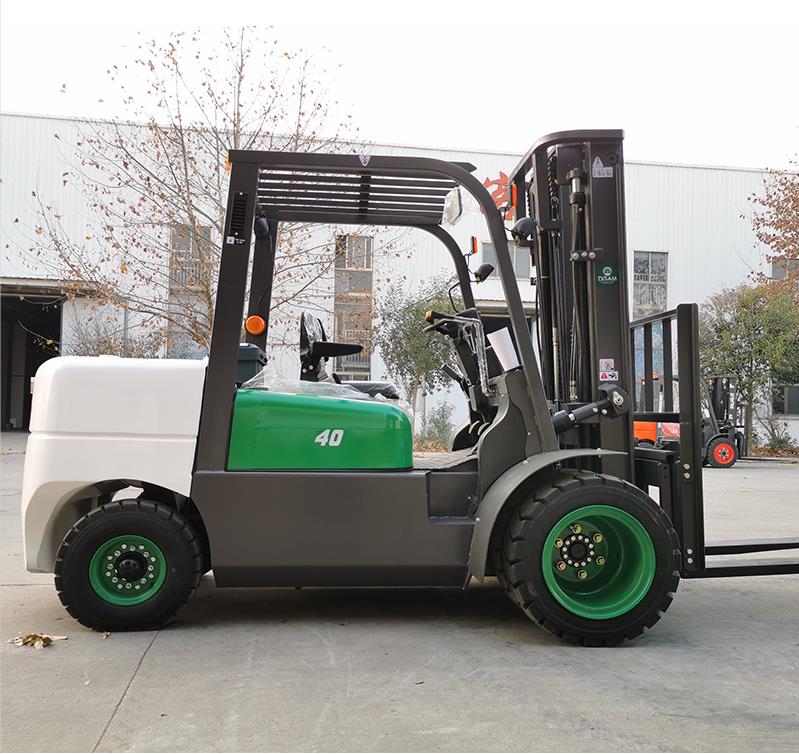

4 Ton Diesel Forklift
Topwin 4 Ton Forklift Truck- Standard Configuration
1. Fd40: 4 Ton Diesel Forklift
2. Double Mast, Lift Height 3m
3. The Chinese Xinchai Or Quanchai Engine Or Dachai Engine
4. Hydraulic Transmission
5. Pneumatic Tyre
6. Fork Length 1070mm
Main Features:
1. Equipped With Chinese Effective And Dependable Engines With Notable Environmental Performance; Original Imported Isu-Zu, Mit-Subishi And Cum-Mins Engines Are Optional.
2. Equipped With Ops Or Ors Seat And Brake Swap To Forestall Wrong Operation And Impervious The Driver And The Forklift From All Sides.
3. Install Non-Compulsory Three-Way Catalytic Gadget To Decrease The Dangerous Emission Beside Of Low Emission Engines; Adopt Soundproof Cotton To Ease Noise Andhigh Exhaust Machine As Choice To Limit Dust.
4. Install Heavy-Duty Using Axle To Make Sure Security Work At Terrible Working Conditions.
5. Adopt Superior Load Experience Technological Know-How Which Affords Glide For Steerage Gadget To Keep Power ,Protect Surroundings ,And Decrease The Machine Heat.
6. Equipped With The Effective And Environment Friendly Engine , Appropriate For The Europe Iii Emission Popular (Mitsubishi S6S-T)
| Model | FD35 | FD40 |
| Rated Lifting Weight ,Kg | 3500 | 4000 |
| Load Center ,Mm | 500 | 500 |
| Power | Diesel | Diesel |
| Max. Lifting Speed (Full Load) ,Mm∕S | 505/450 | 300 |
| Max. Travel Speed (Full Load/Unload) ,Km/H | 17∕19 | 18∕20 |
| Max. Traction Force (Full Load/Unload), Kn | 16∕11 | 16.5∕11.5 |
| Grade-Ability (Full / No Load) ,% | 15∕20 | 15∕20 |
| H1 Lifting Height ,Mm | 3000 | 3000 |
| Free Lifting Height ,Mm | 80 | 80 |
| Mast Inclination (Α Front / Β Rear), Degree | 6∕12 | 6∕12 |
| Min. Turning Radius ,Mm | 2540 | 2720 |
| Min. Right Angle Channel ,Mm | 2110 | 2320 |
| Min. Ground Clearance ,Mm | 135 | 135 |
| A Overall Length (Including Forks) ,Mm | 4000 | 4100 |
| B Overall Width ,Mm | 1230 | 1230 |
| H Overall Height (Mast Retraction) ,Mm | 2110 | 2110 |
| H2 Overall Height (Full Extension Of Mast) ,Mm | 4270 | 4270 |
| H3 Overhead Guard Height ,Mm | 2110 | 2110 |
| A1 Front Overhang ,Mm | 465 | 470 |
| A2 Wheelbase ,Mm | 1775 | 1900 |
| B1 Wheel Treat Front ,Mm | 1000 | 1060 |
| B2 Wheel Treat Rear ,Mm | 970 | 970 |
| Front Tyre | 28×9-15 | 250-15 |
| Rear Tyre | 6.50-10 | 6.50-10 |
| Weight ,Kg | 4660/4700 | 4900 |
| B3 Fork Width,,Mm | 122 | 150 |
| H4 Fork Thickness ,Mm | 45 | 45 |
| Fork Bracket Height ,Mm | 1225 | 1225 |
| A3 Standard Fork Length ,Mm | 1220 | 1220 |
| Engine | China stage Ⅲ | China stage Ⅲ |
| Rated Power Kw | 36.8 | 36.8 |
| Speed At Rated Power Rpm | 2500 | 2500 |
| Maximum Torque Nm | 157 | 185 |
| Speed At Maximum Torque Rpm | 1800 | 1800 |
| Transmission | Mechanical | Mechanical |
| General | Model | FD25 | |
| Rated capacity | kg | 2500 | |
| Load center | mm | 500 | |
| Power type | Diesel | ||
| Transmission | Hydraulic/Mechanical | ||
| Dimensions | Lifting height | mm | 3000 |
| Free lifting height | mm | 60 | |
| Turning radius | mm | 2450 | |
| Overall length | mm | 3605 | |
| Overall width | mm | 1160 | |
| Overall height (mast lowered) | mm | 2095 | |
| Overall height (mast raised) | mm | 4080 | |
| Overall height (overhead guard) | mm | 2095 | |
| Fork length | mm | 1070 | |
| Fork width | mm | 122 | |
| Fork thickness | mm | 40 | |
| Performance | Max. driving speed (with/without load) | km/h | 17/19 |
| Max. lifting speed (with load) | mm/s | 400 | |
| Max. traction (with/without load) | kn | 15/10 | |
| Gradeability (with/without load) | % | 15/20 | |
| Tilting angles (forward/backward) | ° | 6/12 | |
| Service weight | kg | 3600 | |
| Engine | Engine model | 490BPG | |
| Power | kw | 37 | |
| Rated speed | rpm | 2500 | |
| Wheel | Front overhang | mm | 451 |
| Wheel base | mm | 1640 | |
| Front tread | mm | 970 | |
| Rear tread | mm | 970 | |
| Front tire | 7.00-12 | ||
| Rear tire | 6.00-9 |
