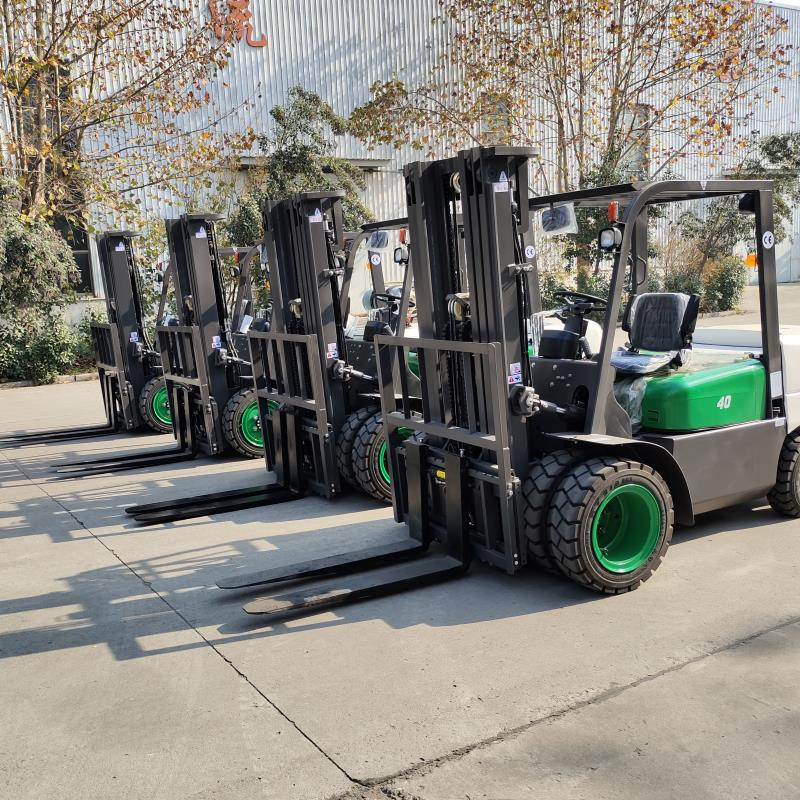

4T Diesel Forklift Price In Usa
Japan C240 Engine Or Japan Mitsubishi S4S Engine,
Solid Tires;
3m-7m Duplex Or Triplex Full Free Mast;
Side Shifter And Fork Positioner;
Fully Suspension Luxurious Seat;
Double Filter;
High Exhaust;
Customized Colour Besides Green, Purple And Orange.
Product Details
Optional Attachments
Side Shifter,Fork Positioner, Side Shift And Fork Positioner, Bale Clamps,
Paper Roll Clamps,Flat Bag Clamps, Carton Clamps,Block Clamps,Rotator,
Rotating Clamps,Hinged Fork,
Sanitation Fork,Bucket, Load Stabilizers,
Single Double Pallets Handlers, Log Holder,Tyre Clamps,
Push/Pull,Fertilizer Throw-Out,Drum Clamps,Carpet Boom,Cargo Boom.
| Model | FD35 | FD40 |
| Rated Lifting Weight ,Kg | 3500 | 4000 |
| Load Center ,Mm | 500 | 500 |
| Power | Diesel | Diesel |
| Max. Lifting Speed (Full Load) ,Mm∕S | 505/450 | 300 |
| Max. Travel Speed (Full Load/Unload) ,Km/H | 17∕19 | 18∕20 |
| Max. Traction Force (Full Load/Unload), Kn | 16∕11 | 16.5∕11.5 |
| Grade-Ability (Full / No Load) ,% | 15∕20 | 15∕20 |
| H1 Lifting Height ,Mm | 3000 | 3000 |
| Free Lifting Height ,Mm | 80 | 80 |
| Mast Inclination (Α Front / Β Rear), Degree | 6∕12 | 6∕12 |
| Min. Turning Radius ,Mm | 2540 | 2720 |
| Min. Right Angle Channel ,Mm | 2110 | 2320 |
| Min. Ground Clearance ,Mm | 135 | 135 |
| A Overall Length (Including Forks) ,Mm | 4000 | 4100 |
| B Overall Width ,Mm | 1230 | 1230 |
| H Overall Height (Mast Retraction) ,Mm | 2110 | 2110 |
| H2 Overall Height (Full Extension Of Mast) ,Mm | 4270 | 4270 |
| H3 Overhead Guard Height ,Mm | 2110 | 2110 |
| A1 Front Overhang ,Mm | 465 | 470 |
| A2 Wheelbase ,Mm | 1775 | 1900 |
| B1 Wheel Treat Front ,Mm | 1000 | 1060 |
| B2 Wheel Treat Rear ,Mm | 970 | 970 |
| Front Tyre | 28×9-15 | 250-15 |
| Rear Tyre | 6.50-10 | 6.50-10 |
| Weight ,Kg | 4660/4700 | 4900 |
| B3 Fork Width,,Mm | 122 | 150 |
| H4 Fork Thickness ,Mm | 45 | 45 |
| Fork Bracket Height ,Mm | 1225 | 1225 |
| A3 Standard Fork Length ,Mm | 1220 | 1220 |
| Engine | China stage Ⅲ | China stage Ⅲ |
| Rated Power Kw | 36.8 | 36.8 |
| Speed At Rated Power Rpm | 2500 | 2500 |
| Maximum Torque Nm | 157 | 185 |
| Speed At Maximum Torque Rpm | 1800 | 1800 |
| Transmission | Mechanical | Mechanical |
| General | Model | FD25 | |
| Rated capacity | kg | 2500 | |
| Load center | mm | 500 | |
| Power type | Diesel | ||
| Transmission | Hydraulic/Mechanical | ||
| Dimensions | Lifting height | mm | 3000 |
| Free lifting height | mm | 60 | |
| Turning radius | mm | 2450 | |
| Overall length | mm | 3605 | |
| Overall width | mm | 1160 | |
| Overall height (mast lowered) | mm | 2095 | |
| Overall height (mast raised) | mm | 4080 | |
| Overall height (overhead guard) | mm | 2095 | |
| Fork length | mm | 1070 | |
| Fork width | mm | 122 | |
| Fork thickness | mm | 40 | |
| Performance | Max. driving speed (with/without load) | km/h | 17/19 |
| Max. lifting speed (with load) | mm/s | 400 | |
| Max. traction (with/without load) | kn | 15/10 | |
| Gradeability (with/without load) | % | 15/20 | |
| Tilting angles (forward/backward) | ° | 6/12 | |
| Service weight | kg | 3600 | |
| Engine | Engine model | 490BPG | |
| Power | kw | 37 | |
| Rated speed | rpm | 2500 | |
| Wheel | Front overhang | mm | 451 |
| Wheel base | mm | 1640 | |
| Front tread | mm | 970 | |
| Rear tread | mm | 970 | |
| Front tire | 7.00-12 | ||
| Rear tire | 6.00-9 |
