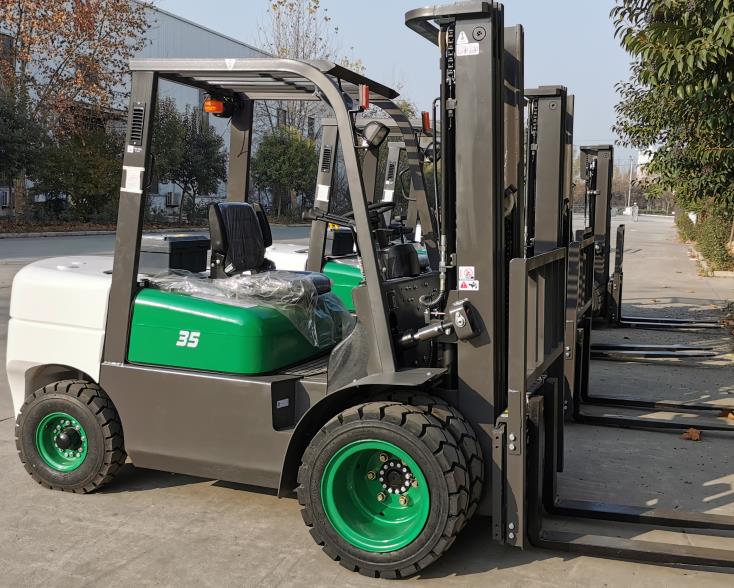

Diesel Forklift 4000 Kg
Forklift Truck Are Industrial Vehicles, Which Refer To More Than a Few Wheeled Coping With Cars For Loading, Unloading, Stacking And Short-Distance Transportation Of Palletized Goods. The International Organization For Standardization Iso/Tc110 Is Referred To As An Industrial Vehicle. It Is Frequently Used For The Transportation Of Massive Objects In Storage, And Is Typically Pushed With The Aid Of Gasoline Engines Or Batteries.
Feature:
1. Adopt Gradeability Enhancing Fashion Digital Hydraulic Transmission, Evaluate With Different Models: Effectivity 5% Improved, Mountaineering Torque 8% Increased, Noise 3~5db Reduced, Thermal Equilibrium Temperature 8-10decreased.
2. Load Sensing Precedence Guidance Hydraulic Device Is Adopted To Limit Strain Loss Of Hydraulic System, Keep Power And Enhance Operation Comfort.
3. Introducing Advances Technological Know-How From Germany, The Special Single Chain Has Appreciably Improved He The Front View Whilst Working.
4. The New Suspension System, Adjustable Seat, Permitting The Driver To Experience Extra Relaxed And Decreasing Fatigue For The Duration Of Lengthy Operations.
| Model | FD35 | FD40 |
| Rated Lifting Weight ,Kg | 3500 | 4000 |
| Load Center ,Mm | 500 | 500 |
| Power | Diesel | Diesel |
| Max. Lifting Speed (Full Load) ,Mm∕S | 505/450 | 300 |
| Max. Travel Speed (Full Load/Unload) ,Km/H | 17∕19 | 18∕20 |
| Max. Traction Force (Full Load/Unload), Kn | 16∕11 | 16.5∕11.5 |
| Grade-Ability (Full / No Load) ,% | 15∕20 | 15∕20 |
| H1 Lifting Height ,Mm | 3000 | 3000 |
| Free Lifting Height ,Mm | 80 | 80 |
| Mast Inclination (Α Front / Β Rear), Degree | 6∕12 | 6∕12 |
| Min. Turning Radius ,Mm | 2540 | 2720 |
| Min. Right Angle Channel ,Mm | 2110 | 2320 |
| Min. Ground Clearance ,Mm | 135 | 135 |
| A Overall Length (Including Forks) ,Mm | 4000 | 4100 |
| B Overall Width ,Mm | 1230 | 1230 |
| H Overall Height (Mast Retraction) ,Mm | 2110 | 2110 |
| H2 Overall Height (Full Extension Of Mast) ,Mm | 4270 | 4270 |
| H3 Overhead Guard Height ,Mm | 2110 | 2110 |
| A1 Front Overhang ,Mm | 465 | 470 |
| A2 Wheelbase ,Mm | 1775 | 1900 |
| B1 Wheel Treat Front ,Mm | 1000 | 1060 |
| B2 Wheel Treat Rear ,Mm | 970 | 970 |
| Front Tyre | 28×9-15 | 250-15 |
| Rear Tyre | 6.50-10 | 6.50-10 |
| Weight ,Kg | 4660/4700 | 4900 |
| B3 Fork Width,,Mm | 122 | 150 |
| H4 Fork Thickness ,Mm | 45 | 45 |
| Fork Bracket Height ,Mm | 1225 | 1225 |
| A3 Standard Fork Length ,Mm | 1220 | 1220 |
| Engine | China stage Ⅲ | China stage Ⅲ |
| Rated Power Kw | 36.8 | 36.8 |
| Speed At Rated Power Rpm | 2500 | 2500 |
| Maximum Torque Nm | 157 | 185 |
| Speed At Maximum Torque Rpm | 1800 | 1800 |
| Transmission | Mechanical | Mechanical |
| General | Model | FD25 | |
| Rated capacity | kg | 2500 | |
| Load center | mm | 500 | |
| Power type | Diesel | ||
| Transmission | Hydraulic/Mechanical | ||
| Dimensions | Lifting height | mm | 3000 |
| Free lifting height | mm | 60 | |
| Turning radius | mm | 2450 | |
| Overall length | mm | 3605 | |
| Overall width | mm | 1160 | |
| Overall height (mast lowered) | mm | 2095 | |
| Overall height (mast raised) | mm | 4080 | |
| Overall height (overhead guard) | mm | 2095 | |
| Fork length | mm | 1070 | |
| Fork width | mm | 122 | |
| Fork thickness | mm | 40 | |
| Performance | Max. driving speed (with/without load) | km/h | 17/19 |
| Max. lifting speed (with load) | mm/s | 400 | |
| Max. traction (with/without load) | kn | 15/10 | |
| Gradeability (with/without load) | % | 15/20 | |
| Tilting angles (forward/backward) | ° | 6/12 | |
| Service weight | kg | 3600 | |
| Engine | Engine model | 490BPG | |
| Power | kw | 37 | |
| Rated speed | rpm | 2500 | |
| Wheel | Front overhang | mm | 451 |
| Wheel base | mm | 1640 | |
| Front tread | mm | 970 | |
| Rear tread | mm | 970 | |
| Front tire | 7.00-12 | ||
| Rear tire | 6.00-9 |
