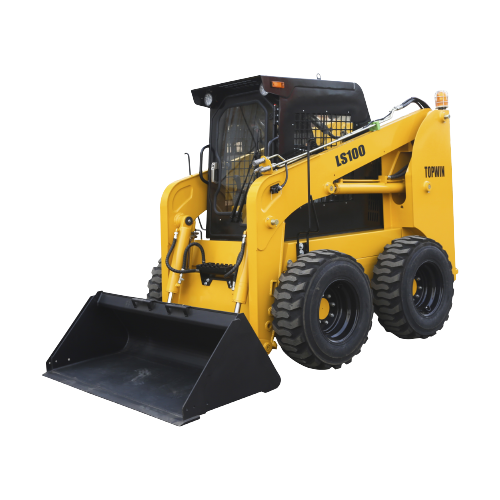

Cheap Skid Steer Loader
TOPWIN Mini Loader Skid Steer Loader Can Exchange Distinctive Attachments At Job Site, It Can Trade Simply Wishes a Few Of Minutes , To Adapt To One Of a Kind Working Surroundings And Job Contents
Adapt To Specific Working Surroundings And Job Contents In This Way, Shoveling, Stacking, Lifting, Digging, Drilling, Crushing, Grasping,Pushing, Loosening Soil, Trenching, Avenue Cleansing Can Be Respectively Carried Out. An Auxiliary Trailer Can Load All Attachments To Job Site, Do Some Thing You Choose To Do.
It Can Be Used For Web Site Clearing And Task Closing After Massive Engineering Machinery. The Four In 1 Bucket Would Higher Preference Of Attachment For This Job, Which Is With Pushing, Shoveling,Leveling And Grabbing Four Functions.
Attachments Can Be: Digger, Auger, Trencher, Sweeper, Backhoe, Excessive Dump Bucket, Tiller, Garden Mower, Hydraulic Grapple Fork, Fork, Four In 1 Bucket, Snow Blower, Leveler, Perspective Blade, Mixer, Hydraulic Breaker, Trench Filler, Garden Aerator, Sweeper With Bucket, Stone Bucket, Trailer, Widespread Bucket, Ripper, Stump
Skid Steer Loader Specifications

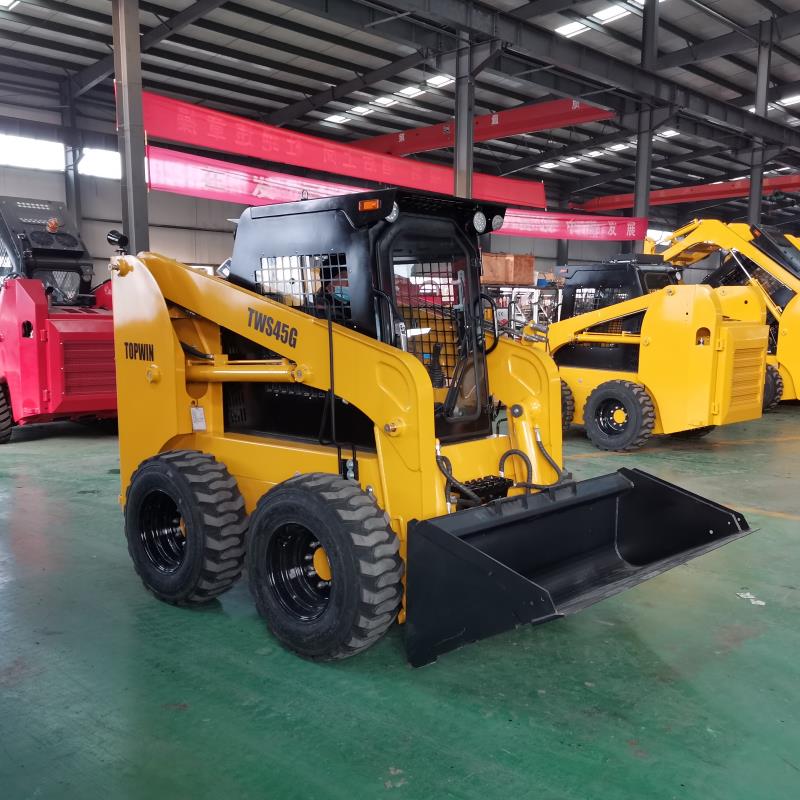

tem | Model | TWS35 | TWS45G | TWS60G | TWS65B |
1 | Operating load (kg) | 500 | 700 | 850 | 950 |
2 | Max Speed(km/h) | 10 | 12 | 12 | 12 |
3 | Rated Flux (L/min) | 60 | 75 | 75 | 80 |
4 | Tire(Track) Model | 8.5-15 | 10-16.5 | 12-16.5 | 12-16.5 |
5 | Rated Power (kW/HP) | 29.5/40 | 37/50 | 45/61 | 55/75 |
6 | Fuel Tank Capacity (L) | 60 | 65 | 80 | 75 |
7 | Self Weight Bucket (kg) | 2300 | 3000 | 3200 | 3350 |
8 | Bucket Capacity (m 3 ) | 0.3 | 0.4 | 0.5 | 0.5 |
A | Overall Operating Height (mm) | 3300 | 3980 | 4000 | 4000 |
B | Height To Bucket Hinge Pin (mm) | 2725 | 3080 | 3100 | 3100 |
C | Height To Top Of Cab (mm) | 2000 | 2140 | 2160 | 2160 |
D | Height To Bottom Of Level Bucket(mm) | 2558 | 2913 | 2933 | 2933 |
E | Overall Length Without Bucket(mm) | 2300 | 2640 | 2750 | 2750 |
F | Overall Length with bucket(mm) | 3080 | 3420 | 3490 | 3490 |
G | Dumping angle at maximum height(° ) | 40 | 40 | 40 | 40 |
H | Dumping height(mm) | 2050 | 2380 | 2400 | 2400 |
I | Dumping reach(mm) | 790 | 700 | 750 | 750 |
J | Rollback o bucket on ground(° ) | 30 | 30 | 30 | 30 |
K | Rollback of bucket at full height(° ) | 104 | 104 | 104 | 104 |
L | Wheelbase(mm) | 897 | 991 | 991 | 1085 |
M | Ground clearance(mm) | 140 | 185 | 205 | 205 |
N | Angle of departure(° ) | 20 | 20 | 20 | 20 |
O | Front turning radius without bucket(mm) | 1098 | 1168 | 1198 | 1204 |
P | Front tuning radius(mm) | 1760 | 1958 | 1958 | 2030 |
Q | Rear tuning radius(mm) | 1296 | 1630 | 1728 | 1706 |
R | Rear axle to bumper (mm) | 964 | 1108 | 1208 | 1082 |
S | Tread width, centerline to centerline (mm) | 1080 | 1450 | 1500 | 1500 |
T | Width (mm) | 1350 | 1720 | 1880 | 1880 |
U | Bucket width (mm) | 1400 | 1740 | 1880 | 1880 |
Product Details
Skid Steer Hydraulic Connector Skid Steer Loader Cabin Skid Steer Loader Radiator
Skid Steer Loader Panel Skid Steer Loader Pilot Lever Skid Steer Loader Quick Hitch
Skid Steer Loader Attachments
Company Profile
Shandong Topwin Machinery Co.,Ltd. (Topwin For Short) Is The One-Stop Solution Provider For Construction Machinery, Mining Machinery, Agricultural Machinery And Logistic Machinery In China.
tem | Model | TWS35 | TWS45G | TWS60G | TWS65B | TWS100 | TWSS65 | TWSS100 |
1 | Operating load (kg) | 500 | 700 | 850 | 950 | 1200 | 1000 | 1200 |
2 | Max Speed(km/h) | 10 | 12 | 12 | 12 | 12/18 | 12/18 | 12/18 |
3 | Rated flux (L/min) | 60 | 75 | 75 | 80 | 80 | 75 | 88 |
4 | Tire(track) model | 8.5-15 | 10-16.5 | 12-16.5 | 12-16.5 | 12-16.5 | 320X84 | 320X84 |
5 | Rated power (kW/HP) | 29.5/40 | 37/50 | 45/61 | 55/75 | 74/100 | 55/75 | 74/100 |
6 | Fuel tank capacity (L) | 60 | 65 | 80 | 75 | 90 | 80 | 90 |
7 | Self weight bucket (kg) | 2300 | 3000 | 3200 | 3350 | 3550 | 3800 | 4500 |
8 | Bucket capacity (m 3 ) | 0.3 | 0.4 | 0.5 | 0.5 | 0.55 | 0.5 | 0.55 |
A | Overall operating height (mm) | 3300 | 3980 | 4000 | 4000 | 4070 | 3480 | 4070 |
B | Height to bucket hinge pin (mm) | 2725 | 3080 | 3100 | 3100 | 3150 | 2900 | 3150 |
C | height to top of cab (mm) | 2000 | 2140 | 2160 | 2160 | 2160 | 2150 | 2160 |
D | Height to bottom of level bucket(mm) | 2558 | 2913 | 2933 | 2933 | 2983 | 2730 | 2983 |
E | Overall length without bucket(mm) | 2300 | 2640 | 2750 | 2750 | 2880 | 2750 | 3000 |
F | Overall length with bucket(mm) | 3080 | 3420 | 3490 | 3490 | 3580 | 3500 | 3700 |
G | Dumping angle at maximum height(° ) | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
H | Dumping height(mm) | 2050 | 2380 | 2400 | 2400 | 2450 | 2230 | 2450 |
I | Dumping reach(mm) | 790 | 700 | 750 | 750 | 700 | 715 | 700 |
J | Rollback o bucket on ground(° ) | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
K | Rollback of bucket at full height(° ) | 104 | 104 | 104 | 104 | 104 | 104 | 104 |
L | Wheelbase(mm) | 897 | 991 | 991 | 1085 | 1185 | 1500 | 1500 |
M | Ground clearance(mm) | 140 | 185 | 205 | 205 | 205 | 200 | 200 |
N | Angle of departure(° ) | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
O | Front turning radius without bucket(mm) | 1098 | 1168 | 1198 | 1204 | 1278 | 1298 | 1365 |
P | Front tuning radius(mm) | 1760 | 1958 | 1958 | 2030 | 2144 | 2010 | 2200 |
Q | Rear tuning radius(mm) | 1296 | 1630 | 1728 | 1706 | 1857 | 1714 | 1742 |
R | Rear axle to bumper (mm) | 964 | 1108 | 1208 | 1082 | 1082 | 890 | 938 |
S | Tread width, centerline to centerline (mm) | 1080 | 1450 | 1500 | 1500 | 1500 | 1462 | 1654 |
T | Width (mm) | 1350 | 1720 | 1880 | 1880 | 1880 | 1782 | 1994 |
U | Bucket width (mm) | 1400 | 1740 | 1880 | 1880 | 1880 | 1830 | 2030 |
