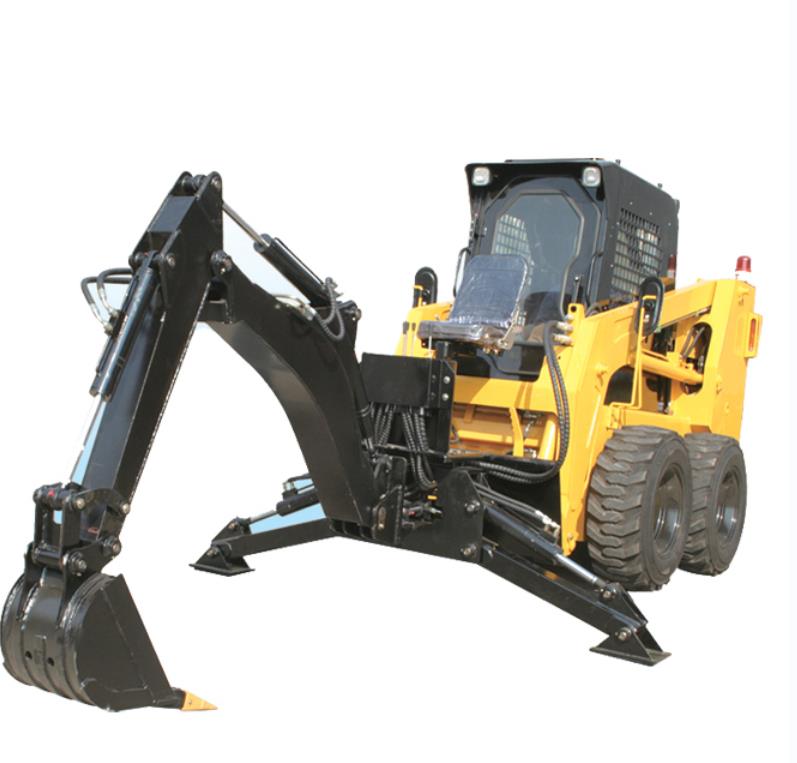

Small Skid Steer With Backhoe
Topwin Wheel Skid Steer Has a Compact Structure, The Maneuvering Movement Is Suitable For Operation In Narrow Spaces, And The Control System Of The Cabin Joystick Is Closed;Dual Throttle Control;Automatic Leveling System;Versatile With a Wide Range Of Attachments; Hydraulic Brakes.Attachment Function Introduction.
Attachment Function Introduction
1,Material Loading And Unloading Attachments (Fork Shovel, Standard Bucket, Combination Shovel, Sieve Shovel)
2,Municipal Attachments (Angled Sweepers, Closed Sweepers, Crushing Hammers, Vibratory Compactors, Milling Machines, Trenchers, Snow Pushers, Snow Throwers, Ice Breakers, Vibratory Ice Breakers)
3,Construction Attachments (Excavators, Mixers, Disk Trenchers, Digging Arms, Bulldozers)
4,Logistics Attachments (Holding Forks, Tandem Bars, Soft Pack Clamps, Crane Hooks, Side Shifting Forklifts)
5,Gardening And Agricultural Attachments (Grass Forks, Tree Removers, Graders, Lawn Mowers, Rototillers, Augers)
Skid Steer Loaders Are Widely Used In Engineering Construction, Port Handling, Municipal Construction, Gardening,
Sanitation, Water Conservancy, Agriculture And Other Fields. While Providing a Full Range Of Skid Steer Mainframes, The Company Independently Develops And Produces Related Accessories. Including Excavators, Drills, Trenchers, Sweepers, Mixers, Cutters, Lawn Mowers, Hydraulic Breakers, Bulldozers, Combination Shovels, Wood Grabbers, Pitchforks, Fork Shovels, Etc. Tool. According To User Needs, We Can Develop Special-Purpose Work Tools.

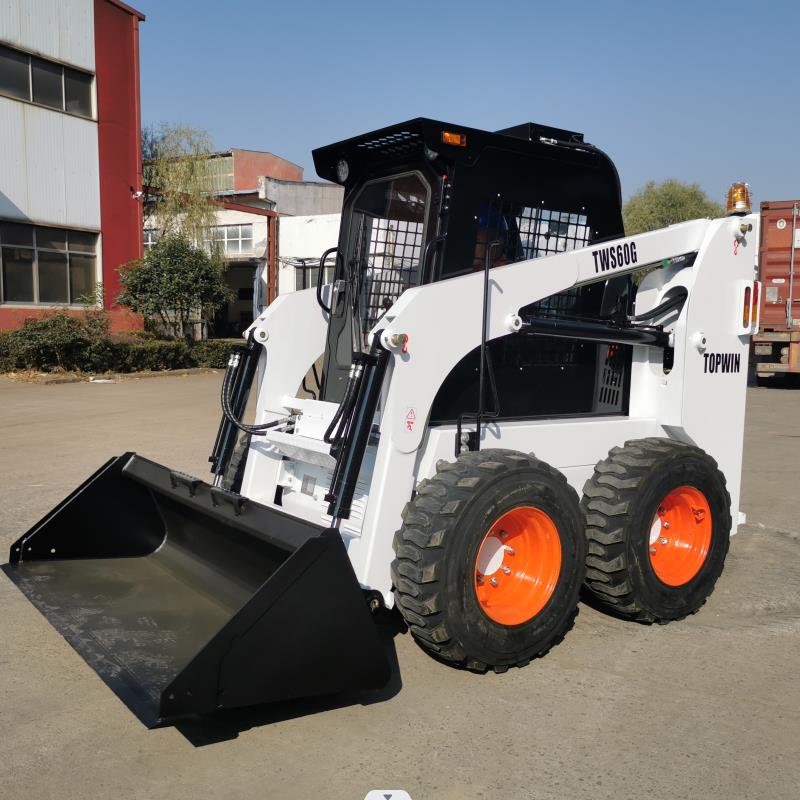

Skid Steer Loader Specifications
tem | Model | TWS35 | TWS45G | TWS60G | TWS65B |
1 | Operating load (kg) | 500 | 700 | 850 | 950 |
2 | Max Speed(km/h) | 10 | 12 | 12 | 12 |
3 | Rated Flux (L/min) | 60 | 75 | 75 | 80 |
4 | Tire(Track) Model | 8.5-15 | 10-16.5 | 12-16.5 | 12-16.5 |
5 | Rated Power (kW/HP) | 29.5/40 | 37/50 | 45/61 | 55/75 |
6 | Fuel Tank Capacity (L) | 60 | 65 | 80 | 75 |
7 | Self Weight Bucket (kg) | 2300 | 3000 | 3200 | 3350 |
8 | Bucket Capacity (m 3 ) | 0.3 | 0.4 | 0.5 | 0.5 |
A | Overall Operating Height (mm) | 3300 | 3980 | 4000 | 4000 |
B | Height To Bucket Hinge Pin (mm) | 2725 | 3080 | 3100 | 3100 |
C | Height To Top Of Cab (mm) | 2000 | 2140 | 2160 | 2160 |
D | Height To Bottom Of Level Bucket(mm) | 2558 | 2913 | 2933 | 2933 |
E | Overall Length Without Bucket(mm) | 2300 | 2640 | 2750 | 2750 |
F | Overall Length With Bucket(mm) | 3080 | 3420 | 3490 | 3490 |
G | Dumping Angle At Maximum Height(° ) | 40 | 40 | 40 | 40 |
H | Dumping Height(mm) | 2050 | 2380 | 2400 | 2400 |
I | Dumping Reach(mm) | 790 | 700 | 750 | 750 |
J | Rollback O Bucket On Ground(° ) | 30 | 30 | 30 | 30 |
K | Rollback Of Bucket At Full Height(° ) | 104 | 104 | 104 | 104 |
L | Wheelbase(mm) | 897 | 991 | 991 | 1085 |
M | Ground Blearance(mm) | 140 | 185 | 205 | 205 |
N | Angle Of Departure(° ) | 20 | 20 | 20 | 20 |
O | Front Turning Radius WithOut Bucket(mm) | 1098 | 1168 | 1198 | 1204 |
P | Front Tuning Radius(mm) | 1760 | 1958 | 1958 | 2030 |
Q | Rear Tuning Radius(mm) | 1296 | 1630 | 1728 | 1706 |
R | Rear Axle To Bumper (mm) | 964 | 1108 | 1208 | 1082 |
S | Tread Width, Centerline To Centerline (mm) | 1080 | 1450 | 1500 | 1500 |
T | Width (mm) | 1350 | 1720 | 1880 | 1880 |
U | Bucket Width (mm) | 1400 | 1740 | 1880 | 1880 |
Product Details
Skid Steer Hydraulic Connector Skid Steer Loader Cabin Skid Steer Loader Radiator
Skid Steer Loader Panel Skid Steer Loader Pilot Lever Skid Steer Loader Quick Hitch
Skid Steer Loader Attachments
Company Profile
Shandong Topwin Machinery Co.,Ltd. (Topwin For Short) Is The One-Stop Solution Provider For Construction Machinery, Mining Machinery, Agricultural Machinery And Logistic Machinery In China.
| tem | Model | TWS35 | TWS45G | TWS60G | TWS65B | TWS100 | TWSS65 | TWSS100 |
| 1 | Operating load (kg) | 500 | 700 | 850 | 950 | 1200 | 1000 | 1200 |
| 2 | Max Speed(km/h) | 10 | 12 | 12 | 12 | 12/18 | 12/18 | 12/18 |
| 3 | Rated flux (L/min) | 60 | 75 | 75 | 80 | 80 | 75 | 88 |
| 4 | Tire(track) model | 8.5-15 | 10-16.5 | 12-16.5 | 12-16.5 | 12-16.5 | 320X84 | 320X84 |
| 5 | Rated power (kW/HP) | 29.5/40 | 37/50 | 45/61 | 55/75 | 74/100 | 55/75 | 74/100 |
| 6 | Fuel tank capacity (L) | 60 | 65 | 80 | 75 | 90 | 80 | 90 |
| 7 | Self weight bucket (kg) | 2300 | 3000 | 3200 | 3350 | 3550 | 3800 | 4500 |
| 8 | Bucket capacity (m 3 ) | 0.3 | 0.4 | 0.5 | 0.5 | 0.55 | 0.5 | 0.55 |
| A | Overall operating height (mm) | 3300 | 3980 | 4000 | 4000 | 4070 | 3480 | 4070 |
| B | Height to bucket hinge pin (mm) | 2725 | 3080 | 3100 | 3100 | 3150 | 2900 | 3150 |
| C | height to top of cab (mm) | 2000 | 2140 | 2160 | 2160 | 2160 | 2150 | 2160 |
| D | Height to bottom of level bucket(mm) | 2558 | 2913 | 2933 | 2933 | 2983 | 2730 | 2983 |
| E | Overall length without bucket(mm) | 2300 | 2640 | 2750 | 2750 | 2880 | 2750 | 3000 |
| F | Overall length with bucket(mm) | 3080 | 3420 | 3490 | 3490 | 3580 | 3500 | 3700 |
| G | Dumping angle at maximum height(° ) | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
| H | Dumping height(mm) | 2050 | 2380 | 2400 | 2400 | 2450 | 2230 | 2450 |
| I | Dumping reach(mm) | 790 | 700 | 750 | 750 | 700 | 715 | 700 |
| J | Rollback o bucket on ground(° ) | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| K | Rollback of bucket at full height(° ) | 104 | 104 | 104 | 104 | 104 | 104 | 104 |
| L | Wheelbase(mm) | 897 | 991 | 991 | 1085 | 1185 | 1500 | 1500 |
| M | Ground clearance(mm) | 140 | 185 | 205 | 205 | 205 | 200 | 200 |
| N | Angle of departure(° ) | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| O | Front turning radius without bucket(mm) | 1098 | 1168 | 1198 | 1204 | 1278 | 1298 | 1365 |
| P | Front tuning radius(mm) | 1760 | 1958 | 1958 | 2030 | 2144 | 2010 | 2200 |
| Q | Rear tuning radius(mm) | 1296 | 1630 | 1728 | 1706 | 1857 | 1714 | 1742 |
| R | Rear axle to bumper (mm) | 964 | 1108 | 1208 | 1082 | 1082 | 890 | 938 |
| S | Tread width, centerline to centerline (mm) | 1080 | 1450 | 1500 | 1500 | 1500 | 1462 | 1654 |
| T | Width (mm) | 1350 | 1720 | 1880 | 1880 | 1880 | 1782 | 1994 |
| U | Bucket width (mm) | 1400 | 1740 | 1880 | 1880 | 1880 | 1830 | 2030 |
