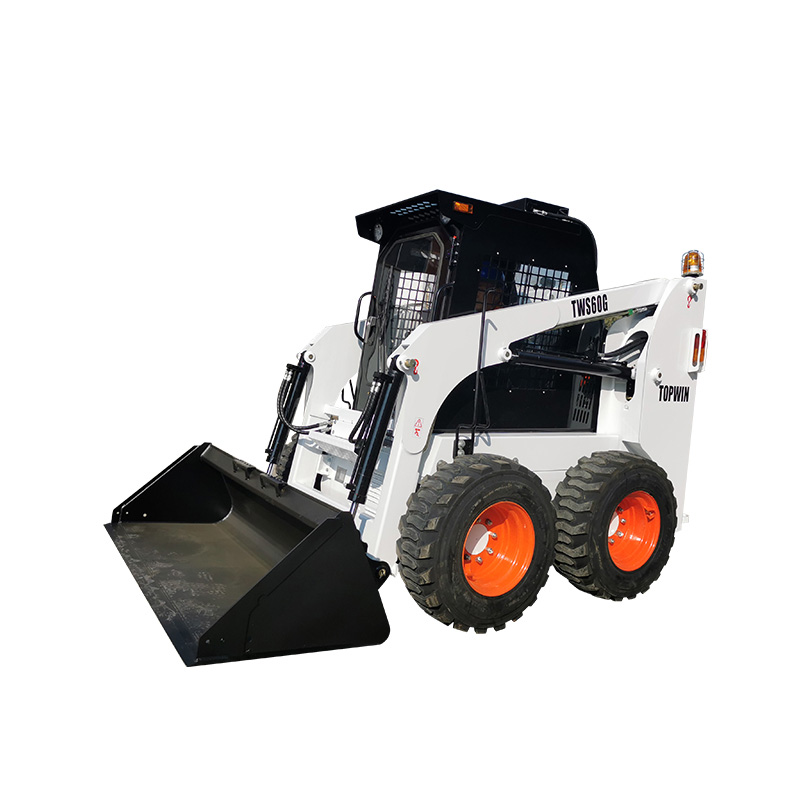

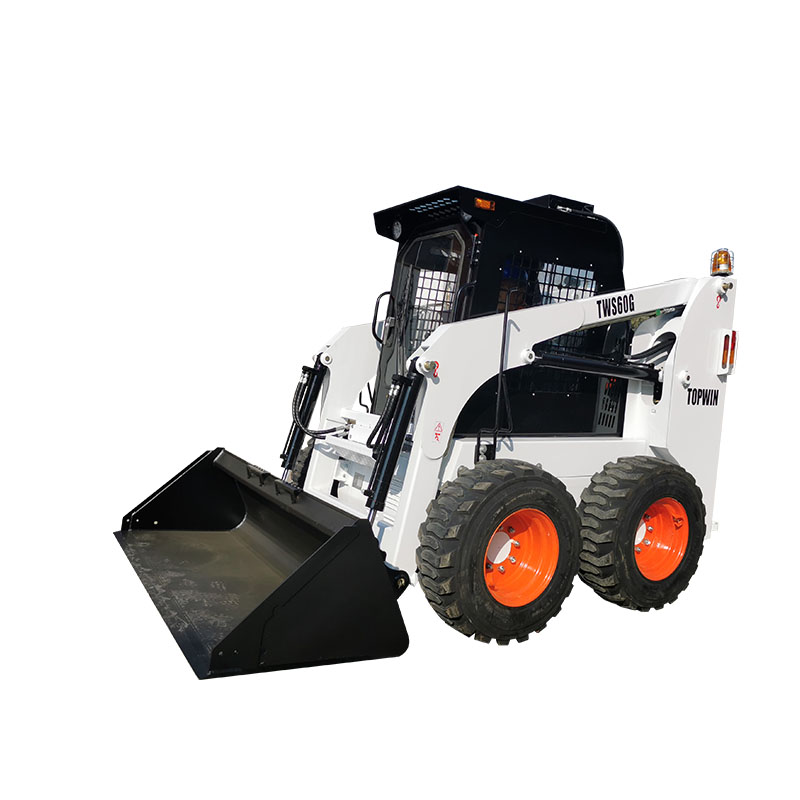

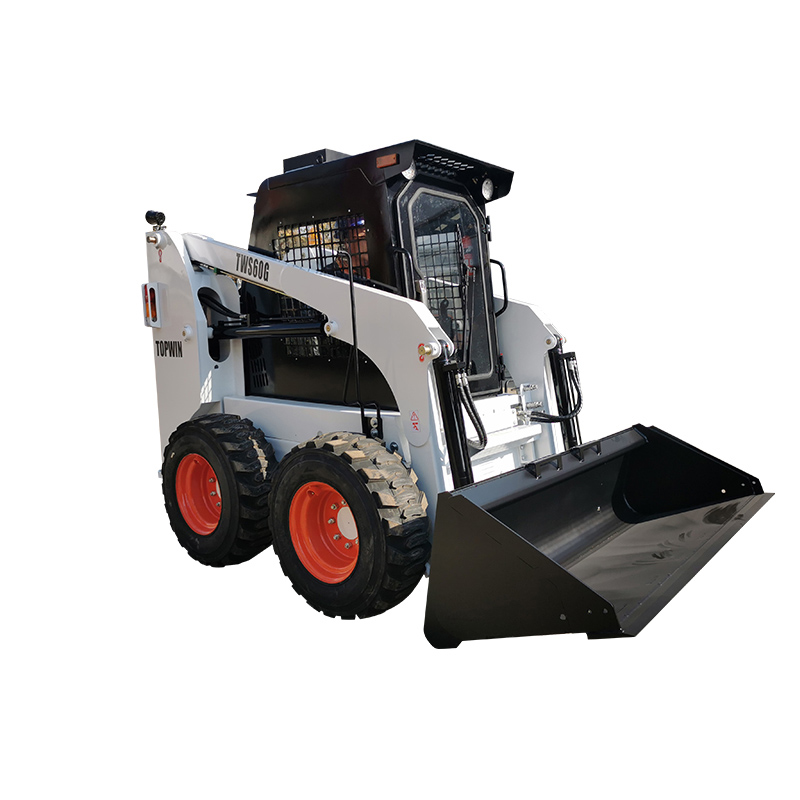

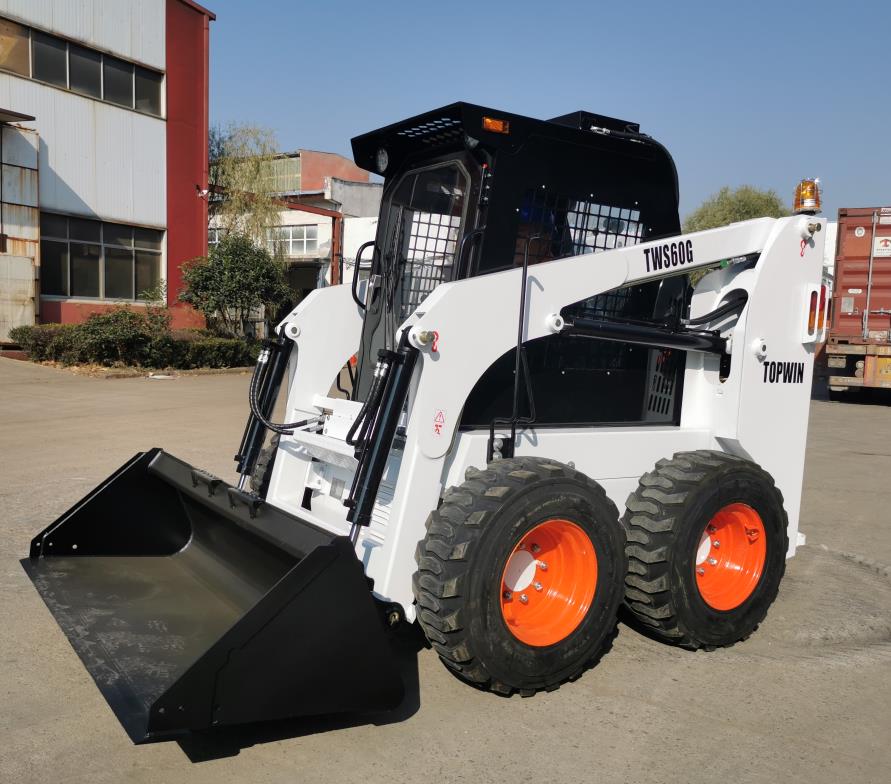

Mini Skid Steer Loader Hot Sale In Australia
The Top Win Tws45G Skid-Steer Loader Gives An Unmatched Mixture Of Strength And Maneuverability To Push Thru The Hardest Jobs.
Superior Raise Hands
Leading Maneuverability
All-Around Visibility
Premium Relief
Strong And Efficient Power Transmission System
Incomparable Multi-Functionalities
Solid And Reliable Design
Flexible Operations
For Mini Skid Steer Loader , We Have Extraordinary Fashions , Loading Capability From 500kg To 1500Kg . Good Overall Performance , Use World Well-Known Engine , Pump , Valve , Power Motors Ect :
1,Equipted With Robust Power, Ultra-Low Emission, And Greater Gas Effectivity Diesel Engine
2,Compact Structure, Low Turning Radius, And Robust Website Online Adaptability. 3,,Large House To Restore And Protection ,More Accessible. 4,The Rops&Fops Cab And The Seat Belt, Bumper,The Cab Facets Giant Space, Adjustable Seats, And Relaxed Operations. 5,Global Conventional Quick-Change Coupling, Can Rapid Exchange Tens Of Attachments, Along With Sweeper, Planer, Breaker , Digger ,Auger ,Fork , Four In 1 Bucket Ect.
Mini Skid Steer Loader Specifications
tem | Model | TWS35 | TWS45G | TWS60G | TWS65B |
1 | Operating load (kg) | 500 | 700 | 850 | 950 |
2 | Max Speed(km/h) | 10 | 12 | 12 | 12 |
3 | Rated Flux (L/min) | 60 | 75 | 75 | 80 |
4 | Tire(Track) Model | 8.5-15 | 10-16.5 | 12-16.5 | 12-16.5 |
5 | Rated Power (kW/HP) | 29.5/40 | 37/50 | 45/61 | 55/75 |
6 | Fuel Tank Capacity (L) | 60 | 65 | 80 | 75 |
7 | Self Weight Bucket (kg) | 2300 | 3000 | 3200 | 3350 |
8 | Bucket Capacity (m 3 ) | 0.3 | 0.4 | 0.5 | 0.5 |
A | Overall Operating Height (mm) | 3300 | 3980 | 4000 | 4000 |
B | Height To Bucket Hinge Pin (mm) | 2725 | 3080 | 3100 | 3100 |
C | Height To Top Of Cab (mm) | 2000 | 2140 | 2160 | 2160 |
D | Height To Bottom Of Level Bucket(mm) | 2558 | 2913 | 2933 | 2933 |
E | Overall Length Without Bucket(mm) | 2300 | 2640 | 2750 | 2750 |
F | Overall Length with bucket(mm) | 3080 | 3420 | 3490 | 3490 |
G | Dumping angle at maximum height(° ) | 40 | 40 | 40 | 40 |
H | Dumping height(mm) | 2050 | 2380 | 2400 | 2400 |
I | Dumping reach(mm) | 790 | 700 | 750 | 750 |
J | Rollback o bucket on ground(° ) | 30 | 30 | 30 | 30 |
K | Rollback of bucket at full height(° ) | 104 | 104 | 104 | 104 |
L | Wheelbase(mm) | 897 | 991 | 991 | 1085 |
M | Ground clearance(mm) | 140 | 185 | 205 | 205 |
N | Angle of departure(° ) | 20 | 20 | 20 | 20 |
O | Front turning radius without bucket(mm) | 1098 | 1168 | 1198 | 1204 |
P | Front tuning radius(mm) | 1760 | 1958 | 1958 | 2030 |
Q | Rear tuning radius(mm) | 1296 | 1630 | 1728 | 1706 |
R | Rear axle to bumper (mm) | 964 | 1108 | 1208 | 1082 |
S | Tread width, centerline to centerline (mm) | 1080 | 1450 | 1500 | 1500 |
T | Width (mm) | 1350 | 1720 | 1880 | 1880 |
U | Bucket width (mm) | 1400 | 1740 | 1880 | 1880 |
Product Details
Skid Steer Loader Pump Skid Steer Loader Cab Skid Steer Loader Heat Sink
Company Profile
Shandong Topwin Machinery Co.,Ltd. (Topwin For Short) Is The One-Stop Solution Provider For Construction Machinery, Mining Machinery, Agricultural Machinery And Logistic Machinery In China.
tem | Model | TWS35 | TWS45G | TWS60G | TWS65B | TWS100 | TWSS65 | TWSS100 |
1 | Operating load (kg) | 500 | 700 | 850 | 950 | 1200 | 1000 | 1200 |
2 | Max Speed(km/h) | 10 | 12 | 12 | 12 | 12/18 | 12/18 | 12/18 |
3 | Rated flux (L/min) | 60 | 75 | 75 | 80 | 80 | 75 | 88 |
4 | Tire(track) model | 8.5-15 | 10-16.5 | 12-16.5 | 12-16.5 | 12-16.5 | 320X84 | 320X84 |
5 | Rated power (kW/HP) | 29.5/40 | 37/50 | 45/61 | 55/75 | 74/100 | 55/75 | 74/100 |
6 | Fuel tank capacity (L) | 60 | 65 | 80 | 75 | 90 | 80 | 90 |
7 | Self weight bucket (kg) | 2300 | 3000 | 3200 | 3350 | 3550 | 3800 | 4500 |
8 | Bucket capacity (m 3 ) | 0.3 | 0.4 | 0.5 | 0.5 | 0.55 | 0.5 | 0.55 |
A | Overall operating height (mm) | 3300 | 3980 | 4000 | 4000 | 4070 | 3480 | 4070 |
B | Height to bucket hinge pin (mm) | 2725 | 3080 | 3100 | 3100 | 3150 | 2900 | 3150 |
C | height to top of cab (mm) | 2000 | 2140 | 2160 | 2160 | 2160 | 2150 | 2160 |
D | Height to bottom of level bucket(mm) | 2558 | 2913 | 2933 | 2933 | 2983 | 2730 | 2983 |
E | Overall length without bucket(mm) | 2300 | 2640 | 2750 | 2750 | 2880 | 2750 | 3000 |
F | Overall length with bucket(mm) | 3080 | 3420 | 3490 | 3490 | 3580 | 3500 | 3700 |
G | Dumping angle at maximum height(° ) | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
H | Dumping height(mm) | 2050 | 2380 | 2400 | 2400 | 2450 | 2230 | 2450 |
I | Dumping reach(mm) | 790 | 700 | 750 | 750 | 700 | 715 | 700 |
J | Rollback o bucket on ground(° ) | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
K | Rollback of bucket at full height(° ) | 104 | 104 | 104 | 104 | 104 | 104 | 104 |
L | Wheelbase(mm) | 897 | 991 | 991 | 1085 | 1185 | 1500 | 1500 |
M | Ground clearance(mm) | 140 | 185 | 205 | 205 | 205 | 200 | 200 |
N | Angle of departure(° ) | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
O | Front turning radius without bucket(mm) | 1098 | 1168 | 1198 | 1204 | 1278 | 1298 | 1365 |
P | Front tuning radius(mm) | 1760 | 1958 | 1958 | 2030 | 2144 | 2010 | 2200 |
Q | Rear tuning radius(mm) | 1296 | 1630 | 1728 | 1706 | 1857 | 1714 | 1742 |
R | Rear axle to bumper (mm) | 964 | 1108 | 1208 | 1082 | 1082 | 890 | 938 |
S | Tread width, centerline to centerline (mm) | 1080 | 1450 | 1500 | 1500 | 1500 | 1462 | 1654 |
T | Width (mm) | 1350 | 1720 | 1880 | 1880 | 1880 | 1782 | 1994 |
U | Bucket width (mm) | 1400 | 1740 | 1880 | 1880 | 1880 | 1830 | 2030 |
