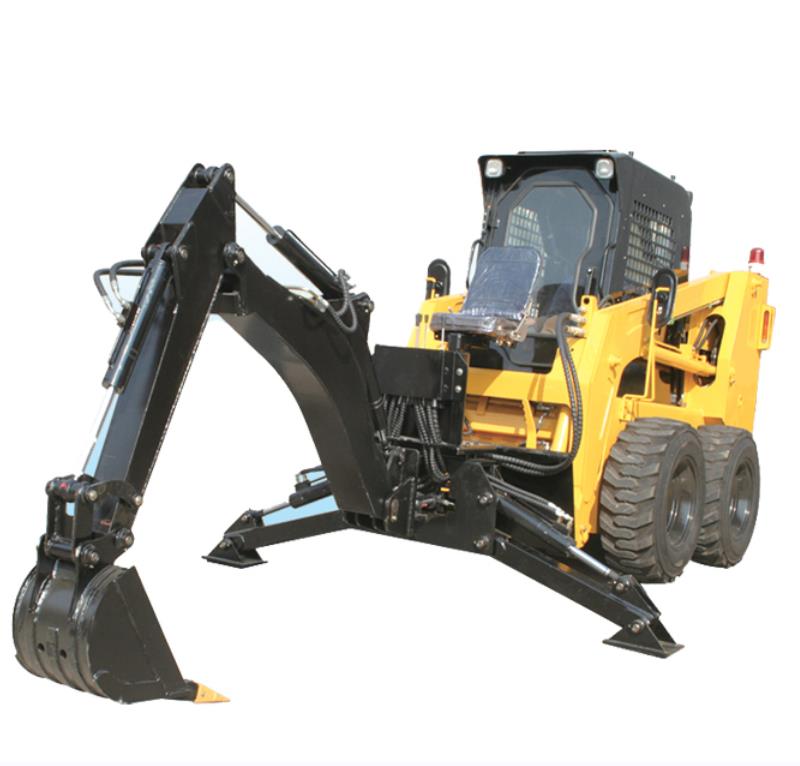

Skid Steer Backhoe
Topwin Wheel Skid Steer Has a Compact Structure, The Maneuvering Movement Is Suitable For Operation In Narrow Spaces, And The Control System Of The Cabin Joystick Is Closed;Dual Throttle Control;Automatic Leveling System;Versatile With a Wide Range Of Attachments; Hydraulic Brakes.Attachment Function Introduction.
Attachment Function Introduction
1,Material Loading And Unloading Attachments (Fork Shovel, Standard Bucket, Combination Shovel, Sieve Shovel)
2,Municipal Attachments (Angled Sweepers, Closed Sweepers, Crushing Hammers, Vibratory Compactors, Milling Machines, Trenchers, Snow Pushers, Snow Throwers, Ice Breakers, Vibratory Ice Breakers)
3,Construction Attachments (Excavators, Mixers, Disk Trenchers, Digging Arms, Bulldozers)
4,Logistics Attachments (Holding Forks, Tandem Bars, Soft Pack Clamps, Crane Hooks, Side Shifting Forklifts)
5,Gardening And Agricultural Attachments (Grass Forks, Tree Removers, Graders, Lawn Mowers, Rototillers, Augers)
Engines: Adopting International Famous Engine Brand - Perkins Engines, Which Its Manufacturer Have Established a Good Business Relationship With Us For Many Years, To Ensure That The Machines Are Capable Of Working Under Various Environment.
Form: All Structural Parts Are Designed And Produced By Ourselves, Possessing Aesthetic Appearance And Durability, Which Its Hydraulic Tank, Fuel Tank And Chassis Are Integrated Perfectly In The Structure To Fully Maximize The Work Performance Of The Production.
Operation System: The Operating System Can Choose The Advanced Mechanical Control Or The Pilot Control Lever. Pilot Control Lever Combining An Easy And Flexible Control For Various Functions Along With Various Types Of Instrument Parameters Can Greatly Improve Degree Of Comfort For Operator.
Leveling System: Adopting Imported Machinery Or Hydraulic Leveling System, Which Can Not Only Improve The Efficiency But Also Increase The Safety Factor.
Cab: Full Closure, Big Space, Objects Anti-Falling Design, Anti-Turnover Design And 360 Degree Visible Design Along With Seat Safety Bar Can Achieve a Comfortable Work For Any Physique And a Precise Control Operation. Cab Air-Conditioning System Can Be Powerful In Wide Environmental Condition (Such As Scorching Weather, Bitter Winter And Excessive Dust Environment) By Virtue Of Cab Enclosure Which Is Inclusive Of a Roof, Rear Window And Side Windows.
Maintenance: Open Type Of The Cover, Rear Cover, And Top Cover Will Make The Production Possible To Be Inspected In All Aspects Of Production Parts Including Its Engine, Filter And Battery. In The Maintenance Of Safeway And Maintenance Without Lifting Stand-Arm, Which Can Efficiently Save Maintenance Time.
Skid Steer Loader Specifications
tem | Model | TWS35 | TWS45G | TWS60G | TWS65B |
1 | Operating load (kg) | 500 | 700 | 850 | 950 |
2 | Max Speed(km/h) | 10 | 12 | 12 | 12 |
3 | Rated Flux (L/min) | 60 | 75 | 75 | 80 |
4 | Tire(Track) Model | 8.5-15 | 10-16.5 | 12-16.5 | 12-16.5 |
5 | Rated Power (kW/HP) | 29.5/40 | 37/50 | 45/61 | 55/75 |
6 | Fuel Tank Capacity (L) | 60 | 65 | 80 | 75 |
7 | Self Weight Bucket (kg) | 2300 | 3000 | 3200 | 3350 |
8 | Bucket Capacity (m 3 ) | 0.3 | 0.4 | 0.5 | 0.5 |
A | Overall Operating Height (mm) | 3300 | 3980 | 4000 | 4000 |
B | Height To Bucket Hinge Pin (mm) | 2725 | 3080 | 3100 | 3100 |
C | Height To Top Of Cab (mm) | 2000 | 2140 | 2160 | 2160 |
D | Height To Bottom Of Level Bucket(mm) | 2558 | 2913 | 2933 | 2933 |
E | Overall Length Without Bucket(mm) | 2300 | 2640 | 2750 | 2750 |
F | Overall Length With Bucket(mm) | 3080 | 3420 | 3490 | 3490 |
G | Dumping Angle At Maximum Height(° ) | 40 | 40 | 40 | 40 |
H | Dumping Height(mm) | 2050 | 2380 | 2400 | 2400 |
I | Dumping Reach(mm) | 790 | 700 | 750 | 750 |
J | Rollback O Bucket On Ground(° ) | 30 | 30 | 30 | 30 |
K | Rollback Of Bucket At Full Height(° ) | 104 | 104 | 104 | 104 |
L | Wheelbase(mm) | 897 | 991 | 991 | 1085 |
M | Ground Blearance(mm) | 140 | 185 | 205 | 205 |
N | Angle Of Departure(° ) | 20 | 20 | 20 | 20 |
O | Front Turning Radius WithOut Bucket(mm) | 1098 | 1168 | 1198 | 1204 |
P | Front Tuning Radius(mm) | 1760 | 1958 | 1958 | 2030 |
Q | Rear Tuning Radius(mm) | 1296 | 1630 | 1728 | 1706 |
R | Rear Axle To Bumper (mm) | 964 | 1108 | 1208 | 1082 |
S | Tread Width, Centerline To Centerline (mm) | 1080 | 1450 | 1500 | 1500 |
T | Width (mm) | 1350 | 1720 | 1880 | 1880 |
U | Bucket Width (mm) | 1400 | 1740 | 1880 | 1880 |
Product Details
Skid Steer Hydraulic Connector Skid Steer Loader Cabin Skid Steer Loader Radiator
Skid Steer Loader Panel Skid Steer Loader Pilot Lever Skid Steer Loader Quick Hitch
Skid Steer Loader Attachments
Company Profile
Shandong Topwin Machinery Co.,Ltd. (Topwin For Short) Is The One-Stop Solution Provider For Construction Machinery, Mining Machinery, Agricultural Machinery And Logistic Machinery In China.
| tem | Model | TWS35 | TWS45G | TWS60G | TWS65B | TWS100 | TWSS65 | TWSS100 |
| 1 | Operating load (kg) | 500 | 700 | 850 | 950 | 1200 | 1000 | 1200 |
| 2 | Max Speed(km/h) | 10 | 12 | 12 | 12 | 12/18 | 12/18 | 12/18 |
| 3 | Rated flux (L/min) | 60 | 75 | 75 | 80 | 80 | 75 | 88 |
| 4 | Tire(track) model | 8.5-15 | 10-16.5 | 12-16.5 | 12-16.5 | 12-16.5 | 320X84 | 320X84 |
| 5 | Rated power (kW/HP) | 29.5/40 | 37/50 | 45/61 | 55/75 | 74/100 | 55/75 | 74/100 |
| 6 | Fuel tank capacity (L) | 60 | 65 | 80 | 75 | 90 | 80 | 90 |
| 7 | Self weight bucket (kg) | 2300 | 3000 | 3200 | 3350 | 3550 | 3800 | 4500 |
| 8 | Bucket capacity (m 3 ) | 0.3 | 0.4 | 0.5 | 0.5 | 0.55 | 0.5 | 0.55 |
| A | Overall operating height (mm) | 3300 | 3980 | 4000 | 4000 | 4070 | 3480 | 4070 |
| B | Height to bucket hinge pin (mm) | 2725 | 3080 | 3100 | 3100 | 3150 | 2900 | 3150 |
| C | height to top of cab (mm) | 2000 | 2140 | 2160 | 2160 | 2160 | 2150 | 2160 |
| D | Height to bottom of level bucket(mm) | 2558 | 2913 | 2933 | 2933 | 2983 | 2730 | 2983 |
| E | Overall length without bucket(mm) | 2300 | 2640 | 2750 | 2750 | 2880 | 2750 | 3000 |
| F | Overall length with bucket(mm) | 3080 | 3420 | 3490 | 3490 | 3580 | 3500 | 3700 |
| G | Dumping angle at maximum height(° ) | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
| H | Dumping height(mm) | 2050 | 2380 | 2400 | 2400 | 2450 | 2230 | 2450 |
| I | Dumping reach(mm) | 790 | 700 | 750 | 750 | 700 | 715 | 700 |
| J | Rollback o bucket on ground(° ) | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| K | Rollback of bucket at full height(° ) | 104 | 104 | 104 | 104 | 104 | 104 | 104 |
| L | Wheelbase(mm) | 897 | 991 | 991 | 1085 | 1185 | 1500 | 1500 |
| M | Ground clearance(mm) | 140 | 185 | 205 | 205 | 205 | 200 | 200 |
| N | Angle of departure(° ) | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| O | Front turning radius without bucket(mm) | 1098 | 1168 | 1198 | 1204 | 1278 | 1298 | 1365 |
| P | Front tuning radius(mm) | 1760 | 1958 | 1958 | 2030 | 2144 | 2010 | 2200 |
| Q | Rear tuning radius(mm) | 1296 | 1630 | 1728 | 1706 | 1857 | 1714 | 1742 |
| R | Rear axle to bumper (mm) | 964 | 1108 | 1208 | 1082 | 1082 | 890 | 938 |
| S | Tread width, centerline to centerline (mm) | 1080 | 1450 | 1500 | 1500 | 1500 | 1462 | 1654 |
| T | Width (mm) | 1350 | 1720 | 1880 | 1880 | 1880 | 1782 | 1994 |
| U | Bucket width (mm) | 1400 | 1740 | 1880 | 1880 | 1880 | 1830 | 2030 |
