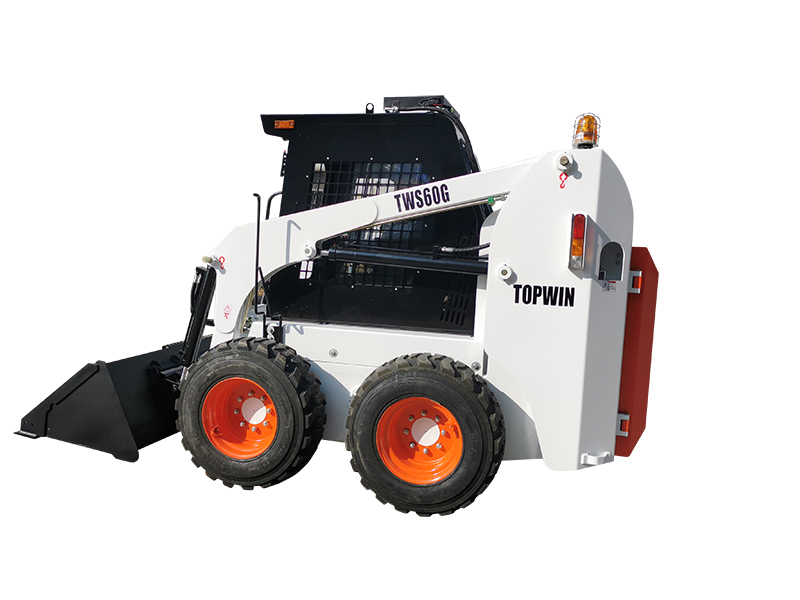

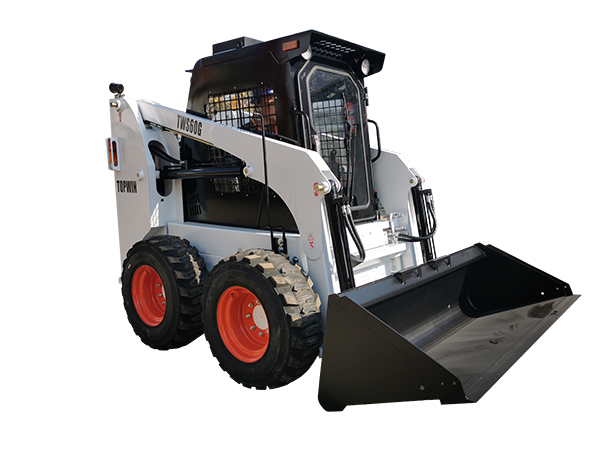

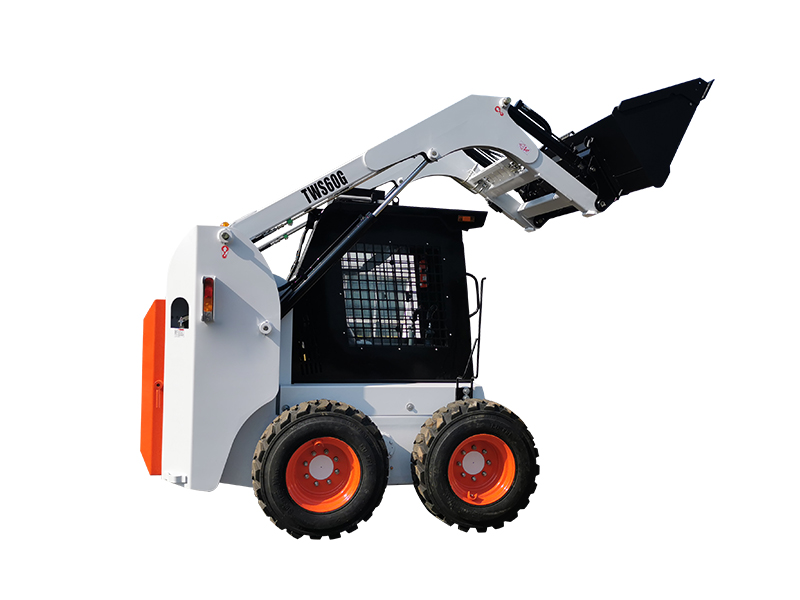

TW60G Wheeled Skid Steer Loader
Skid steer loader features:
Strong and Efficient Power Transmission System
Incomparable Multi-Functionalities
Solid and Reliable Design
Flexible Operations
Powerful Hydraulics
Selectable Joystick Control
Increased Lifting Capabilities
The skid steer loader has strong and efficient power transmission system, incomparable multi-functionalities.
It made by solid and reliable design, it can flexible operate. Also it has powerful hydraulics, selectable joystick control. If you choose our skid steer loader it can help you increase lifting capabilities.
SN | Model | LS60 (TWS60G) |
1 | Type | Wheeled type |
2 | Operating load (kg) | 850 |
3 | Max Speed(km/h) | 12 |
4 | Rated flux (L/min) | 75 |
5 | Tire(track) model | 12-16.5 |
6 | Rated power (kW/HP) | 45/61 |
7 | Fuel tank capacity (L) | 80 |
8 | Self weight bucket (kg) | 3200 |
A | Bucket capacity (m 3 ) | 0.5 |
B | Overall operating height (mm) | 4000 |
C | Height to bucket hinge pin (mm) | 3100 |
D | height to top of cab (mm) | 2160 |
E | Height to bottom of level bucket(mm) | 2933 |
F | Overall length without bucket(mm) | 2750 |
G | Overall length with bucket(mm) | 3490 |
H | Dumping angle at maximum height(° ) | 40 |
I | Dumping height(mm) | 2400 |
J | Dumping reach(mm) | 750 |
K | Rollback o bucket on ground(° ) | 30 |
L | Rollback of bucket at full height(° ) | 104 |
M | Wheelbase(mm) | 991 |
N | Ground clearance(mm) | 205 |
O | Angle of departure(° ) | 20 |
P | Front turning radius without bucket(mm) | 1198 |
Q | Front tuning radius(mm) | 1958 |
R | Rear tuning radius(mm) | 1728 |
S | Rear axle to bumper (mm) | 1208 |
T | Tread width, centerline to centerline (mm) | 1500 |
U | Width (mm) | 1880 |
W | Bucket width (mm) | 1880 |
