8Ton Excavator Price
CE EPA Approved
Yanmar Engine

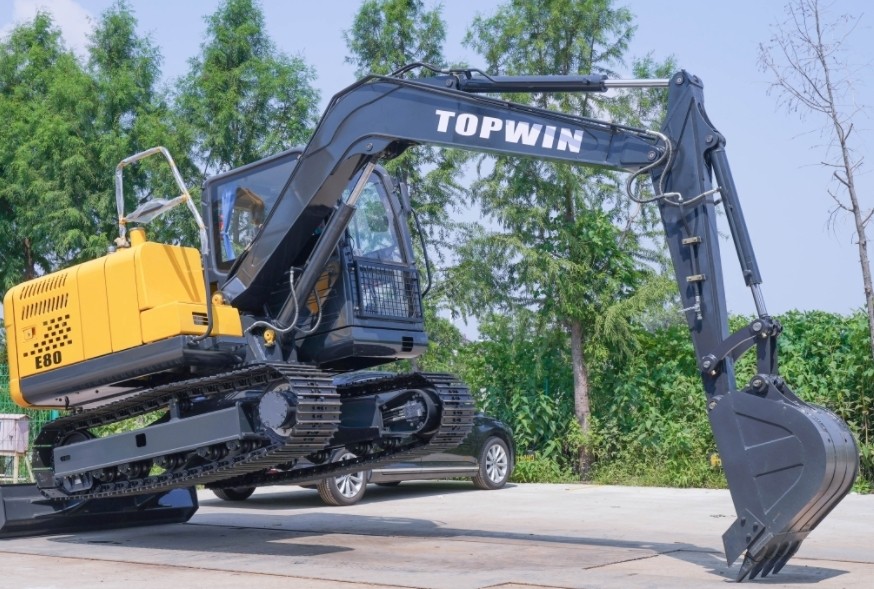

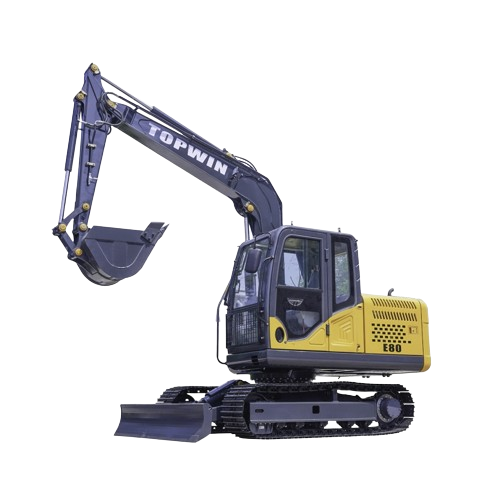

8 Ton Micro Hydraulic Crawler Digger Excavator
Topwin E80 Fixed Kubota Or Weichai Efi Engine (Conforming To Stage Iii Emission Regulations), Powerful, Strength Efficient, Dependable And Durable; Superior Terrible Float Hydraulic System, Comfy Operation, Excessive Working Efficiency, Awesome Value Performance; Full Strength Control, 4 Electricity Modes To Adapt To Exclusive Work; Dependable And Correct Gas Injection System, Real-Time Manage Of Gas Injection, Making Combustion Extra Complete, Gas Efficiency; Full 3D Modeling And Finite Component Evaluation Science To Make Certain The Reliability And Steadiness Of Structural Parts.
Based On The Above Superior Technology, Topwin E80 Has Been Broadly The Use Of In Building Websites Such As Constructing Construction, Mining Engineering, Water Conservancy Assignment And Etc.
| MODEL | E80 | |
| Operating weight (T) | 8.2 | |
| Bucket capacity (m3) | 0.32 | |
| Engine model | YANMAR 4TNV98T | YANMAR 4TNV98 |
| Rated power (kw/r/min) | 56.5/2200 | 46.3/2200 |
| Volume of fuel tank (L) | 130 | |
| Travel speed (km/h) | 5.1/2.7 | |
| Swing speed(r/min) | 10 | |
| Max climbing degree° | 70 | |
| Bucket digging force at power max (KN) ISO | 52 | |
| Average grounding pressure(KPA) | 30 | |
| Hydraulic pump model | InLine HP3V80 | |
| Maximum flow （L/min) | 165 | |
| Setting pressure (MPa) | 32 | |
| Volume of hydraulic tank (L) | 90 | |
| A Overall length (mm) | 6100 | |
| B Overall width (mm) | 2300 | |
| C Overall height （to top of boom）(mm) | 2515 | |
| D Overall height （to top of cab）(mm) | 2680 | |
| E Counterweight ground clearance (mm) | 760 | |
| F Min. ground clearance (mm) | 380 | |
| G Tail swing radius (mm) | 1755 | |
| H Track grounding length (mm) | 2150 | |
| J Track length (mm) | 2760 | |
| K Track gauge(mm) | 1700 | |
| L Track width (mm) | 2150 | |
| M Track shoe width (mm) | 450 | |
| N Turntable width (mm) | 2198 | |
| O Max. digging height (mm) | 7165 | |
| P Max. dumping height (mm) | 5065 | |
| Q Max. digging depth (mm) | 4038 | |
| R Max. vertical wall digging depth (mm) | 3505 | |
| S Max. digging depth for 2.5m horizontal plane (mm) | 3680 | |
| T Max. digging reach (mm) | 6330 | |
| U Max.digging reach at ground level (mm) | 6180 | |
| V Min. swing radius (mm) | 1795 | |
| W Max. height at min swing radius (mm) | 5500 | |
| X Distance from swing center to rear (mm) | 1755 | |
| Z Height of counterweight (mm) | 1725 | |
| A1 Grounding length (in transportation) (mm) | 3700 | |
| Arm length (mm) | 1650 | |
| Boom length (mm) | 3710 | |
Our Factory
| Model | E60 |
| Operating weight | 5.82 |
| Bucket capacity | 0.22 |
| Engine model | YANMAR 4TNV98C |
| Rated power (kw) | 42.4 KW |
| Hydraulic pump model | KYB |
| Max.flow (L/min) | 160 |
| Working pressure (Mpa) | 24.5 |
| Control valve model | KYB |
| Swing motor model | INLINE |
| Travel motor model | EDDIE |
| Fuel tank capacity (L) | 125 |
| Hydraulic oil tank capacity (L) | 110 |
| Travel speed (km/h) | 2.5/4.0 |
| Swing speed (r/min) | 10 |
| Max. climbing degree (%) | 70 |
| Arm digging force | 26.1 |
| Bucket digging force (KN) | 36.7 |
| Average grounding pressure (Kpa) | 34 |
| A-Overall length (mm) | 5943 |
| B-Overall width (mm) | 2000 |
| C-Overall height (to top of boom)(mm) | 1995 |
| D-Overall height (to top of cab)(mm) | 2619 |
| E-Counterweight ground clearance(mm) | 740 |
| F-Min. ground clearance (mm) | 360 |
| G-Tail swing radius (mm) | 1745 |
| J-Track length (mm) | 2000 |
| J-Track length (mm) | 2665 |
| K-Track gauge (mm) | 1600 |
| L-Track width (mm) | 2000 |
| M-Track shoe width (mm) | 400 |
| N-Turntable width (mm) | 1790 |
| O-Max. digging height (mm) | 5889 |
| P-Max. dumping height (mm) | 4201 |
| Q-Max. digging depth (mm) | 3812 |
| R-Max. vertical wall digging depth (mm) | 3008 |
| T-Max. digging reach (mm) | 6257 |
| U-Max. digging reach at ground level (mm) | 6102 |
| V-Min. swing radius (mm) | 2585 |
| X-Distance between center of rotation and tail length (mm) | 1745 |
| Y-Track shoe thickness (mm) | 7 |
| Z-Height of counterweight (mm) | 1062 |
| A1-Ground length (in transportion)(mm) | 3375 |
| Arm length (mm) | 1580 |
| Boom length (mm) | 3050 |
