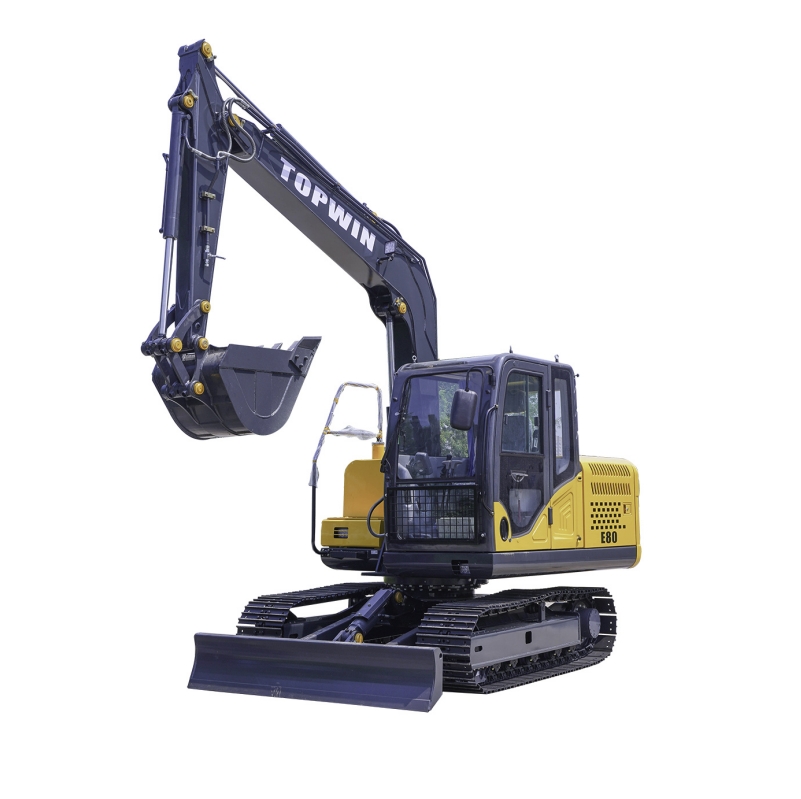

8 Ton Mini Excavator
Advantages Of 8 Ton Mini Excavator: Guide Multi-Function Operation, Speedy Attachment Of Accessories, Excavation,
Crushing, Trench Cleaning, Drilling And Bulldozing Sleeper Changer
Product Details
The railway sleeper changer is by and large used for the substitute of sleepers in the course of overhaul and sleeper replacement. The relevant sleeper sorts are wooden sleepers, 69, Type II and Type III concrete sleepers. The tools is of street rail dual-use type, which is handy for getting on and off the track, and can be shortly started out and braked on the track. It is bendy in operation, excessive in accuracy, speedy in response, and does no longer motive harm to the rails. The automobile runs stably and reliably.
Specification
| Model | E75 | E80 |
| Emission Standard | EURO V/EPA | EURO V/EPA |
| Make /Model | KUBOTA V2607 | YANMAR 4TNV98CT-VSY |
| Power,kW | 43 | 53.7 |
| Number of cylinder | 4 | 4 |
| Max. Travel speed,km/h | 2.5/4.5 | 2.7/5.1 |
| Width of track shoe,mm | 450 | 450 |
| Number of bottom roller per side | 5 | 5 |
| Standard Bucket capacity,m³ | 0.28 | 0.32 |
| Swing speed,rpm | 11 | 10 |
| Max. Grade ability | 35° | 0.7 |
| Max. Bucket digging force,kN | 56 | 52 |
| Max. Arm digging force,kN | 38 | / |
| Hydraulic system pressure,MPa | 27 | 32 |
| Operating weight,kg | 7500 | 8200 |
| Overall dimension (L*W*H),mm | 6054*2216*2672 | 6100*2300*2680 |
| Track length,mm | 2209 | 2760 |
| Track gauge,mm | 1745 | 1700 |
| Min. Ground clearance,mm | 375 | 380 |
| Swing radius at tail,mm | 1730 | 1755 |
| Max. Digging height,mm | 7023 | 7165 |
| Max. Dumping height,mm | 5195 | 5065 |
| Max. Digging depth, | 3898 | 4038 |
| Max. Vertical digging depth, | 2968 | 3505 |
| Max. Digging radius,mm | 6182 | 6330 |
| Min. swing radius,mm | 1740 | 1795 |
| Max. Lifting height of blade,mm | 382 | / |
| Max. Cutting depth of blade,mm | 332 | / |
| Boom swing angle(Left/Right) | / | / |
| Shipping term | 45294 | 45294 |
Our Factory
| Model | E60 |
| Operating weight | 5.82 |
| Bucket capacity | 0.22 |
| Engine model | YANMAR 4TNV98C |
| Rated power (kw) | 42.4 KW |
| Hydraulic pump model | KYB |
| Max.flow (L/min) | 160 |
| Working pressure (Mpa) | 24.5 |
| Control valve model | KYB |
| Swing motor model | INLINE |
| Travel motor model | EDDIE |
| Fuel tank capacity (L) | 125 |
| Hydraulic oil tank capacity (L) | 110 |
| Travel speed (km/h) | 2.5/4.0 |
| Swing speed (r/min) | 10 |
| Max. climbing degree (%) | 70 |
| Arm digging force | 26.1 |
| Bucket digging force (KN) | 36.7 |
| Average grounding pressure (Kpa) | 34 |
| A-Overall length (mm) | 5943 |
| B-Overall width (mm) | 2000 |
| C-Overall height (to top of boom)(mm) | 1995 |
| D-Overall height (to top of cab)(mm) | 2619 |
| E-Counterweight ground clearance(mm) | 740 |
| F-Min. ground clearance (mm) | 360 |
| G-Tail swing radius (mm) | 1745 |
| J-Track length (mm) | 2000 |
| J-Track length (mm) | 2665 |
| K-Track gauge (mm) | 1600 |
| L-Track width (mm) | 2000 |
| M-Track shoe width (mm) | 400 |
| N-Turntable width (mm) | 1790 |
| O-Max. digging height (mm) | 5889 |
| P-Max. dumping height (mm) | 4201 |
| Q-Max. digging depth (mm) | 3812 |
| R-Max. vertical wall digging depth (mm) | 3008 |
| T-Max. digging reach (mm) | 6257 |
| U-Max. digging reach at ground level (mm) | 6102 |
| V-Min. swing radius (mm) | 2585 |
| X-Distance between center of rotation and tail length (mm) | 1745 |
| Y-Track shoe thickness (mm) | 7 |
| Z-Height of counterweight (mm) | 1062 |
| A1-Ground length (in transportion)(mm) | 3375 |
| Arm length (mm) | 1580 |
| Boom length (mm) | 3050 |
