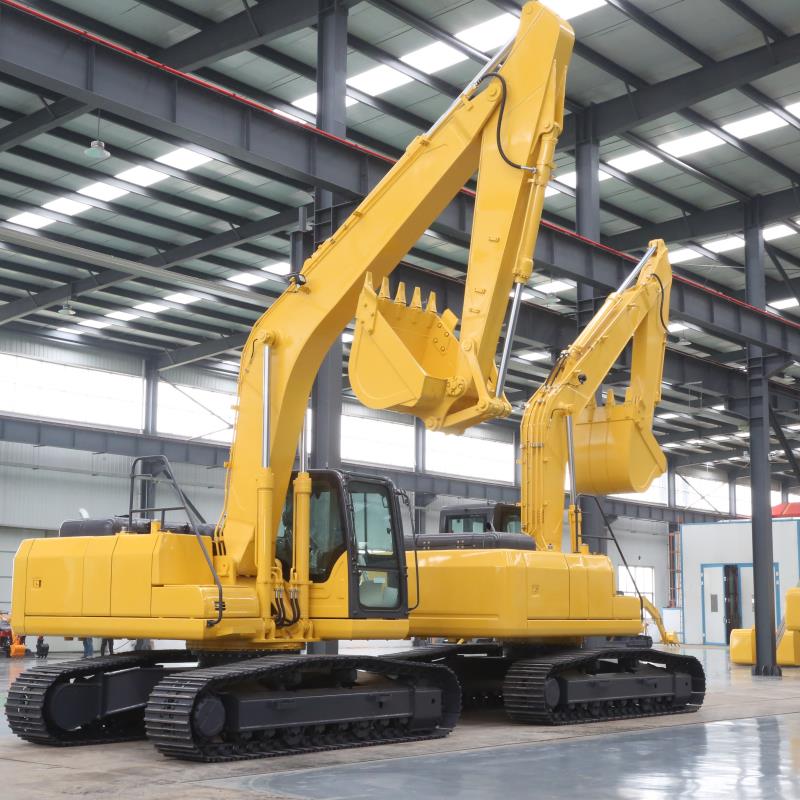

Construction Heavy Duty Excavator
Product Features
1. Cunmins Engine With Six Cylinders Make Sure The Power.
2. Famous Manufacturer Hydraulic Machine Components Make Sure The Steady Quality.
3. Equippedwith Double Gas Filter To Assurance Gasoline Purity To Shield Engine
25ton Excavator Massive Excavators For Sale Quite a Few Attachments And Work Equipment Are Accessible To Fulfill European And American High-End Market Demand. Multiple Counterweight Weights Available. Easily Detachable To Fulfill a Number Of Transportation Rules And Requirements. The New Technology Pinnacle Engine Assembly The T4F Emission Requirements Of The European And American Markets. Operator Selectable Work Modes And All Components Of The Computer Configuration Can Be Displayed On The Operator Display Display Screen For Operator Convenience. The Widened, Heated Suspension Seat Used To Be Cautiously Chosen Primarily Based On Many Hours Of Operator Feedback.
1. Extend Hydraulic Line For A Range Of Attachments.
2. Comfort Cabin, Broad And Open Sight Make Operator Convenient To Work.
3. Special Plan On Keeping Apart Engine And Radiation Space, The Usage Of More Suitable Cooling Fan To Enlarge Cooling Efficiency
4. Imported Pilot Manipulate Joystick Make Your Operation Convenient &Joyful
5. Strong Structural Components Make Positive The Working Fantastic Duration.
| MODEL | E250 | E270 |
| Operating weight (ton) | 25 | 27.5 |
| Bucket capacity (m3) | 1.2 | 1.3 |
| Engine model | Cummins QSB7.0 | Cummins QSB7.0 |
| Rated power (kw/r/min) | 142/1950 | 169/2050 |
| Volume of fuel tank (L) | 420 | 420 |
| Travel speed (km/h) | 5.2/3.5 | 4.1/2.5 |
| Swing speed(r/min) | 11 | 10.5 |
| Max gradeability (%) | 70 | 70 |
| Bucket digging force at power max (KN) ISO | 172 | 172 |
| Average grounding pressure(KPA) | 49.4 | 56 |
| Hydraulic pump model | KPM K3V112DT | KPM K3V112DT |
| Maximum flow （L/min) | 228x2 | 228*2 |
| Setting pressure (MPa) | 37.3 | 37.3 |
| Volume of hydraulic tank (L) | 246 | 246 |
| A Overall length (mm) | 9850 | 10000 |
| B Overall width (mm) | 2980 | 3190 |
| C Overall height （to top of boom）(mm) | 3135 | 3325 |
| D Overall height （to top of cab）(mm) | 3120 | 3220 |
| E Counterweight ground clearance (mm) | 1065 | 1080 |
| F Min. ground clearance (mm) | 440 | 520 |
| G Tail swing radius (mm) | 2810 | 2910 |
| H Track grounding length (mm) | 3640 | 3715 |
| J Track length (mm) | 4450 | 4625 |
| K Track gauge(mm) | 2380 | 2590 |
| L Track width (mm) | 2980 | 3190 |
| M Track shoe width (mm) | 600 | 600 |
| N Turntable width (mm) | 2700 | 2700 |
| O Max. digging height (mm) | 9310 | 9310 |
| P Max. dumping height (mm) | 6440 | 6440 |
| Q Max. digging depth (mm) | 6875 | 6875 |
| R Max. vertical wall digging depth (mm) | 5860 | 5860 |
| S Max. digging depth for 2.5m horizontal plane (mm) | 6680 | 6680 |
| T Max. digging reach (mm) | 10170 | 10170 |
| U Max.digging reach at ground level (mm) | 9990 | 9990 |
| V Min. swing radius (mm) | 3975 | 3975 |
| W Max. height at min swing radius (mm) | 7775 | 7775 |
| X Distance from swing center to rear (mm) | 2810 | 2910 |
| Z Height of counterweight (mm) | 2120 | 2165 |
| A1 Grounding length (in transportation) (mm) | 5360 | 5360 |
| Arm length (mm) | 3050 | 3050 |
| Boom length (mm) | 5850 | 5850 |

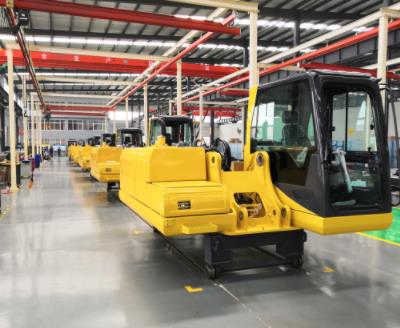

Our Factory
| Model | E60 |
| Operating weight | 5.82 |
| Bucket capacity | 0.22 |
| Engine model | YANMAR 4TNV98C |
| Rated power (kw) | 42.4 KW |
| Hydraulic pump model | KYB |
| Max.flow (L/min) | 160 |
| Working pressure (Mpa) | 24.5 |
| Control valve model | KYB |
| Swing motor model | INLINE |
| Travel motor model | EDDIE |
| Fuel tank capacity (L) | 125 |
| Hydraulic oil tank capacity (L) | 110 |
| Travel speed (km/h) | 2.5/4.0 |
| Swing speed (r/min) | 10 |
| Max. climbing degree (%) | 70 |
| Arm digging force | 26.1 |
| Bucket digging force (KN) | 36.7 |
| Average grounding pressure (Kpa) | 34 |
| A-Overall length (mm) | 5943 |
| B-Overall width (mm) | 2000 |
| C-Overall height (to top of boom)(mm) | 1995 |
| D-Overall height (to top of cab)(mm) | 2619 |
| E-Counterweight ground clearance(mm) | 740 |
| F-Min. ground clearance (mm) | 360 |
| G-Tail swing radius (mm) | 1745 |
| J-Track length (mm) | 2000 |
| J-Track length (mm) | 2665 |
| K-Track gauge (mm) | 1600 |
| L-Track width (mm) | 2000 |
| M-Track shoe width (mm) | 400 |
| N-Turntable width (mm) | 1790 |
| O-Max. digging height (mm) | 5889 |
| P-Max. dumping height (mm) | 4201 |
| Q-Max. digging depth (mm) | 3812 |
| R-Max. vertical wall digging depth (mm) | 3008 |
| T-Max. digging reach (mm) | 6257 |
| U-Max. digging reach at ground level (mm) | 6102 |
| V-Min. swing radius (mm) | 2585 |
| X-Distance between center of rotation and tail length (mm) | 1745 |
| Y-Track shoe thickness (mm) | 7 |
| Z-Height of counterweight (mm) | 1062 |
| A1-Ground length (in transportion)(mm) | 3375 |
| Arm length (mm) | 1580 |
| Boom length (mm) | 3050 |
