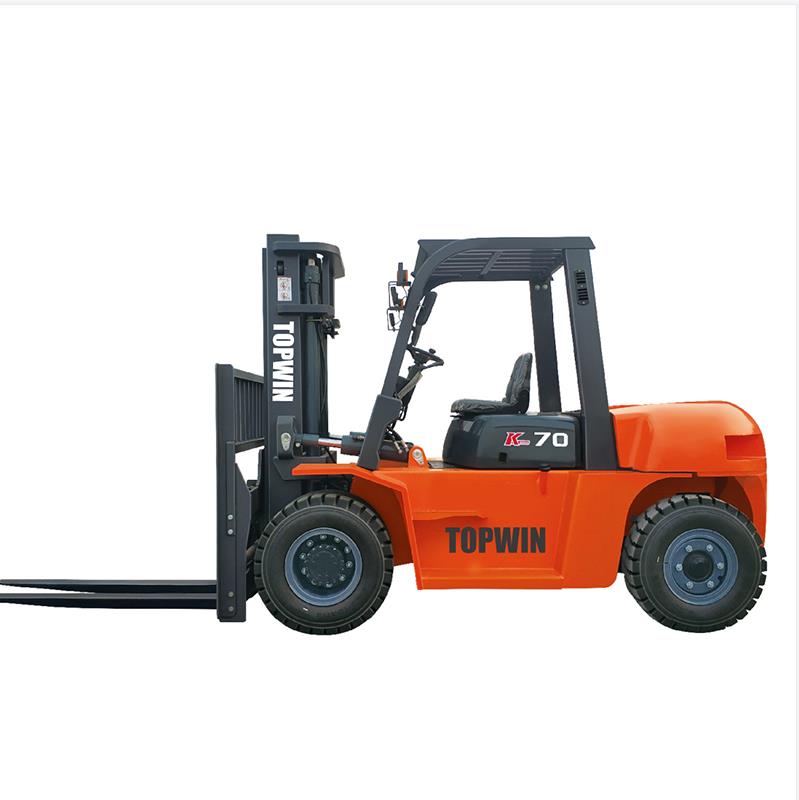

7 Ton Diesel Forklift For Sale
Diesel Forklifts, Rated Load 7 Ton
Advantages:
1. Adopt Full Hydraulic Electricity Guidance Mechanism, Bendy And Mild Steering.
2. The Gearbox Is Unbiased From The The Front Axle, Making Renovation Greater Convenient.
3. The Oil Cylinder Adopts Imported Sealing Ring To Forestall Oil Leakage.
1. Customize Masts Of Unique Heights In Accordance To Consumer Requirements
Level Two Three Meters, 3.5 Meters, Four Meters, 4.5 Meters, 5 Meters,Etc.
Level Three 4.5 Meters, 5 Meters, 6 Meters, 7.3 Meters, Eight Meters,Etc.
2. Customize Forks Of Exclusive Lengths In Accordance To Consumer Requirements
1.07 Meters, 1.22 Meters, 1.37 Meters, 1.52 Meters, 1.82 Meters, 2.5 Meters,Etc.
3. Optional Facet Shift, Aspect Shift Fork, Full Free Lifting, Double The Front Wheels, Backlit Headlights,
Strong Tires, Brick Clamps, Paper Roll Clamps, Tilting Forks,Etc.
| Model | FD60 | FD70 |
| Rated Lifting Weight ,Kg | 6000 | 7000 |
| Load Center ,Mm | 600 | 600 |
| Power | Diesel | Diesel |
| Max. Lifting Speed (Full Load) ,Mm∕S | 470 | 450 |
| Max. Travel Speed (Full Load/Unload) ,Km/H | 21∕13 | 21∕13 |
| Max. Traction Force (Full Load/Unload), Kn | 53 | 54 |
| Grade-Ability (Full / No Load) ,% | 20∕25 | 20∕25 |
| H1 Lifting Height ,Mm | 3000 | 3000 |
| Free Lifting Height ,Mm | 150 | 150 |
| Mast Inclination (Α Front / Β Rear), Degree | 6∕12 | 6∕12 |
| Min. Turning Radius ,Mm | 3430 | 3450 |
| Min. Right Angle Channel ,Mm | 3090 | 3090 |
| Min. Ground Clearance ,Mm | 230 | 230 |
| A Overall Length (Including Forks) ,Mm | 4760 | 4850 |
| B Overall Width ,Mm | 1995 | 1995 |
| H Overall Height (Mast Retraction) ,Mm | 2500 | 2500 |
| H2 Overall Height (Full Extension Of Mast) ,Mm | 4420 | 4420 |
| H3 Overhead Guard Height ,Mm | 2420 | 2420 |
| A1 Front Overhang ,Mm | 635 | 610 |
| A2 Wheelbase ,Mm | 2250 | 2250 |
| B1 Wheel Treat Front ,Mm | 1470 | 1470 |
| B2 Wheel Treat Rear ,Mm | 1700 | 1700 |
| Front Tyre | 8.25-15-14 | 8.25-15-14 |
| Rear Tyre | 8.25-15-14 | 8.25-15-14 |
| Weight ,Kg | 8640 | 9500 |
| B3 Fork Width,,Mm | 150 | 150 |
| H4 Fork Thickness ,Mm | 60 | 65 |
| Fork Bracket Height ,Mm | 1365 | 1365 |
| A3 Standard Fork Length ,Mm | 1220 | 1220 |
| Engine | China stage Ⅲ | China stage Ⅲ |
| Rated Power Kw | 66 | 66 |
| Speed At Rated Power Rpm | 2200 | 2200 |
| Maximum Torque Nm | 350 | 350 |
| Speed At Maximum Torque Rpm | 1600 | 1600 |
| Transmission | Hydraulic | Hydraulic |
| General | Model | FD25 | |
| Rated capacity | kg | 2500 | |
| Load center | mm | 500 | |
| Power type | Diesel | ||
| Transmission | Hydraulic/Mechanical | ||
| Dimensions | Lifting height | mm | 3000 |
| Free lifting height | mm | 60 | |
| Turning radius | mm | 2450 | |
| Overall length | mm | 3605 | |
| Overall width | mm | 1160 | |
| Overall height (mast lowered) | mm | 2095 | |
| Overall height (mast raised) | mm | 4080 | |
| Overall height (overhead guard) | mm | 2095 | |
| Fork length | mm | 1070 | |
| Fork width | mm | 122 | |
| Fork thickness | mm | 40 | |
| Performance | Max. driving speed (with/without load) | km/h | 17/19 |
| Max. lifting speed (with load) | mm/s | 400 | |
| Max. traction (with/without load) | kn | 15/10 | |
| Gradeability (with/without load) | % | 15/20 | |
| Tilting angles (forward/backward) | ° | 6/12 | |
| Service weight | kg | 3600 | |
| Engine | Engine model | 490BPG | |
| Power | kw | 37 | |
| Rated speed | rpm | 2500 | |
| Wheel | Front overhang | mm | 451 |
| Wheel base | mm | 1640 | |
| Front tread | mm | 970 | |
| Rear tread | mm | 970 | |
| Front tire | 7.00-12 | ||
| Rear tire | 6.00-9 |
