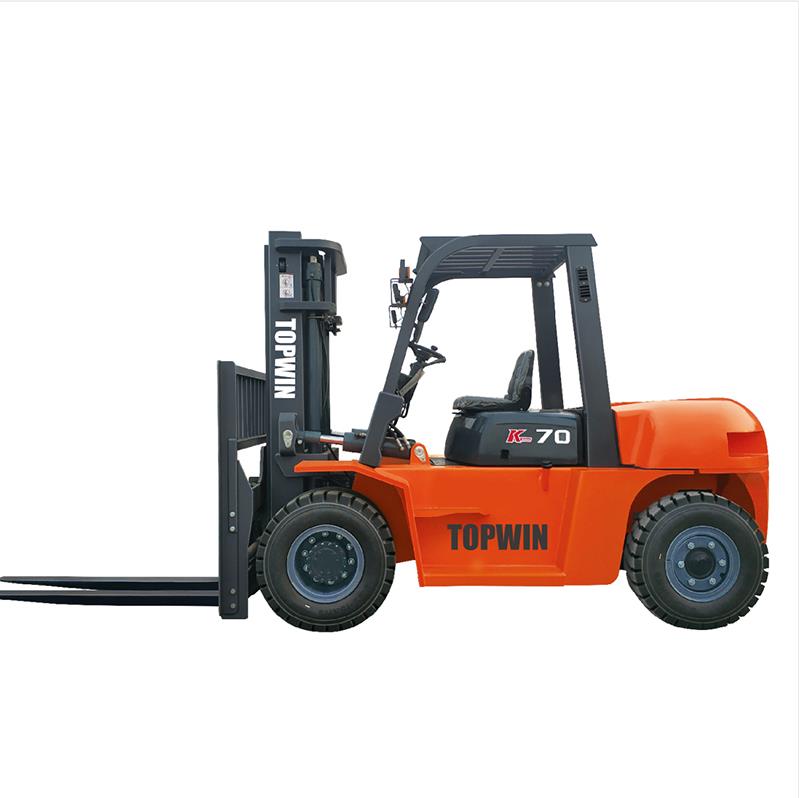

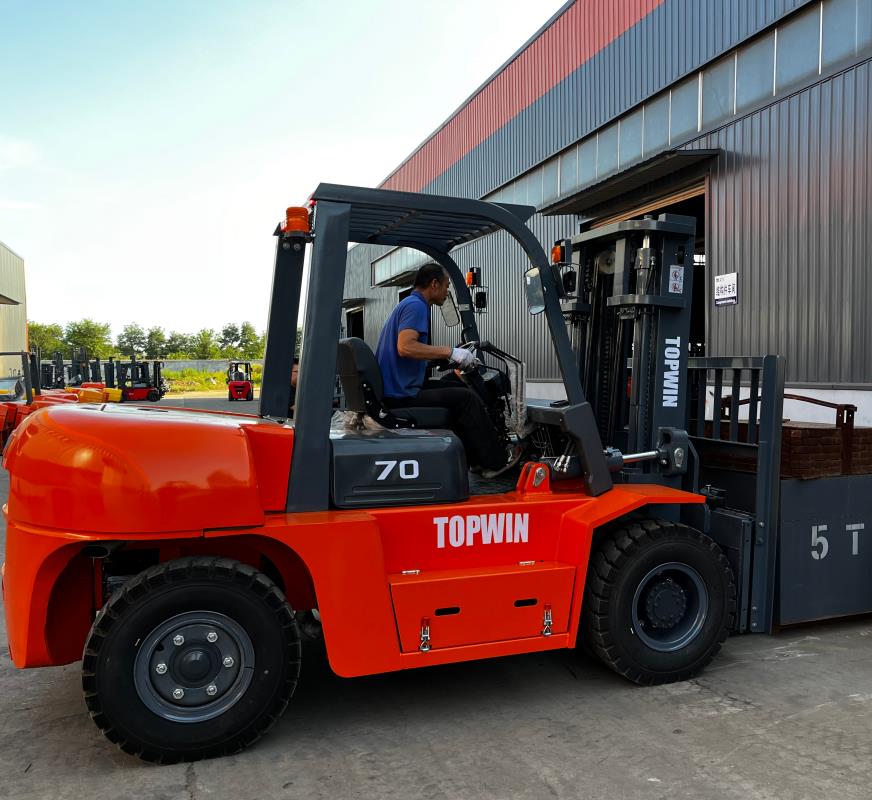

7000KG Forklift Truck
Diesel Forklifts, Rated Load 7 Ton
1. The Physique Chassis Is High,
The Floor Clearance Is Large,
And The Passability Is Strong.
High Configuration, Excessive Performance, Low Gasoline Consumption, Lovely Appearance,
Large Utility Range, Etc., Can Furnish Helping Tools.
Product Details
Optional Configuration
Cab With Fan,Heater In The Cab,Solid Tires,High-Grade Seat, Tilting And Lifting Cylinder Sleeve,
Dual Air Filter, Oil Type Air Filter, Fire Extinguisher Bottle,Fire Cover,Eur Ii Uk Perkins 1104D-44Ta Engine,
Japan Isuzu
6Bg1-02 Engine, Special Mast,3-Stage Mast With Full-Free Lift,Lengthen Fork.
| Model | FD60 | FD70 |
| Rated Lifting Weight ,Kg | 6000 | 7000 |
| Load Center ,Mm | 600 | 600 |
| Power | Diesel | Diesel |
| Max. Lifting Speed (Full Load) ,Mm∕S | 470 | 450 |
| Max. Travel Speed (Full Load/Unload) ,Km/H | 21∕13 | 21∕13 |
| Max. Traction Force (Full Load/Unload), Kn | 53 | 54 |
| Grade-Ability (Full / No Load) ,% | 20∕25 | 20∕25 |
| H1 Lifting Height ,Mm | 3000 | 3000 |
| Free Lifting Height ,Mm | 150 | 150 |
| Mast Inclination (Α Front / Β Rear), Degree | 6∕12 | 6∕12 |
| Min. Turning Radius ,Mm | 3430 | 3450 |
| Min. Right Angle Channel ,Mm | 3090 | 3090 |
| Min. Ground Clearance ,Mm | 230 | 230 |
| A Overall Length (Including Forks) ,Mm | 4760 | 4850 |
| B Overall Width ,Mm | 1995 | 1995 |
| H Overall Height (Mast Retraction) ,Mm | 2500 | 2500 |
| H2 Overall Height (Full Extension Of Mast) ,Mm | 4420 | 4420 |
| H3 Overhead Guard Height ,Mm | 2420 | 2420 |
| A1 Front Overhang ,Mm | 635 | 610 |
| A2 Wheelbase ,Mm | 2250 | 2250 |
| B1 Wheel Treat Front ,Mm | 1470 | 1470 |
| B2 Wheel Treat Rear ,Mm | 1700 | 1700 |
| Front Tyre | 8.25-15-14 | 8.25-15-14 |
| Rear Tyre | 8.25-15-14 | 8.25-15-14 |
| Weight ,Kg | 8640 | 9500 |
| B3 Fork Width,,Mm | 150 | 150 |
| H4 Fork Thickness ,Mm | 60 | 65 |
| Fork Bracket Height ,Mm | 1365 | 1365 |
| A3 Standard Fork Length ,Mm | 1220 | 1220 |
| Engine | China stage Ⅲ | China stage Ⅲ |
| Rated Power Kw | 66 | 66 |
| Speed At Rated Power Rpm | 2200 | 2200 |
| Maximum Torque Nm | 350 | 350 |
| Speed At Maximum Torque Rpm | 1600 | 1600 |
| Transmission | Hydraulic | Hydraulic |
| General | Model | FD25 | |
| Rated capacity | kg | 2500 | |
| Load center | mm | 500 | |
| Power type | Diesel | ||
| Transmission | Hydraulic/Mechanical | ||
| Dimensions | Lifting height | mm | 3000 |
| Free lifting height | mm | 60 | |
| Turning radius | mm | 2450 | |
| Overall length | mm | 3605 | |
| Overall width | mm | 1160 | |
| Overall height (mast lowered) | mm | 2095 | |
| Overall height (mast raised) | mm | 4080 | |
| Overall height (overhead guard) | mm | 2095 | |
| Fork length | mm | 1070 | |
| Fork width | mm | 122 | |
| Fork thickness | mm | 40 | |
| Performance | Max. driving speed (with/without load) | km/h | 17/19 |
| Max. lifting speed (with load) | mm/s | 400 | |
| Max. traction (with/without load) | kn | 15/10 | |
| Gradeability (with/without load) | % | 15/20 | |
| Tilting angles (forward/backward) | ° | 6/12 | |
| Service weight | kg | 3600 | |
| Engine | Engine model | 490BPG | |
| Power | kw | 37 | |
| Rated speed | rpm | 2500 | |
| Wheel | Front overhang | mm | 451 |
| Wheel base | mm | 1640 | |
| Front tread | mm | 970 | |
| Rear tread | mm | 970 | |
| Front tire | 7.00-12 | ||
| Rear tire | 6.00-9 |
