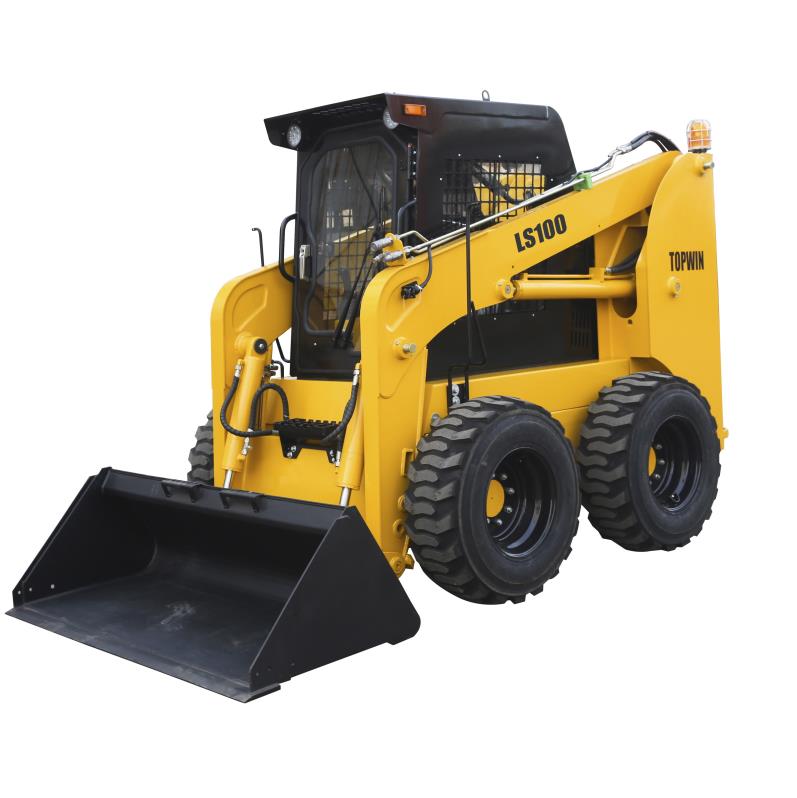

Skid Steer Loader For Sale
Tws75 55Kw Skid Steer Loader With Rated Load 1000Kg
1 Compact Structure,Maneuverable Movement Suitable For Narrow Space Operation
2 Closed Cabin With Joystick Control System
3 Multi-Function With a Wide Range Of Attachments
4 Hydraulic Brake
skid steer features
1、Powered By a 74.3Hp Engine, Boasting Exceptional 3350Kg Bucket Breakout Force And Outstanding Lifting Capacity At 3350Kg, The High Performance And Productivity To a New Level. The New High Flow Model Has Increased Hydraulic Flow For The Ability To Operate a Variety Of Attachments That Require More Hydraulic Horsepower, With The Versatility To Meet Your Every Need.
2、Xinchai 498T Engine, 55kw, 75hp, Germany Rexroth Pump, Rexroth Motor, Imported Gear Pump, China Cylinder, Italy Bp Multi-Way Valve And Joystick Valve, 12-16.5 Tire, Hydraulic Brake.
Enclosed Cabin.
Hydraulic Control
Standard Bucket

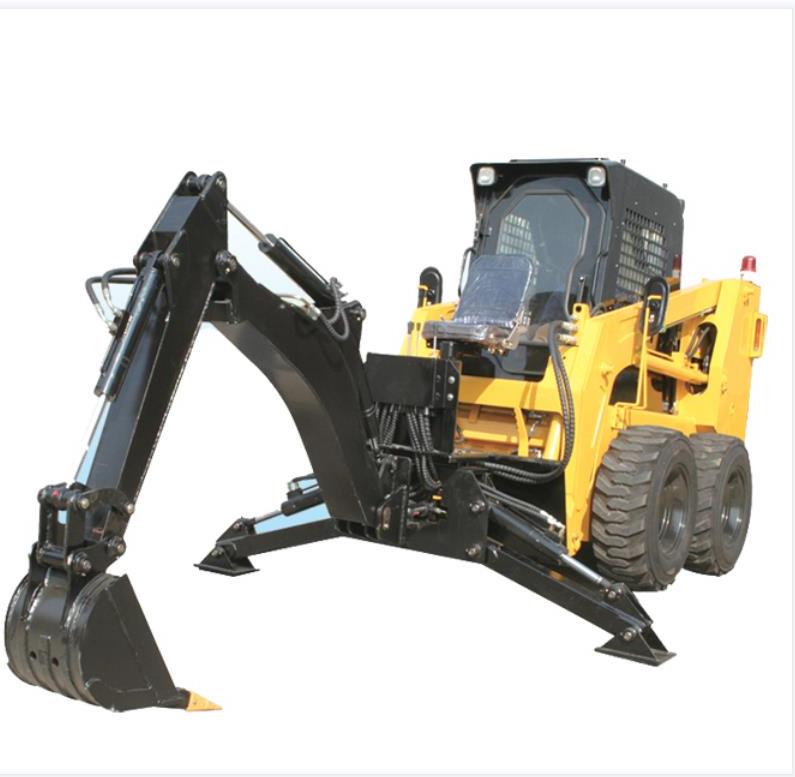

Auxiliary Hydraulic Couplers(Common As Bobcat)
Skid Steer Loader Specifications
tem | Model | TWS35 | TWS45G | TWS60G | TWS65B |
1 | Operating load (kg) | 500 | 700 | 850 | 950 |
2 | Max Speed(km/h) | 10 | 12 | 12 | 12 |
3 | Rated Flux (L/min) | 60 | 75 | 75 | 80 |
4 | Tire(Track) Model | 8.5-15 | 10-16.5 | 12-16.5 | 12-16.5 |
5 | Rated Power (kW/HP) | 29.5/40 | 37/50 | 45/61 | 55/75 |
6 | Fuel Tank Capacity (L) | 60 | 65 | 80 | 75 |
7 | Self Weight Bucket (kg) | 2300 | 3000 | 3200 | 3350 |
8 | Bucket Capacity (m 3 ) | 0.3 | 0.4 | 0.5 | 0.5 |
A | Overall Operating Height (mm) | 3300 | 3980 | 4000 | 4000 |
B | Height To Bucket Hinge Pin (mm) | 2725 | 3080 | 3100 | 3100 |
C | Height To Top Of Cab (mm) | 2000 | 2140 | 2160 | 2160 |
D | Height To Bottom Of Level Bucket(mm) | 2558 | 2913 | 2933 | 2933 |
E | Overall Length Without Bucket(mm) | 2300 | 2640 | 2750 | 2750 |
F | Overall Length with bucket(mm) | 3080 | 3420 | 3490 | 3490 |
G | Dumping angle at maximum height(° ) | 40 | 40 | 40 | 40 |
H | Dumping height(mm) | 2050 | 2380 | 2400 | 2400 |
I | Dumping reach(mm) | 790 | 700 | 750 | 750 |
J | Rollback o bucket on ground(° ) | 30 | 30 | 30 | 30 |
K | Rollback of bucket at full height(° ) | 104 | 104 | 104 | 104 |
L | Wheelbase(mm) | 897 | 991 | 991 | 1085 |
M | Ground clearance(mm) | 140 | 185 | 205 | 205 |
N | Angle of departure(° ) | 20 | 20 | 20 | 20 |
O | Front turning radius without bucket(mm) | 1098 | 1168 | 1198 | 1204 |
P | Front tuning radius(mm) | 1760 | 1958 | 1958 | 2030 |
Q | Rear tuning radius(mm) | 1296 | 1630 | 1728 | 1706 |
R | Rear axle to bumper (mm) | 964 | 1108 | 1208 | 1082 |
S | Tread width, centerline to centerline (mm) | 1080 | 1450 | 1500 | 1500 |
T | Width (mm) | 1350 | 1720 | 1880 | 1880 |
U | Bucket width (mm) | 1400 | 1740 | 1880 | 1880 |
Product Details
Skid Steer Hydraulic Connector Skid Steer Loader Cabin Skid Steer Loader Radiator
Skid Steer Loader Panel Skid Steer Loader Pilot Lever Skid Steer Loader Quick Hitch
Skid Steer Loader Attachments
Company Profile
Shandong Topwin Machinery Co.,Ltd. (Topwin For Short) Is The One-Stop Solution Provider For Construction Machinery, Mining Machinery, Agricultural Machinery And Logistic Machinery In China.
tem | Model | TWS35 | TWS45G | TWS60G | TWS65B | TWS100 | TWSS65 | TWSS100 |
1 | Operating load (kg) | 500 | 700 | 850 | 950 | 1200 | 1000 | 1200 |
2 | Max Speed(km/h) | 10 | 12 | 12 | 12 | 12/18 | 12/18 | 12/18 |
3 | Rated flux (L/min) | 60 | 75 | 75 | 80 | 80 | 75 | 88 |
4 | Tire(track) model | 8.5-15 | 10-16.5 | 12-16.5 | 12-16.5 | 12-16.5 | 320X84 | 320X84 |
5 | Rated power (kW/HP) | 29.5/40 | 37/50 | 45/61 | 55/75 | 74/100 | 55/75 | 74/100 |
6 | Fuel tank capacity (L) | 60 | 65 | 80 | 75 | 90 | 80 | 90 |
7 | Self weight bucket (kg) | 2300 | 3000 | 3200 | 3350 | 3550 | 3800 | 4500 |
8 | Bucket capacity (m 3 ) | 0.3 | 0.4 | 0.5 | 0.5 | 0.55 | 0.5 | 0.55 |
A | Overall operating height (mm) | 3300 | 3980 | 4000 | 4000 | 4070 | 3480 | 4070 |
B | Height to bucket hinge pin (mm) | 2725 | 3080 | 3100 | 3100 | 3150 | 2900 | 3150 |
C | height to top of cab (mm) | 2000 | 2140 | 2160 | 2160 | 2160 | 2150 | 2160 |
D | Height to bottom of level bucket(mm) | 2558 | 2913 | 2933 | 2933 | 2983 | 2730 | 2983 |
E | Overall length without bucket(mm) | 2300 | 2640 | 2750 | 2750 | 2880 | 2750 | 3000 |
F | Overall length with bucket(mm) | 3080 | 3420 | 3490 | 3490 | 3580 | 3500 | 3700 |
G | Dumping angle at maximum height(° ) | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
H | Dumping height(mm) | 2050 | 2380 | 2400 | 2400 | 2450 | 2230 | 2450 |
I | Dumping reach(mm) | 790 | 700 | 750 | 750 | 700 | 715 | 700 |
J | Rollback o bucket on ground(° ) | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
K | Rollback of bucket at full height(° ) | 104 | 104 | 104 | 104 | 104 | 104 | 104 |
L | Wheelbase(mm) | 897 | 991 | 991 | 1085 | 1185 | 1500 | 1500 |
M | Ground clearance(mm) | 140 | 185 | 205 | 205 | 205 | 200 | 200 |
N | Angle of departure(° ) | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
O | Front turning radius without bucket(mm) | 1098 | 1168 | 1198 | 1204 | 1278 | 1298 | 1365 |
P | Front tuning radius(mm) | 1760 | 1958 | 1958 | 2030 | 2144 | 2010 | 2200 |
Q | Rear tuning radius(mm) | 1296 | 1630 | 1728 | 1706 | 1857 | 1714 | 1742 |
R | Rear axle to bumper (mm) | 964 | 1108 | 1208 | 1082 | 1082 | 890 | 938 |
S | Tread width, centerline to centerline (mm) | 1080 | 1450 | 1500 | 1500 | 1500 | 1462 | 1654 |
T | Width (mm) | 1350 | 1720 | 1880 | 1880 | 1880 | 1782 | 1994 |
U | Bucket width (mm) | 1400 | 1740 | 1880 | 1880 | 1880 | 1830 | 2030 |
