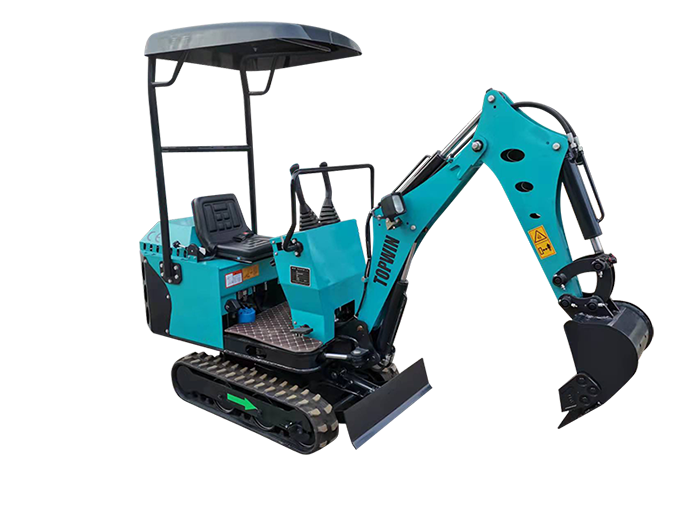

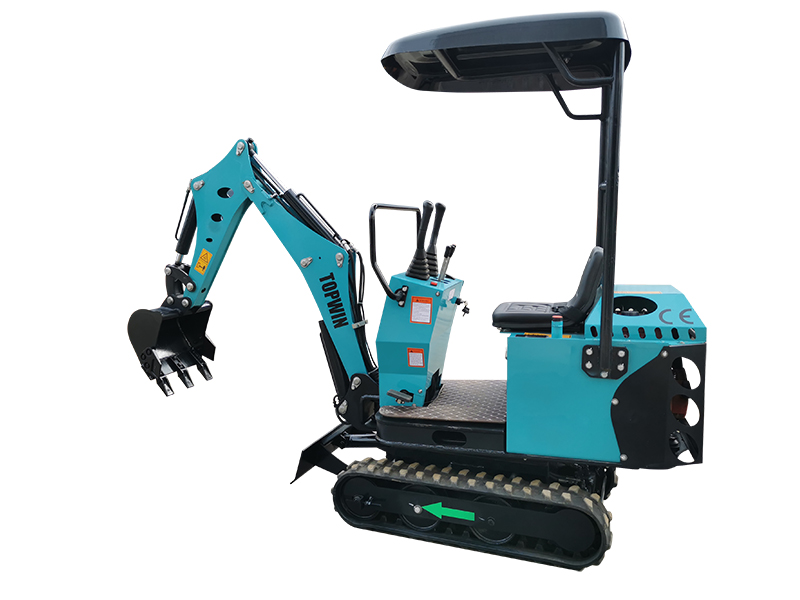

E08 Mini Excavator
1. With 120° Deflection Boom, 30° Left And 90° Right.
2. The Competitive Price That Makes You Scream!
3. The Appearance Is Designed By The Italian Designer.
4. Increase Air Outlet, Improve The Heat Dissipation Capacity.
Product Details
E08 Mini Excavator With 120° Deflection Boom, 30° Left And 90° Right. The Competitive Price That
Makes You Scream!
The Mini Excavator's Appearance Is Designed By The Italian Designer With Increase Air Outlet,
Improve The Heat Dissipation Capacity.It Can Also Optional Extend Track. The Actual Weight
Can Be 1.1 Ton. Using S355 Steel Material Which Is Good Steel Plate Strength.
| Model | E08 |
| ENGINE | EPA engine |
| Emission Standard | EURO V/ |
| Make /Model | KOOP/B&S |
| Power | 7kw/9.9kw |
| Number of cylinder | 1 |
| TRACK SYSTEM | |
| Max. Travel speed | 2.2km/h |
| Width of track shoe | 150mm |
| Number of bottom roller per side | 2 |
| PERFORMANCE | |
| Standard Bucket capacity | 0.023m³ |
| Swing speed | 12 r/min |
| Max. Grade ability | 58%(30°) |
| Max. Bucket digging force | 7.5 KN |
| Max. Arm digging force | / |
| Hydraulic system pressure | 18MPa |
| Operating weight | 800kg |
| Model | E08 |
| ENGINE | |
| Emission Standard | EURO V/ |
| EPA engine | |
| Make /Model | KOOP/B&S |
| Power | 7kw/9.9kw |
| Number of cylinder | 1 |
| TRACK SYSTEM | |
| Max. Travel speed | 2.2km/h |
| Width of track shoe | 150mm |
| Number of bottom roller per side | 2 |
| PERFORMANCE | |
| Standard Bucket capacity | 0.023m³ |
| Swing speed | 12 r/min |
| Max. Grade ability | 58%(30°) |
| Max. Bucket digging force | 7.5 KN |
| Max. Arm digging force | / |
| Hydraulic system pressure | 18MPa |
| Operating weight | 800kg |
