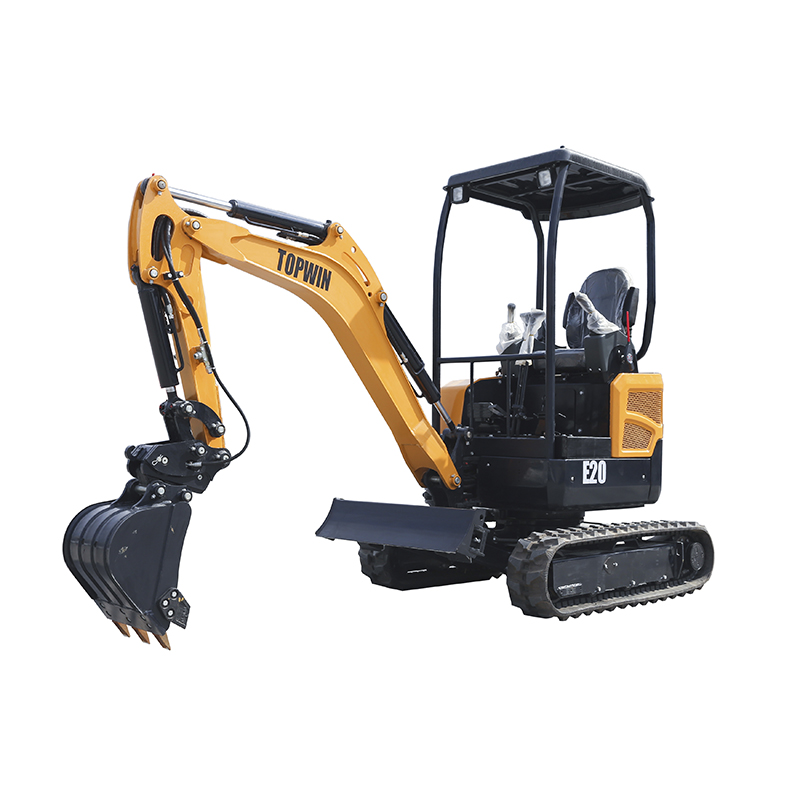

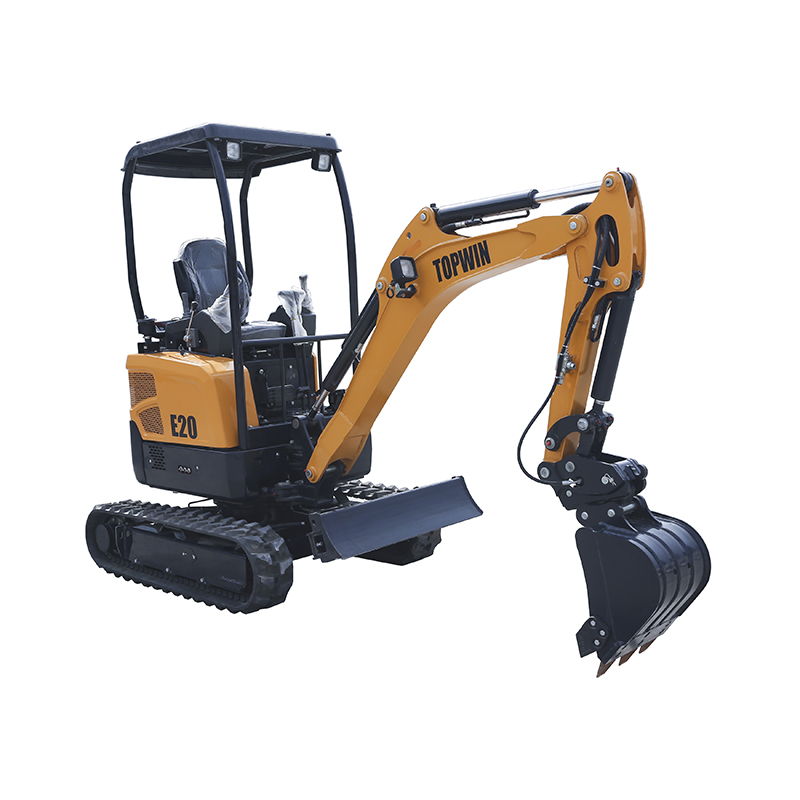

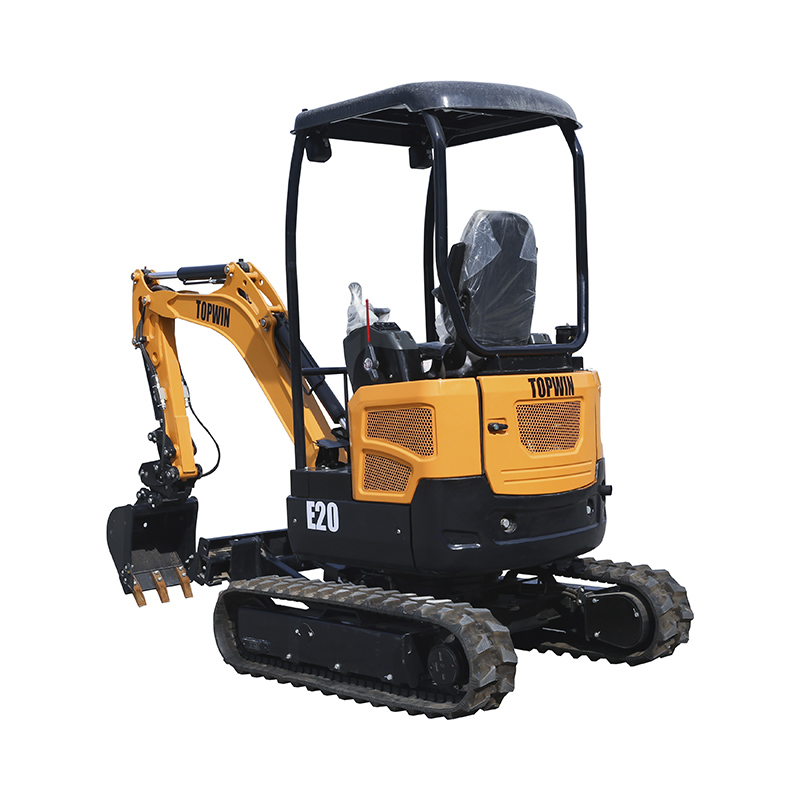

E20 Mini Excavator
Zero tail, suited for work in narrow spaces.
Standard with extendable chassis for narrow entrance.
Deflection boom for close digging to walls.
Japan Nachi pump Optional for Yanmar Euro V engine/ EPA 4 emission engine.
Efficient and reliable at work.
Model | TWE20 |
ENGINE | |
Emission Standard | Tier 3/ Stage III |
Make /Model | KUBOTA D1105 |
Power /Rotation speed | 14.1kw(20HP)@2000rpm |
Number of cylinder | 3 |
TRACK SYSTEM | |
Maximum Travel speed | 4km/h |
Width of track shoe(Rubber &steel track) | 230mm |
Number of track shoe per side(steel track only) | 38pcs |
Number of upper roller per side | 1 |
Number of bottom roller per side | 3 |
PERFORMANCE PARAMETER | |
Standard Bucket capacity | 0.07m³ |
Swing speed | 9 rpm |
Maximum Grade ability | 35° |
Maximum Bucket digging force | 18KN |
Maximum Arm digging force | 11KN |
Hydraulic system pressure | 21.5Mpa |
Machine weight | 2000kg |
MACHINE SIZE | |
Overall dimension (L*W*H) | 3555mm*990mm/1300mm*2290mm |
Axle base/Track length on ground | 1230mm |
Track gauge | 760mm |
Minimum Ground clearance | 150mm |
Swing radius at tail | 650mm |
WORKING RANGE | |
Maximum Digging height | 3700mm |
Maximum Dumping height | 2440mm |
Maximum Digging depth | 2400mm |
Maximum Vertical digging depth | 2025mm |
Maximum Digging radius | 4040mm |
Minimum swing radius | 1610mm |
Maximum Lifting height of blade | 240mm |
Maximum Cutting depth of blade | 270mm |
Boom swing angle(Left/Right) | 75°/45° |
Shipping method | 4 units in 20GP container |
