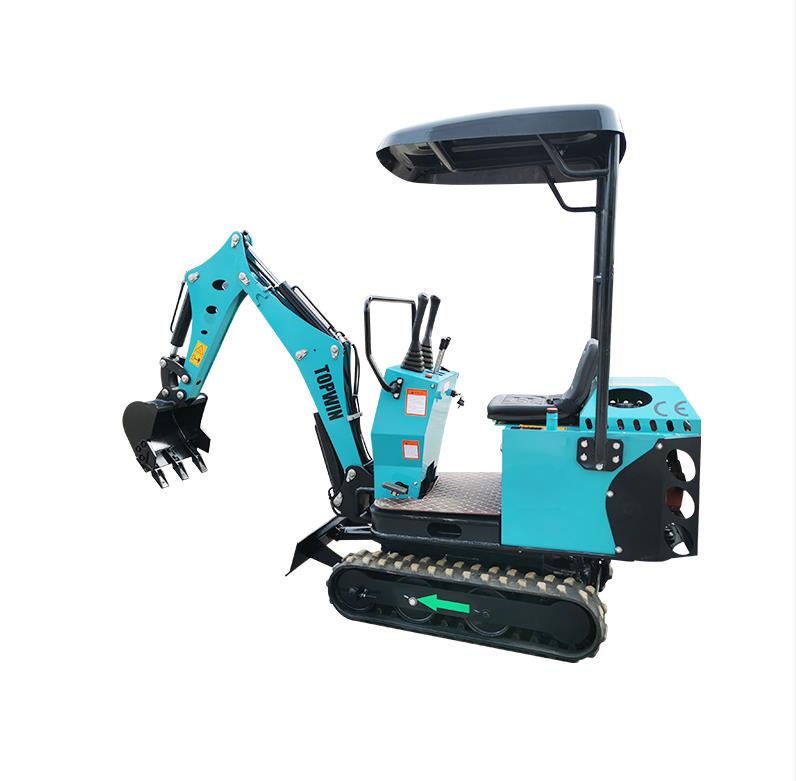

Mini Digger For Sale Ireland With Thumb
Koop Brand Kd192F-1 Diesel Engine Euro V
China Brand Main Pump
China Brand Main Valve
China Brand Driving And Swing Motor
Open Cabin
Rubber Track :150mm
1.All Structural Parts Are Finely Processed, And Shot Blasting, Pickling, And Baking Finish Process Are Adopted. The Surface Has High Gloss And High Paint Adhesion.
2.The Hydraulic Pump Is a Pure Cast Iron Pump, Which Is More Wear-Resistant Than Aluminous Pump Under The 3600 Rpm Engine High Speed.
3.All Hydraulic Pipes Adopt High-Quality German Imported Pipes
4. For Rubber Track Which Uses Jin Lilong/Yuanchuang Brand, a Well-Known Crawler Brand In China .
5.French Company Design Concepts And Elements Are Added Pc08 Micro Excavator Can Also Be Used With Various Accessories, Such As Grabble, Auger, Plain Bucket, Ripper, Rake, Trailer, Etc.
We Believe It Will Become Your Good Helper.
Model | E08 |
ENGINE | |
Emission Standard | EURO V/EPA engine |
Make /Model | KOOP/B&S |
Power | 7kw/9.9kw |
Number of cylinder | 1 |
TRACK SYSTEM | |
Max. Travel speed | 2.2km/h |
Width of track shoe | 150mm |
Number of bottom roller per side | 2 |
PERFORMANCE | |
Standard Bucket capacity | 0.023m³ |
Swing speed | 12 r/min |
Max. Grade ability | 58%(30°) |
Max. Bucket digging force | 7.5 KN |
Max. Arm digging force | / |
Hydraulic system pressure | 18MPa |
Operating weight | 800kg |
MACHINE SIZE | |
Overall dimension (L*W*H),mm | 2600*820*2030 |
Track length | 1140mm |
Track gauge | / |
Min. Ground clearance | 80mm |
Swing radius at tail | / |
WORKING RANGE | |
Max. Digging height | 2560mm |
Max. Dumping height | 1780mm |
Max. Digging depth | 1000mm |
Max. Vertical digging depth | |
Max. Digging radius | 2575mm |
Min. swing radius | 1100mm |
Max. Lifting height of blade | 150mm |
Max. Cutting depth of blade | 100mm |
Boom swing angle(Left/Right) | / |
Shipping method 20 feet container/40feet HC container | 6/20 units |
