Amphibious Excavator Manufacturers
According To Your Requests,
We Could Assemble Different Brands
And Model Excavator Upper Parts, Like Pc200,
Hitachi Zx210, Dh215, Ex120,Cat315.... Also,
If You Have Crawler Excavator (New Or Used) ,

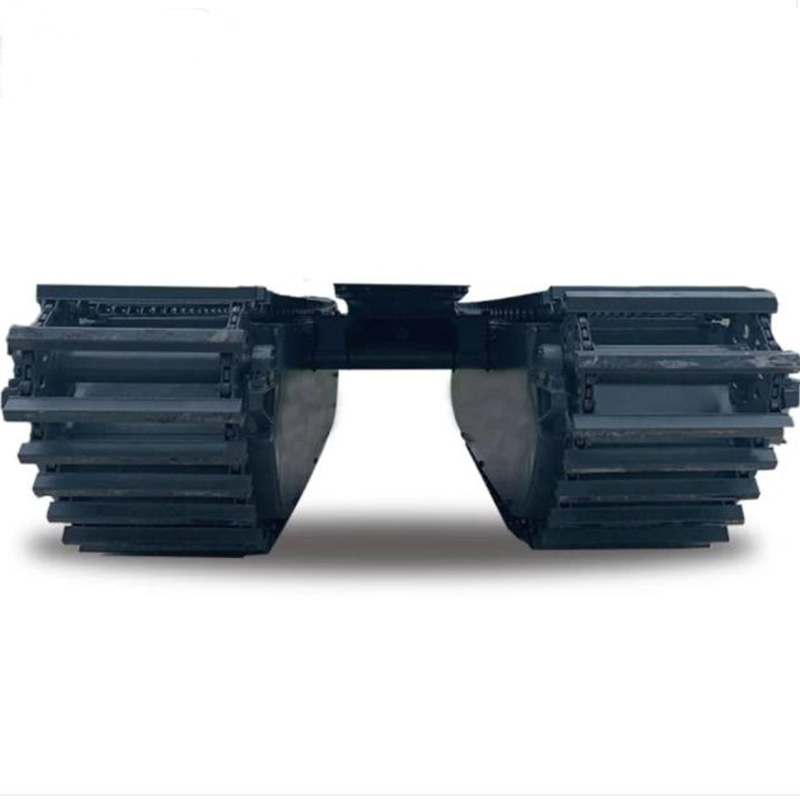

We Can Only Produce Amphibious Undercarriage (Pontoon Undercarriage) For You.
Product Description
Amphibious Excavator Is Specially Designed To Work In a Swampy Area, Wetland, Shallow Water, And All Soft Terrains With The Ability To Float On Water. Our Amphibious Pontoon/Undercarriage Has Been Widely And Effectively Applied For Removing Silty Clay, Clearing Silted Trenches, Removing Wood, And All Swampland And Shallow Water Operation Where The Traditional Standard Excavators Have Limits.
Amphibious Excavator Is Also Called Floating Excavator, Which Is Specially Designed To Function Effectively On Rivers, Swampy Lakes, Canals And Settling Pond Rehabilitation Areas. We Have Professional Team To Design And Custom Made High Quality And Versatile Models Of Amphibious Excavators For All Major Brands Of Excavators Ranging From 5 To 50 Tons. We Can Offer Different Project Solutions Including Dredging Pump, Long-Way Walking, Loading Platform, Sectional Barge And Long Reach Arms.
TOPWIN AMPHIBIOUS EXCAVATOR COULD BE USED TO DO
1.Deepening Of Canal, River Channel And River Mouth
2.Swamp Land Clearing At Mining Area, Plantation And Forest
3.Building Bund For Flood Prevention And Land Reclamation
4.Building Bund Wall For Fish And Shimp Ponds And Salt Making Industry
5.Sludge Clearing Of Lakes, Ponds And Water Reservoir
6.Digging Trenches For Oil And Gas Piping Installation
7.Transporting And Clearing Landslide And Flood Hit Area
8.Swamps And Wetlands Construction
9.Road Construction Through Wetlands.
| MODEL | E210A | E210A(15m) | |
| Operating weight (T) | 27(semi-full float) | 34(full float) | 28(semi-full float) |
| Bucket capacity (m3) | 0.8 | 0.5 | 0.5 |
| Engine model | Isuzu 4HK1X | Cummins QSB7.0/Isuzu 4HK1X | |
| Rated power (kw/r/min) | 133/2000 | 124/2000 | 133/2000 |
| Volume of fuel tank (L) | 420 | 420 | |
| Travel speed (km/h) | 4.3 | 4.3 | |
| Swing speed(r/min) | 11.7 | 11.7 | |
| Max climbing degree° | 30 | 30 | |
| Bucket digging force at power max (KN) ISO | 80 | 80 | |
| Arm digging force at power max (KN) ISO | 66 | 66 | |
| Average grounding pressure(KPA) | 11.5 | 15.5 | 11.5 |
| Force of Traction(KN) | 227 | 227 | |
| Hydraulic pump model | K3V112DT | K3V112DT | |
| Maximum flow (L/min) | 210X2 | 210X2 | |
| Setting pressure (MPa) | 34.3 | 34.3 | |
| Volume of hydraulic tank (L) | 246 | 246 | |
| A Overall length (mm) | 10650 | 11450 | |
| B Overall width (mm) | 4600 | 5260 | 4600 |
| C Overall height (to top of)(mm) | 3435 | 3650 | |
| D Overall height (to top of cab)(mm) | 3950 | 3950 | |
| E Counterweight ground clearance (mm) | 2040 | 2040 | |
| F Min. ground clearance (mm) | 1290 | 1290 | |
| G Tail swing radius (mm) | 2720 | 2720 | |
| H Track grounding length (mm) | |||
| J Track length (mm) | 7800 | 8540 | 7800 |
| K Track gauge(mm) | 3000 | 3650 | 3000 |
| L Track width (mm) | 1600 | 1830 | 1600 |
| M Track HIGHh (mm) | 1880 | 1850 | 1880 |
| N Turntable width (mm) | 2700 | 2700 | |
| O Max. digging height (mm) | 10165 | 13600 | |
| P Max. dumping height (mm) | 7450 | 11200 | |
| Q Max. digging depth (mm) | 5620 | 10700 | |
| R Max. vertical wall digging depth (mm) | |||
| T Max. digging reach (mm) | 9860 | 15100 | |
| U Max.digging reach at ground level (mm) | 9440 | 15000 | |
| V Min. swing radius (mm) | 3640 | 3640 | |
| W Max. height at min swing radius (mm) | 8565 | 10600 | |
| X Distance from swing center to rear (mm) | 2720 | 2870 | |
| Arm length (mm) | 2900 | 6300 | |
| length (mm) | 5700 | 8200 | |
| Max float force(T) | 22 | 34 | 22 |
| Number of chain rows | 2 | 3 | 2 |
| Max water depth(mm) | 1200 | 1500 | 1200 |

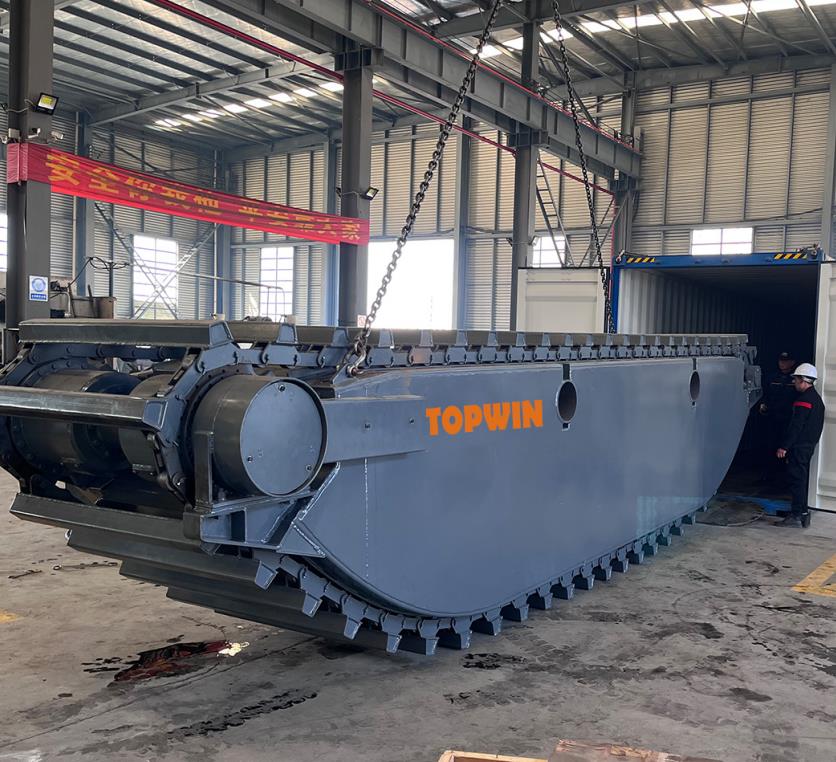

Our Factory
| Model | E60 |
| Operating weight | 5.82 |
| Bucket capacity | 0.22 |
| Engine model | YANMAR 4TNV98C |
| Rated power (kw) | 42.4 KW |
| Hydraulic pump model | KYB |
| Max.flow (L/min) | 160 |
| Working pressure (Mpa) | 24.5 |
| Control valve model | KYB |
| Swing motor model | INLINE |
| Travel motor model | EDDIE |
| Fuel tank capacity (L) | 125 |
| Hydraulic oil tank capacity (L) | 110 |
| Travel speed (km/h) | 2.5/4.0 |
| Swing speed (r/min) | 10 |
| Max. climbing degree (%) | 70 |
| Arm digging force | 26.1 |
| Bucket digging force (KN) | 36.7 |
| Average grounding pressure (Kpa) | 34 |
| A-Overall length (mm) | 5943 |
| B-Overall width (mm) | 2000 |
| C-Overall height (to top of boom)(mm) | 1995 |
| D-Overall height (to top of cab)(mm) | 2619 |
| E-Counterweight ground clearance(mm) | 740 |
| F-Min. ground clearance (mm) | 360 |
| G-Tail swing radius (mm) | 1745 |
| J-Track length (mm) | 2000 |
| J-Track length (mm) | 2665 |
| K-Track gauge (mm) | 1600 |
| L-Track width (mm) | 2000 |
| M-Track shoe width (mm) | 400 |
| N-Turntable width (mm) | 1790 |
| O-Max. digging height (mm) | 5889 |
| P-Max. dumping height (mm) | 4201 |
| Q-Max. digging depth (mm) | 3812 |
| R-Max. vertical wall digging depth (mm) | 3008 |
| T-Max. digging reach (mm) | 6257 |
| U-Max. digging reach at ground level (mm) | 6102 |
| V-Min. swing radius (mm) | 2585 |
| X-Distance between center of rotation and tail length (mm) | 1745 |
| Y-Track shoe thickness (mm) | 7 |
| Z-Height of counterweight (mm) | 1062 |
| A1-Ground length (in transportion)(mm) | 3375 |
| Arm length (mm) | 1580 |
| Boom length (mm) | 3050 |
