Floating Boom Excavator
Proprietary Multi-Synchronous Power Motor Design.Motors Are Set Up On The Front And Rear Of Every Pontoon.It Provides Most Desirable Monitoring Electricity As In Contrast To a Single Motor Design.A Comparable Thinking That Is Utilized To a Full Time 4x4 Equipment Device Of a Land
Product Description

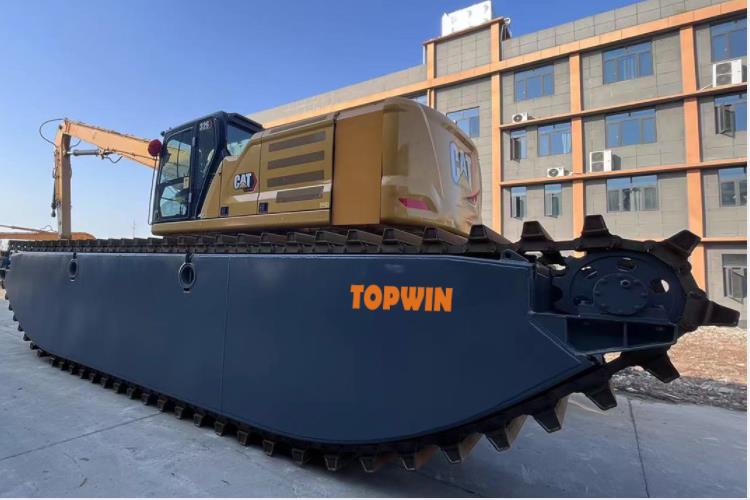

Amphibious Excavators Are Multi-Purpose Excavators Used In Land, Shallow Water, Marsh And Deep Water Areas. After Years Of Practical Testing, TOPWIN Amphibious Excavator Has Been Recognized And Trusted By The Majority Of Users. The Upper Half Structure Can Choose The Excavator Brand And All Kinds Of Machine You Need. Various Types Of Buoyancy Tank Have Been Designed And Widely Used, Which Can Be Adapted To 5-40 Ton Excavator, And Can Also Be Customized According To Your Working Conditions And Requirements, In Accordance With Your Exclusive Scheme.
| MODEL | E210A | E210A(15m) | |
| Operating weight (T) | 27(semi-full float) | 34(full float) | 28(semi-full float) |
| Bucket capacity (m3) | 0.8 | 0.5 | 0.5 |
| Engine model | Isuzu 4HK1X | Cummins QSB7.0/Isuzu 4HK1X | |
| Rated power (kw/r/min) | 133/2000 | 124/2000 | 133/2000 |
| Volume of fuel tank (L) | 420 | 420 | |
| Travel speed (km/h) | 4.3 | 4.3 | |
| Swing speed(r/min) | 11.7 | 11.7 | |
| Max climbing degree° | 30 | 30 | |
| Bucket digging force at power max (KN) ISO | 80 | 80 | |
| Arm digging force at power max (KN) ISO | 66 | 66 | |
| Average grounding pressure(KPA) | 11.5 | 15.5 | 11.5 |
| Force of Traction(KN) | 227 | 227 | |
| Hydraulic pump model | K3V112DT | K3V112DT | |
| Maximum flow (L/min) | 210X2 | 210X2 | |
| Setting pressure (MPa) | 34.3 | 34.3 | |
| Volume of hydraulic tank (L) | 246 | 246 | |
| A Overall length (mm) | 10650 | 11450 | |
| B Overall width (mm) | 4600 | 5260 | 4600 |
| C Overall height (to top of)(mm) | 3435 | 3650 | |
| D Overall height (to top of cab)(mm) | 3950 | 3950 | |
| E Counterweight ground clearance (mm) | 2040 | 2040 | |
| F Min. ground clearance (mm) | 1290 | 1290 | |
| G Tail swing radius (mm) | 2720 | 2720 | |
| H Track grounding length (mm) | |||
| J Track length (mm) | 7800 | 8540 | 7800 |
| K Track gauge(mm) | 3000 | 3650 | 3000 |
| L Track width (mm) | 1600 | 1830 | 1600 |
| M Track HIGHh (mm) | 1880 | 1850 | 1880 |
| N Turntable width (mm) | 2700 | 2700 | |
| O Max. digging height (mm) | 10165 | 13600 | |
| P Max. dumping height (mm) | 7450 | 11200 | |
| Q Max. digging depth (mm) | 5620 | 10700 | |
| R Max. vertical wall digging depth (mm) | |||
| T Max. digging reach (mm) | 9860 | 15100 | |
| U Max.digging reach at ground level (mm) | 9440 | 15000 | |
| V Min. swing radius (mm) | 3640 | 3640 | |
| W Max. height at min swing radius (mm) | 8565 | 10600 | |
| X Distance from swing center to rear (mm) | 2720 | 2870 | |
| Arm length (mm) | 2900 | 6300 | |
| length (mm) | 5700 | 8200 | |
| Max float force(T) | 22 | 34 | 22 |
| Number of chain rows | 2 | 3 | 2 |
| Max water depth(mm) | 1200 | 1500 | 1200 |
Our Factory
| Model | E60 |
| Operating weight | 5.82 |
| Bucket capacity | 0.22 |
| Engine model | YANMAR 4TNV98C |
| Rated power (kw) | 42.4 KW |
| Hydraulic pump model | KYB |
| Max.flow (L/min) | 160 |
| Working pressure (Mpa) | 24.5 |
| Control valve model | KYB |
| Swing motor model | INLINE |
| Travel motor model | EDDIE |
| Fuel tank capacity (L) | 125 |
| Hydraulic oil tank capacity (L) | 110 |
| Travel speed (km/h) | 2.5/4.0 |
| Swing speed (r/min) | 10 |
| Max. climbing degree (%) | 70 |
| Arm digging force | 26.1 |
| Bucket digging force (KN) | 36.7 |
| Average grounding pressure (Kpa) | 34 |
| A-Overall length (mm) | 5943 |
| B-Overall width (mm) | 2000 |
| C-Overall height (to top of boom)(mm) | 1995 |
| D-Overall height (to top of cab)(mm) | 2619 |
| E-Counterweight ground clearance(mm) | 740 |
| F-Min. ground clearance (mm) | 360 |
| G-Tail swing radius (mm) | 1745 |
| J-Track length (mm) | 2000 |
| J-Track length (mm) | 2665 |
| K-Track gauge (mm) | 1600 |
| L-Track width (mm) | 2000 |
| M-Track shoe width (mm) | 400 |
| N-Turntable width (mm) | 1790 |
| O-Max. digging height (mm) | 5889 |
| P-Max. dumping height (mm) | 4201 |
| Q-Max. digging depth (mm) | 3812 |
| R-Max. vertical wall digging depth (mm) | 3008 |
| T-Max. digging reach (mm) | 6257 |
| U-Max. digging reach at ground level (mm) | 6102 |
| V-Min. swing radius (mm) | 2585 |
| X-Distance between center of rotation and tail length (mm) | 1745 |
| Y-Track shoe thickness (mm) | 7 |
| Z-Height of counterweight (mm) | 1062 |
| A1-Ground length (in transportion)(mm) | 3375 |
| Arm length (mm) | 1580 |
| Boom length (mm) | 3050 |
