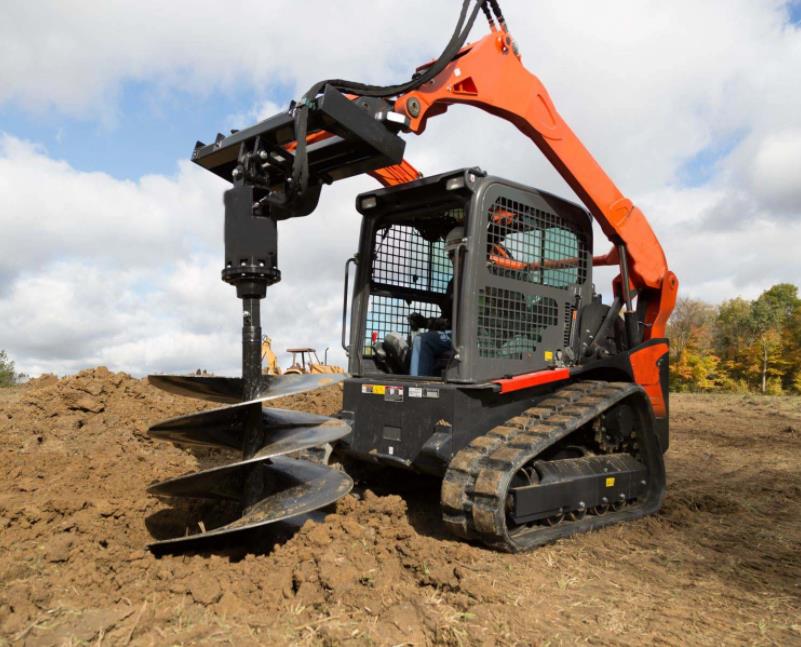

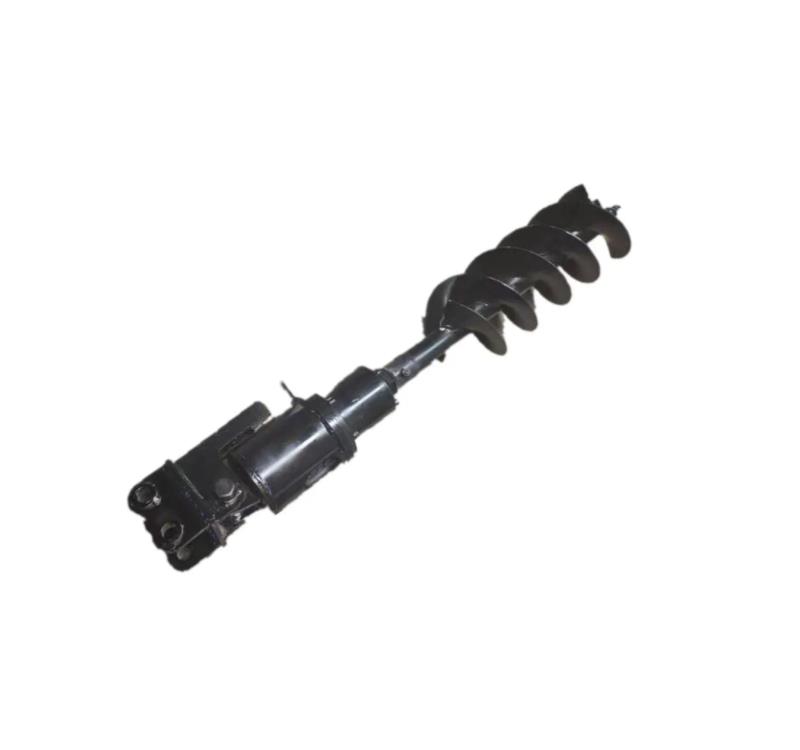

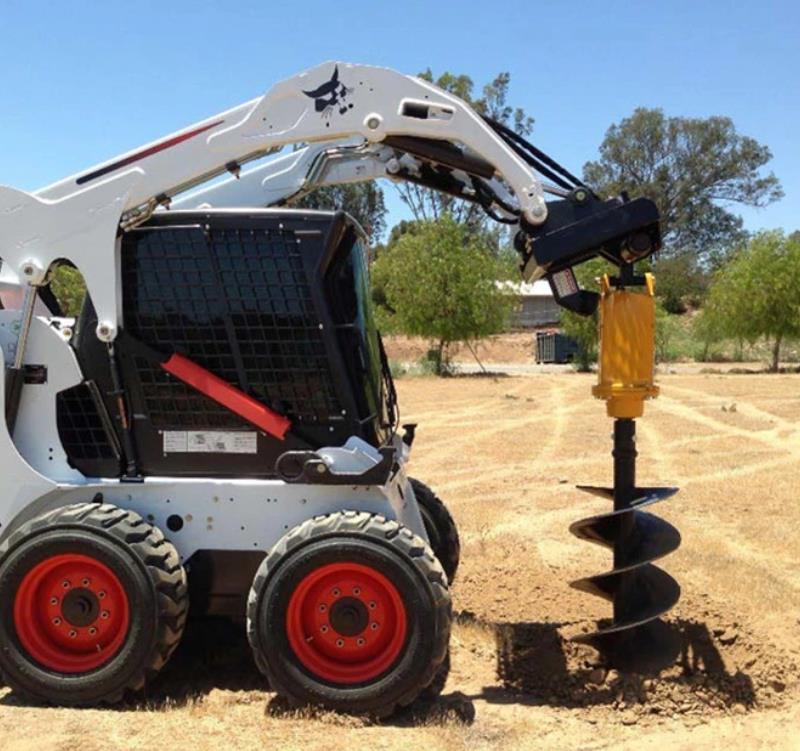

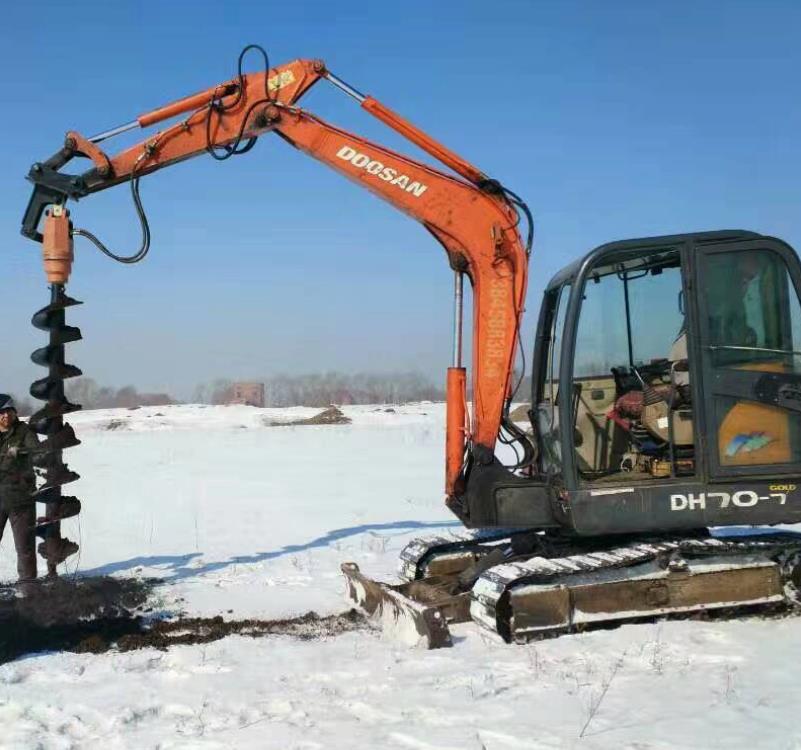

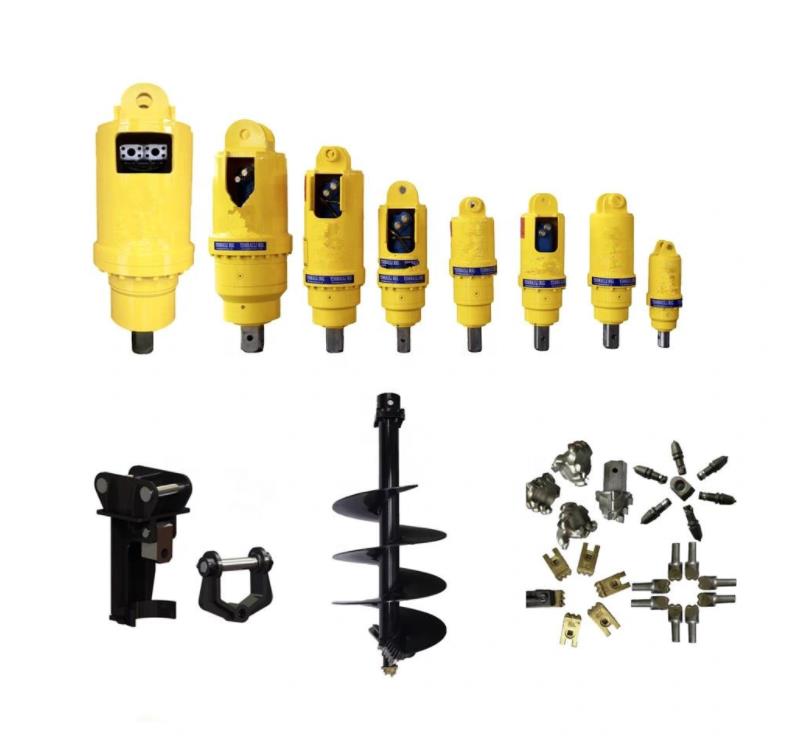

Earth Auger Digging Machine
Contact NowEarth Auger Application In Landscaping, Tree Planting, Well Boring, Foundation Piles, Screw Pile
Installations, Groundsource Heat Pumps, Pole And Mast Installations, Solar Energy Piling, Bridge Pier
Drilling Etc.
Model | Oil Folw | Max Torque | Pressure | Rotary Speed | Carrier | Oil Hose | Drill Dia. | |||
| gal./min | l/min | Lbf·Ft | N·M | Psi | Bar | Rpm | T | Inch | mm |
TEA2000 | 6-14 | 23-53 | 2537 | 1871 | 3000 | 205 | 40-92 | 1-2.5 | 1/2 | 100-400 |
TEA2500 | 8-16 | 30-61 | 3297 | 2432 | 3000 | 205 | 40-82 | 1.5-3 | 1/2 | 100-500 |
TEA3000 | 8-16 | 30-61 | 3900 | 2877 | 3500 | 240 | 40-81 | 2-3.5 | 1/2 | 100-600 |
TEA3500 | 8-18 | 30-68 | 4900 | 3614 | 3500 | 240 | 32-72 | 2.5-45 | 1/2 | 100-750 |
TEA4500 | 10-20 | 38-76 | 5719 | 4218 | 3500 | 240 | 32-64 | 3-5 | 1/2 | 100-900 |
TEA5000 | 10-20 | 38-76 | 6855 | 5056 | 3500 | 240 | 29-58 | 4.5-7 | 1/2 | 150-600 |
TEA5500 | 12-22 | 45-83 | 8012 | 5910 | 3500 | 240 | 28-50 | 5-7 | 1/2 | 150-750 |
TEA6000 | 12-28 | 45-106 | 8338 | 6150 | 3500 | 240 | 34-80 | 6-8 | 3/4 | 150-900 |
TEA7000 | 16-32 | 61-121 | 9397 | 6931 | 3500 | 240 | 37-72 | 7-10 | 3/4 | 150-900 |
TEA8000 | 16-36 | 61-136 | 10911 | 8048 | 3500 | 240 | 29-64 | 8-12 | 3/4 | 150-900 |
TEA10000 | 18-36 | 70-136 | 14612 | 10778 | 3500 | 240 | 26-45 | 10-13 | 3/4 | 150-900 |
| Model | E60 |
| Operating weight | 5.82 |
| Bucket capacity | 0.22 |
| Engine model | YANMAR 4TNV98C |
| Rated power (kw) | 42.4 KW |
| Hydraulic pump model | KYB |
| Max.flow (L/min) | 160 |
| Working pressure (Mpa) | 24.5 |
| Control valve model | KYB |
| Swing motor model | INLINE |
| Travel motor model | EDDIE |
| Fuel tank capacity (L) | 125 |
| Hydraulic oil tank capacity (L) | 110 |
| Travel speed (km/h) | 2.5/4.0 |
| Swing speed (r/min) | 10 |
| Max. climbing degree (%) | 70 |
| Arm digging force | 26.1 |
| Bucket digging force (KN) | 36.7 |
| Average grounding pressure (Kpa) | 34 |
| A-Overall length (mm) | 5943 |
| B-Overall width (mm) | 2000 |
| C-Overall height (to top of boom)(mm) | 1995 |
| D-Overall height (to top of cab)(mm) | 2619 |
| E-Counterweight ground clearance(mm) | 740 |
| F-Min. ground clearance (mm) | 360 |
| G-Tail swing radius (mm) | 1745 |
| J-Track length (mm) | 2000 |
| J-Track length (mm) | 2665 |
| K-Track gauge (mm) | 1600 |
| L-Track width (mm) | 2000 |
| M-Track shoe width (mm) | 400 |
| N-Turntable width (mm) | 1790 |
| O-Max. digging height (mm) | 5889 |
| P-Max. dumping height (mm) | 4201 |
| Q-Max. digging depth (mm) | 3812 |
| R-Max. vertical wall digging depth (mm) | 3008 |
| T-Max. digging reach (mm) | 6257 |
| U-Max. digging reach at ground level (mm) | 6102 |
| V-Min. swing radius (mm) | 2585 |
| X-Distance between center of rotation and tail length (mm) | 1745 |
| Y-Track shoe thickness (mm) | 7 |
| Z-Height of counterweight (mm) | 1062 |
| A1-Ground length (in transportion)(mm) | 3375 |
| Arm length (mm) | 1580 |
| Boom length (mm) | 3050 |
