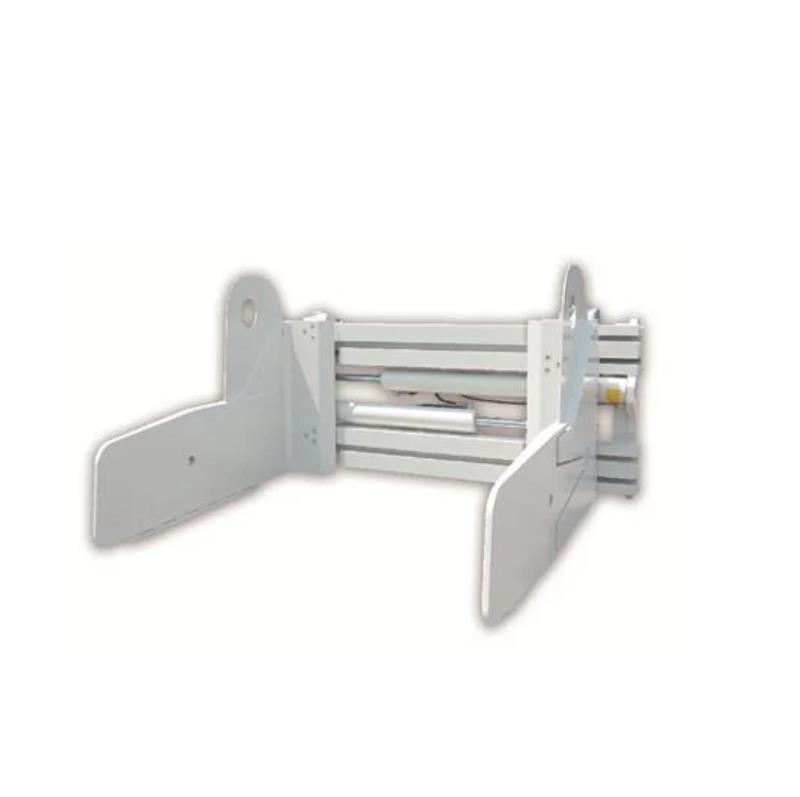

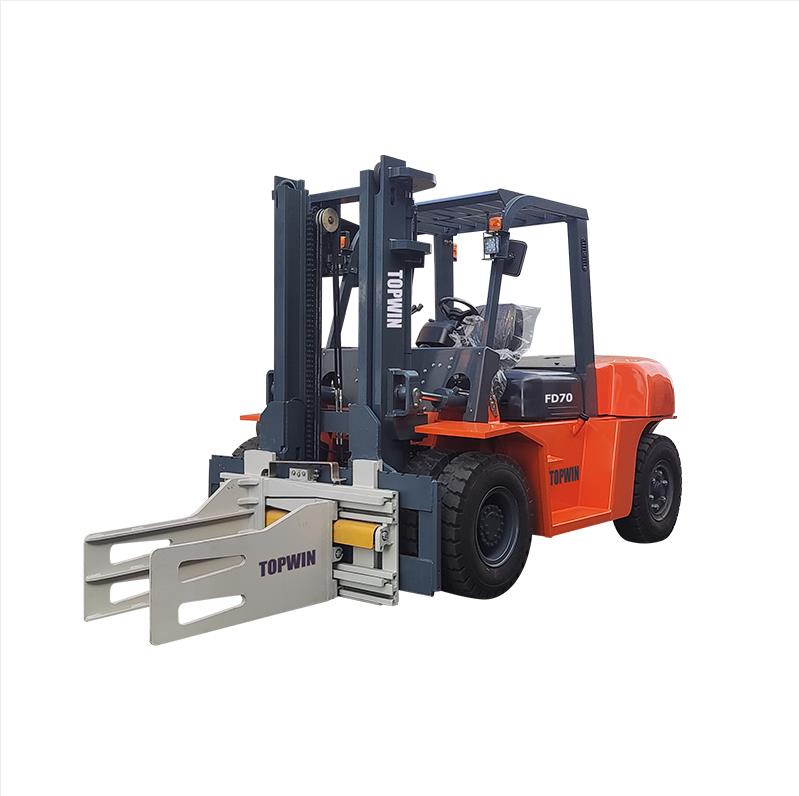

Bale Clamp For Forklifts

Forklift Part Attachment Revolving

Sideshifting Bale Clamps Sideshifter

for Heli Clark Mitsubishi Linder.

Contact Now

Product Details

Notes:

1. Please Acquire The Proper Complete Bearing Potential Of Forklift/Attachment From The Forklift Factory.

2. The Forklift Truck Wants To Add Two Corporations Of Oil Lines.

3. The Arm Thickness Is The Wanted Minimal Wedge Hole Measurement When Clamping, However Now Not The Actual Thickness.

Features:

1. Two-Way Hydraulic Locks For Rotating Oil Traces Make Certain Protection When Working.

2. High-Performance Alloy Metal Plates For Left And Proper Clamping Panels.

3. The Connection Blocks Are Integrally Charged With Appropriate Anti-Bending Performance.

4. 360 Levels Of Rotation.

5. Rotating Oil Hinge Has The Self-Locking Function.

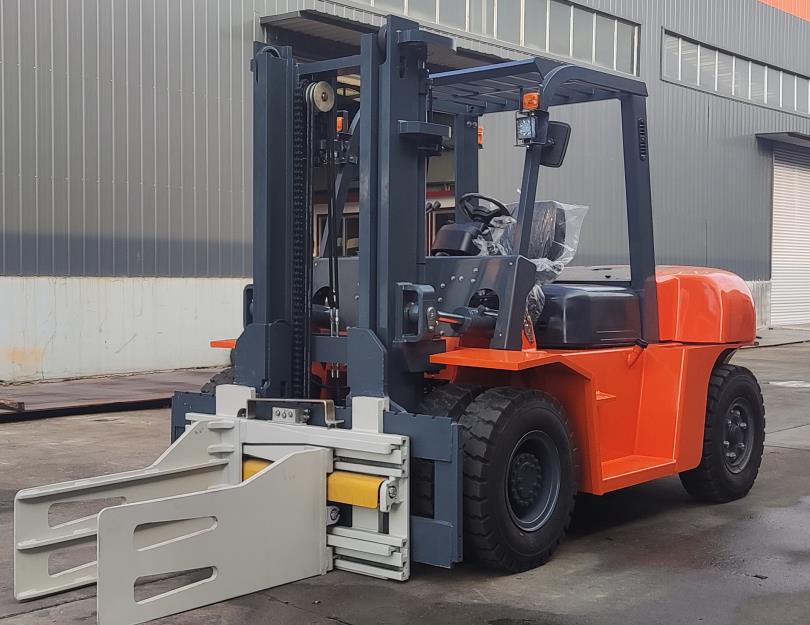

Bale Forklift

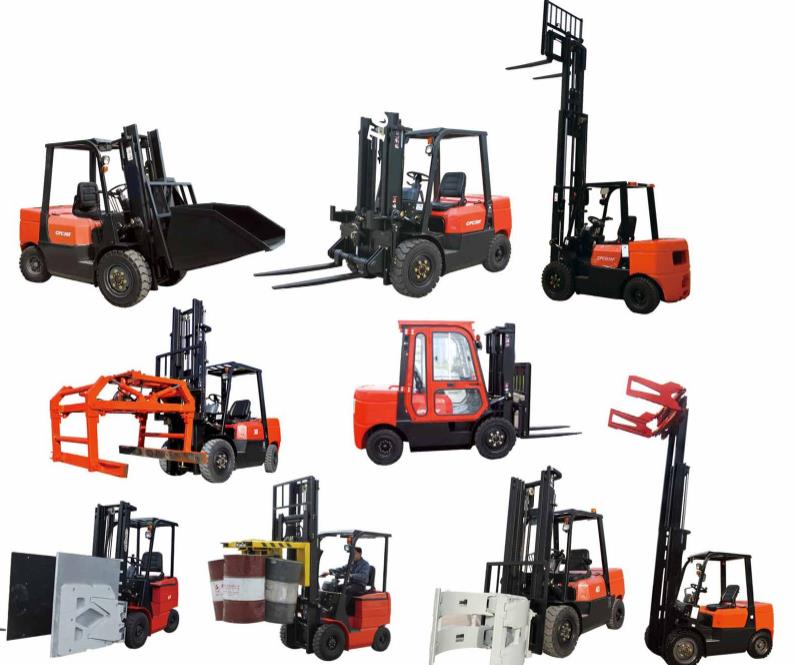

Forklift Attachments

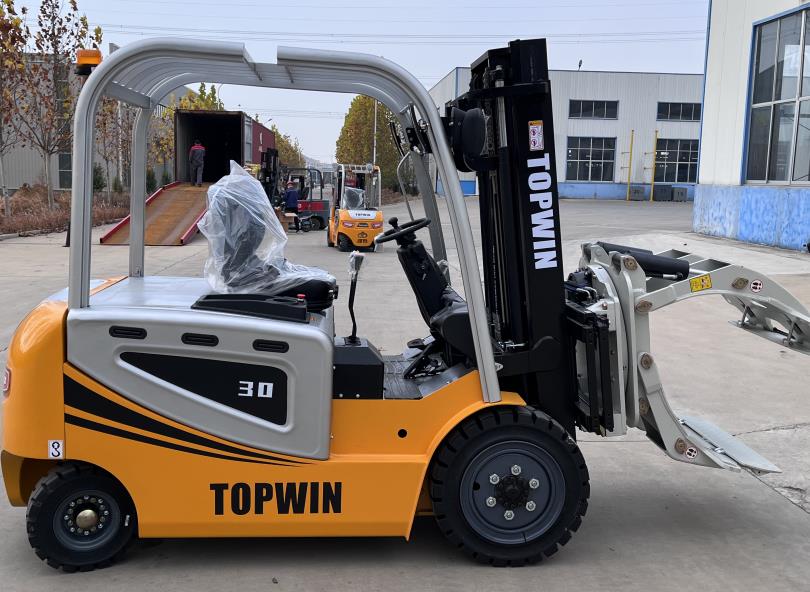

Carton clamps.jpg 3T Electric Forklift.jpg

General	Model		FD25
	Rated capacity	kg	2500
	Load center	mm	500
	Power type		Diesel
	Transmission		Hydraulic/Mechanical
Dimensions	Lifting height	mm	3000
	Free lifting height	mm	60
	Turning radius	mm	2450
	Overall length	mm	3605
	Overall width	mm	1160
	Overall height (mast lowered)	mm	2095
	Overall height (mast raised)	mm	4080
	Overall height (overhead guard)	mm	2095
	Fork length	mm	1070
	Fork width	mm	122
	Fork thickness	mm	40
Performance	Max. driving speed (with/without load)	km/h	17/19
	Max. lifting speed (with load)	mm/s	400
	Max. traction (with/without load)	kn	15/10
	Gradeability (with/without load)	%	15/20
	Tilting angles (forward/backward)	°	6/12
	Service weight	kg	3600
Engine	Engine model		490BPG
	Power	kw	37
	Rated speed	rpm	2500
Wheel	Front overhang	mm	451
	Wheel base	mm	1640
	Front tread	mm	970
	Rear tread	mm	970
	Front tire		7.00-12
	Rear tire		6.00-9
