Diesel Forklifts Is One Of The Most Reliable And Vigourous Workhorses In The Materials Handling World.
It Offers Wide Range Of Unit Loads And Is Especially Designed To Withstand Hours Of Work Outside.
It Is Fueled By Diesel Which Is Easily Acquirable And Straightfroward To Use.
This Forklifts Is Versatile In Any Environment Wet Or Dry.

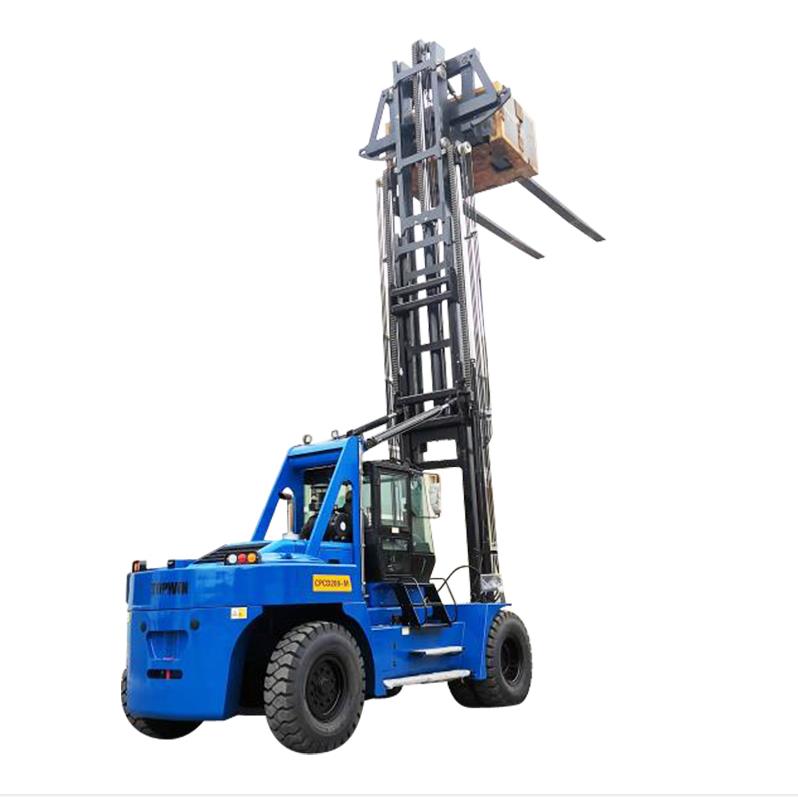

20T Heavy Duty Diesel Forklift Is Widely Used In Overseas Or Domestic Market.
We Have Many Optional Engines And Multiple Lifting Mast Height Available.
The Thicker Forklift Chassis Can Maintain Stability And Suitable Overload Under Special Circumstances.
Appropriate Hight Of Seats And Reasonable Pedal Space Can Effectively Reduce Driver Fatigue.
Adopting a New Exterior Design Method, The Whole Vehicle Has Smooth Lines,
Full Of Dynamics, And Conforms To The Trend Of Exterior Design.Hope To Better Meet Your Needs!
| Item | Unit | FM200(W200-10-4) | FM250(W250-12-4) | FM250(W250-15-6) | |
| Features | Rated Load/loader center/lifting height | kg/mm/m | 7600/4100/<=6m | 8700/4300/<=6m | 8700/4300/<=6m |
| Wheelbase | y(mm) | 4000 | 4400 | 4400 | |
| Weight | Weight | kg | 41000 | 43000 | 47000 |
| Chassis | Tyre Specs.:Front | / | 14.00-24-28PR | 14.00-24-32PR | 14.00-24-32PR |
| Tyre Specs.:Rear | / | 14.00-24-28PR | 14.00-24-32PR | 14.00-24-32PR | |
| Tyres Qty,front/rear(X-drive wheels) | / | 4\2 | 4\2 | 4\2 | |
| Wheel tread:Front | b10(mm) | 2200 | 2200 | 2200 | |
| Wheel tread:Rear | b11(mm) | 2390 | 2390 | 2390 | |
| Dimension | Mast/carriage tilt angle(front/rear) | Degree(°) | 3\6 | 3\6 | 3\6 |
| Mast height(fork lowering) | h1(mm) | 8400 | 9000 | 12000 | |
| Max. lifting height | h3(mm) | 10000 | 12000 | 15000 | |
| Max. Negative Lifting Height | mm | 4000 | 4000 | 6000 | |
| Height to head guard(height to cab) | h6(mm) | 4400 | 4400 | 4400 | |
| Overall leight(with forks) | l1(mm) | 12800 | 13700 | 13700 | |
| Overall width | b1/b2(mm) | 3050 | 3050 | 3050 | |
| Fork size | s/e(mm) | 6500X200X250 | 7000X200X250 | 7000X200X250 | |
| Fork carriage width | b3(mm) | 3500 | 3500 | 3500 | |
| Mast min ground clearance(with load) | m1(mm) | 300 | 300 | 350 | |
| Wheelbase center min ground clearance(with load) | m2(mm) | 400 | 400 | 400 | |
| Min.Turning radius | Wa(mm) | 6250 | 6250 | 6700 | |
| Travel speed(with load/without load) | km/h | 26/30 | 26/30 | 28/30 | |
| Performance | Max.lifting speed(with load/without load) | mm/s | 200/200 | 200/200 | 200/200 |
| Max.Lowering speed(with load/without load) | mm/s | 280/260 | 280/260 | 280/260 | |
| Traction | N | 16000 | 16000 | 17000 | |
| Gradeablity(with load/without load) | % | 20/21 | 20/21 | 20/21 | |
| Driving brake*standard | / | Hydraulic clamp disc brake | Hydraulic clamp disc brake | Hydraulic clamp disc brake | |
| Driving brake*optional | / | wet brake | wet brake | wet brake | |
| Engine | Brand | / | Cummins | Cummins | Cummins |
| Model | / | QSL9.3-C220 | QSL9.3-C220 | QSL9.3-C220 | |
| Rated load/speed | kW/rpm | 162/2200 | 162/2200 | 162/2200 | |
| Cylinder No. | / | 6 | 6 | 6 | |
| Others | Transmission gears(Front/rear)*standard | / | 2\1 | 2\1 | 2\1 |
| Transmission gears(Front/rear)*optional | / | 3\3 | 3\3 | 3\3 | |
| Attachments working pressure | bar | 160 | 160 | 160 | |
| Attachments using oil amount | l/min | 80 | 80 | 80 | |
| *The parameters are subject to change without prior notice. | |||||
| Items | Unit | FD200 | |
| Features | Rated Load | Q（t） | 20 |
| Load center | c（mm） | 1250 | |
| Wheelbase | y（mm） | 4000 | |
| Weight | kg | 32500 | |
| Chassis | Tyre Specs.:Front | 14.00-24-28PR | |
| Tyre Specs.:Rear | 14.00-24-28PR | ||
| Tyres Qty,front/rear(X-drive wheels) | 4\2 | ||
| Wheel tread:Front | b10（mm） | 2200 | |
| Wheel tread:Rear | b11（mm） | 2390 | |
| Dimension | Mast/carriage tilt angle(front/rear) | Degree（°） | 6\12 |
| Mast height(fork lowered) | h1（mm） | 3860 | |
| Max.lifting height | h3（mm） | 10000 | |
| Mast height(fork raised) | h4（mm） | 5610 | |
| Height to head guard(height to cab) | h6（mm） | 3510 | |
| Overall length(with forks) | l1（mm） | 8340 | |
| Fork front vertical surface to the rear end of the vehicle | l2（mm） | 6345 | |
| Overall width | b1/b2（mm） | 3050 | |
| Fork dimension | s/e（mm） | 2000X260X100 | |
| Fork carriage width | b3（mm） | 3050 | |
| Mast min ground clearance(with load) | m1（mm） | 300 | |
| Wheelbase center min ground clearance(with load) | m2（mm） | 420 | |
| Min.Turning radius | Wa（mm） | 6250 | |
| Travel speed(with load/without load) | km/h | 26/30 | |
| Performance | Max.lifting speed(with load/without load) | mm/s | 260/270 |
| Max.Lowering speed(with load/without load) | mm/s | 310/260 | |
| Traction | kN | 170 | |
| Gradeablity(with load/without load) | ％ | 20/22 | |
| Driving brake | Hydraulic clamp disc | ||
| Engine brand/model | Option one | Weichai engine | |
| Engine | WP10G220E343 9.726L 162KW 2000rpm | ||
| Option two | Guangxi Cummins | ||
| QSL9.3-C220 8.3L 160KW 2200rpm | |||
| Cylinder No. | 6 | ||
| Others | Transmission gears(Front/rear) | 2\1 | |
| Attachments working pressure | Mpa | 18 | |
| Attachments using oil amount | l/min | 80 | |
