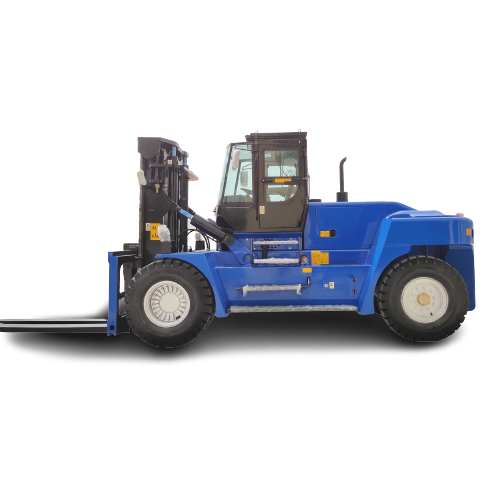

Forklift Boat Lift

20t Forklift
1200mm Load Center
Cummins Engine Qsl9.3-C220
Hydraulic Transmission With Electromagnetic Valve
Full Cab With Ac

Contact Now

Product Details

Joystick Control

6500mm Fork Length With Round Upper Surface And Rubber Cover
Two Stage Mast, 3.6m Negative And 10m Positive Lift
Pneumatic Tires(4/2)
Forks Can Be Opened By Hydraulic Cylinder
Load Sensor

Boat Forklift X2

Item		Unit	FM200(W200-10-4)	FM250(W250-12-4)	FM250(W250-15-6)
Features	Rated Load/loader center/lifting height	kg/mm/m	7600/4100/<=6m	8700/4300/<=6m	8700/4300/<=6m
Features	Wheelbase	y(mm)	4000	4400	4400
Weight	Weight	kg	41000	43000	47000
Chassis	Tyre Specs.:Front	/	14.00-24-28PR	14.00-24-32PR	14.00-24-32PR
	Tyre Specs.:Rear	/	14.00-24-28PR	14.00-24-32PR	14.00-24-32PR
	Tyres Qty,front/rear(X-drive wheels)	/	4\2	4\2	4\2
	Wheel tread:Front	b10(mm)	2200	2200	2200
	Wheel tread:Rear	b11(mm)	2390	2390	2390
Dimension	Mast/carriage tilt angle(front/rear)	Degree(°)	3\6	3\6	3\6
	Mast height(fork lowering)	h1(mm)	8400	9000	12000
	Max. lifting height	h3(mm)	10000	12000	15000
	Max. Negative Lifting Height	mm	4000	4000	6000
	Height to head guard(height to cab)	h6(mm)	4400	4400	4400
	Overall leight(with forks)	l1(mm)	12800	13700	13700
	Overall width	b1/b2(mm)	3050	3050	3050
	Fork size	s/e(mm)	6500X200X250	7000X200X250	7000X200X250
	Fork carriage width	b3(mm)	3500	3500	3500
	Mast min ground clearance(with load)	m1(mm)	300	300	350
	Wheelbase center min ground clearance(with load)	m2(mm)	400	400	400
	Min.Turning radius	Wa(mm)	6250	6250	6700
	Travel speed(with load/without load)	km/h	26/30	26/30	28/30
Performance	Max.lifting speed(with load/without load)	mm/s	200/200	200/200	200/200
	Max.Lowering speed(with load/without load)	mm/s	280/260	280/260	280/260
	Traction	N	16000	16000	17000
	Gradeablity(with load/without load)	%	20/21	20/21	20/21
	Driving brake*standard	/	Hydraulic clamp disc brake	Hydraulic clamp disc brake	Hydraulic clamp disc brake
	Driving brake*optional	/	wet brake	wet brake	wet brake
Engine	Brand	/	Cummins	Cummins	Cummins
	Model	/	QSL9.3-C220	QSL9.3-C220	QSL9.3-C220
	Rated load/speed	kW/rpm	162/2200	162/2200	162/2200
	Cylinder No.	/	6	6	6
Others	Transmission gears(Front/rear)*standard	/	2\1	2\1	2\1
	Transmission gears(Front/rear)*optional	/	3\3	3\3	3\3
	Attachments working pressure	bar	160	160	160
	Attachments using oil amount	l/min	80	80	80
*The parameters are subject to change without prior notice.

Items		Unit	FD200
Features	Rated Load	Q（t）	20
	Load center	c（mm）	1250
	Wheelbase	y（mm）	4000
	Weight	kg	32500
Chassis	Tyre Specs.:Front		14.00-24-28PR
	Tyre Specs.:Rear		14.00-24-28PR
	Tyres Qty,front/rear(X-drive wheels)		4\2
	Wheel tread:Front	b10（mm）	2200
	Wheel tread:Rear	b11（mm）	2390
Dimension	Mast/carriage tilt angle(front/rear)	Degree（°）	6\12
	Mast height(fork lowered)	h1（mm）	3860
	Max.lifting height	h3（mm）	10000
	Mast height(fork raised)	h4（mm）	5610
	Height to head guard(height to cab)	h6（mm）	3510
	Overall length(with forks)	l1（mm）	8340
	Fork front vertical surface to the rear end of the vehicle	l2（mm）	6345
	Overall width	b1/b2（mm）	3050
	Fork dimension	s/e（mm）	2000X260X100
	Fork carriage width	b3（mm）	3050
	Mast min ground clearance(with load)	m1（mm）	300
	Wheelbase center min ground clearance(with load)	m2（mm）	420
	Min.Turning radius	Wa（mm）	6250
	Travel speed(with load/without load)	km/h	26/30
Performance	Max.lifting speed(with load/without load)	mm/s	260/270
	Max.Lowering speed(with load/without load)	mm/s	310/260
	Traction	kN	170
	Gradeablity(with load/without load)	％	20/22
	Driving brake		Hydraulic clamp disc
	Engine brand/model	Option one	Weichai engine
Engine			WP10G220E343 9.726L 162KW 2000rpm
		Option two	Guangxi Cummins
			QSL9.3-C220 8.3L 160KW 2200rpm
		Cylinder No.	6
Others	Transmission gears(Front/rear)		2\1
	Attachments working pressure	Mpa	18
	Attachments using oil amount	l/min	80
