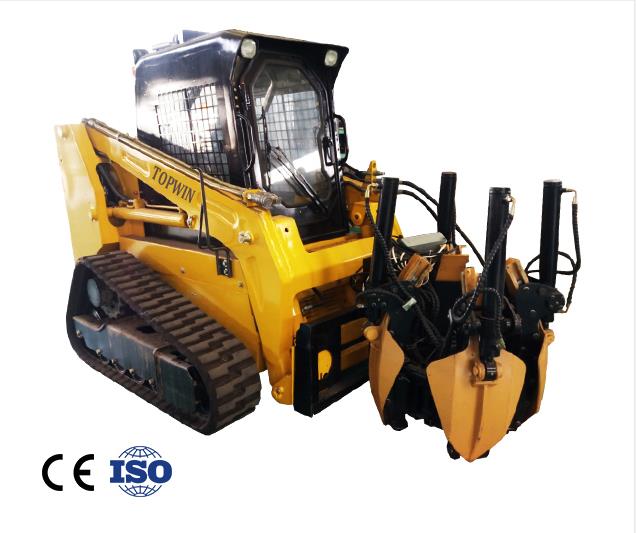

75 Hp Skid Steer With Snow Blower And Tree Shear
Standard Controls Consist Of Power Assist
Powerful Hydraulic Overall Performance
Unmatched Versatility With Extra Than Forty Attachments
Premium Remedy
High Visibility
Advantages Of Loader: Guide Multi-Function Operation, Quick Attachment Of Accessories, Excavation, Crushing, Trench Cleaning, Drilling And Bulldozing;
Warranty Period: Inside One Yr After Transport / 2000 Working Hours, If There Is Any High-Quality Problem, We Will Supply You With Add-Ons For Free.
Provide Custom-Made Services, Your Distinctive Purchasing Agent, Personalised Purchase, You Are Born Exclusive From Others!
Skid Steer Loader Specifications
| tem | Model | TWSS65 | TWSS100 |
| 1 | Operating load (kg) | 1000 | 1200 |
| 2 | Max Speed(km/h) | 12/18 | 12/18 |
| 3 | Rated flux (L/min) | 75 | 88 |
| 4 | Tire(track) model | 320X84 | 320X84 |
| 5 | Rated power (kW/HP) | 55/75 | 74/100 |
| 6 | Fuel tank capacity (L) | 80 | 90 |
| 7 | Self weight bucket (kg) | 3800 | 4500 |
| 8 | Bucket capacity (m 3 ) | 0.5 | 0.55 |
| A | Overall operating height (mm) | 3480 | 4070 |
| B | Height to bucket hinge pin (mm) | 2900 | 3150 |
| C | height to top of cab (mm) | 2150 | 2160 |
| D | Height to bottom of level bucket(mm) | 2730 | 2983 |
| E | Overall length without bucket(mm) | 2750 | 3000 |
| F | Overall length with bucket(mm) | 3500 | 3700 |
| G | Dumping angle at maximum height(° ) | 40 | 40 |
| H | Dumping height(mm) | 2230 | 2450 |
| I | Dumping reach(mm) | 715 | 700 |
| J | Rollback o bucket on ground(° ) | 30 | 30 |
| K | Rollback of bucket at full height(° ) | 104 | 104 |
| L | Wheelbase(mm) | 1500 | 1500 |
| M | Ground clearance(mm) | 200 | 200 |
| N | Angle of departure(° ) | 20 | 20 |
| O | Front turning radius without bucket(mm) | 1298 | 1365 |
| P | Front tuning radius(mm) | 2010 | 2200 |
| Q | Rear tuning radius(mm) | 1714 | 1742 |
| R | Rear axle to bumper (mm) | 890 | 938 |
| S | Tread width, centerline to centerline (mm) | 1462 | 1654 |
| T | Width (mm) | 1782 | 1994 |
| U | Bucket width (mm) | 1830 | 2030 |
Product Details

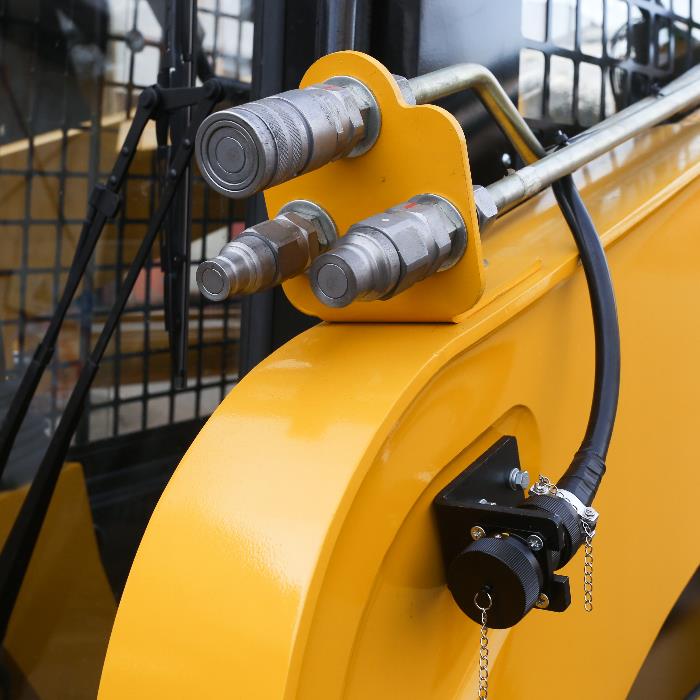

Skid Steer Hydraulic Connector Skid Steer Loader Cabin Skid Steer Loader Radiator
Skid Steer Loader Panel Skid Steer Loader Pilot Lever Skid Steer Loader Quick Hitch

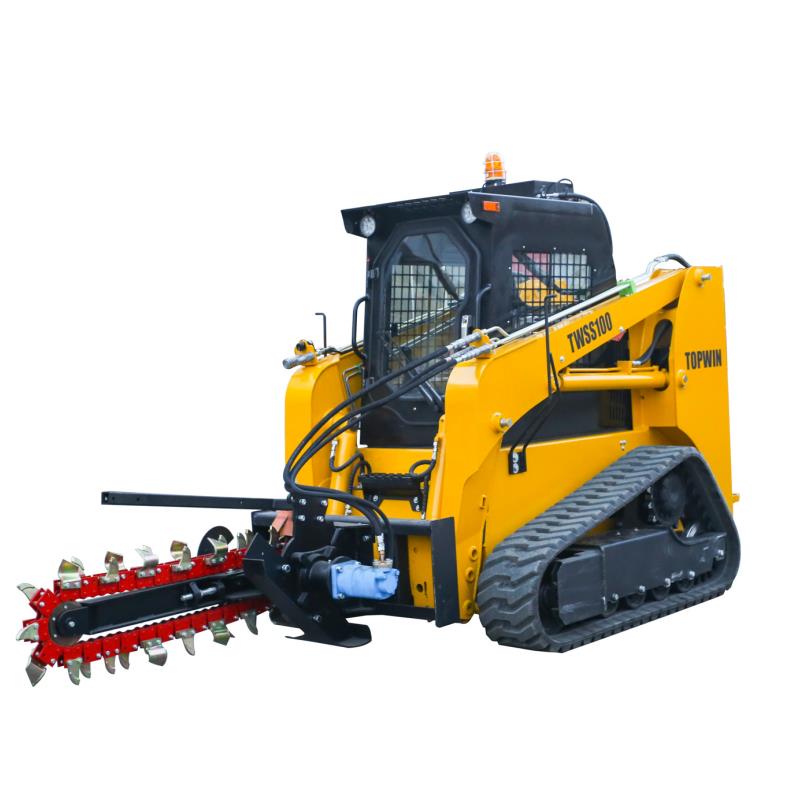

Skid Steer Loader Attachments
Company Profile
Shandong Topwin Machinery Co.,Ltd. (Topwin For Short) Is The One-Stop Solution Provider For Construction Machinery, Mining Machinery, Agricultural Machinery And Logistic Machinery In China.
tem | Model | TWS35 | TWS45G | TWS60G | TWS65B | TWS100 | TWSS65 | TWSS100 |
1 | Operating load (kg) | 500 | 700 | 850 | 950 | 1200 | 1000 | 1200 |
2 | Max Speed(km/h) | 10 | 12 | 12 | 12 | 12/18 | 12/18 | 12/18 |
3 | Rated flux (L/min) | 60 | 75 | 75 | 80 | 80 | 75 | 88 |
4 | Tire(track) model | 8.5-15 | 10-16.5 | 12-16.5 | 12-16.5 | 12-16.5 | 320X84 | 320X84 |
5 | Rated power (kW/HP) | 29.5/40 | 37/50 | 45/61 | 55/75 | 74/100 | 55/75 | 74/100 |
6 | Fuel tank capacity (L) | 60 | 65 | 80 | 75 | 90 | 80 | 90 |
7 | Self weight bucket (kg) | 2300 | 3000 | 3200 | 3350 | 3550 | 3800 | 4500 |
8 | Bucket capacity (m 3 ) | 0.3 | 0.4 | 0.5 | 0.5 | 0.55 | 0.5 | 0.55 |
A | Overall operating height (mm) | 3300 | 3980 | 4000 | 4000 | 4070 | 3480 | 4070 |
B | Height to bucket hinge pin (mm) | 2725 | 3080 | 3100 | 3100 | 3150 | 2900 | 3150 |
C | height to top of cab (mm) | 2000 | 2140 | 2160 | 2160 | 2160 | 2150 | 2160 |
D | Height to bottom of level bucket(mm) | 2558 | 2913 | 2933 | 2933 | 2983 | 2730 | 2983 |
E | Overall length without bucket(mm) | 2300 | 2640 | 2750 | 2750 | 2880 | 2750 | 3000 |
F | Overall length with bucket(mm) | 3080 | 3420 | 3490 | 3490 | 3580 | 3500 | 3700 |
G | Dumping angle at maximum height(° ) | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
H | Dumping height(mm) | 2050 | 2380 | 2400 | 2400 | 2450 | 2230 | 2450 |
I | Dumping reach(mm) | 790 | 700 | 750 | 750 | 700 | 715 | 700 |
J | Rollback o bucket on ground(° ) | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
K | Rollback of bucket at full height(° ) | 104 | 104 | 104 | 104 | 104 | 104 | 104 |
L | Wheelbase(mm) | 897 | 991 | 991 | 1085 | 1185 | 1500 | 1500 |
M | Ground clearance(mm) | 140 | 185 | 205 | 205 | 205 | 200 | 200 |
N | Angle of departure(° ) | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
O | Front turning radius without bucket(mm) | 1098 | 1168 | 1198 | 1204 | 1278 | 1298 | 1365 |
P | Front tuning radius(mm) | 1760 | 1958 | 1958 | 2030 | 2144 | 2010 | 2200 |
Q | Rear tuning radius(mm) | 1296 | 1630 | 1728 | 1706 | 1857 | 1714 | 1742 |
R | Rear axle to bumper (mm) | 964 | 1108 | 1208 | 1082 | 1082 | 890 | 938 |
S | Tread width, centerline to centerline (mm) | 1080 | 1450 | 1500 | 1500 | 1500 | 1462 | 1654 |
T | Width (mm) | 1350 | 1720 | 1880 | 1880 | 1880 | 1782 | 1994 |
U | Bucket width (mm) | 1400 | 1740 | 1880 | 1880 | 1880 | 1830 | 2030 |
